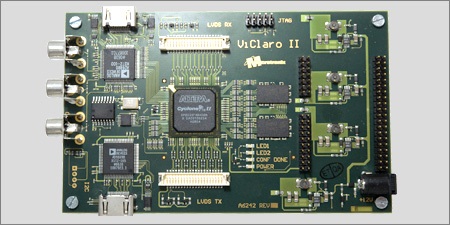

ViClaro II HD Video Enhancement Dev Platform
Features Altera EP2C35 Cyclone II 32-bit DDR2 SDRAM Memory HDMI Transmitter / Receiver Analog / Video Receiver Dual LVDS Links Supports 720p / 1080i / 1080p 50/60 Hz HDTV Overview The Microtronix ViClaro II HD Video Enhancement Development Platform is targetted at the development of consumer HD video d

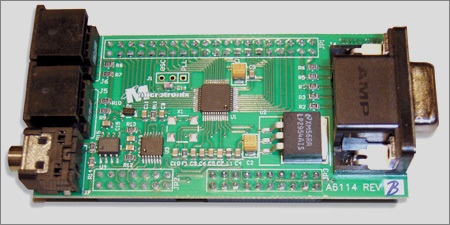

Lancelot VGA Controller IP Design Kit
Overview Display resolutions: 640 x 480, 800 x 600, 1024 x 768 Displays up to 24-bit color 900 LE's Video & audio development board VGA IP Core reference design & demo Compatible with Microtronix Multi-port SDRAM IP Core Microtronix is proud to offer the innovative Lancelot VGA IP Design Kit sol

SDI-ASI Video-over-IP Development Kit, featuring Altera Stratix III FPGA
Target Applications Bridging of DBV-ASI sources using video-over-IP SDI video cameras Remote monitoring of a DBV-ASI TS using video-over-IP Digital Video Recorder's Video switches Video editing systems Overview Microtronix bundles an HDMI Receiver/Transmitter Daughter Card, a Triple-rate SDI card and a

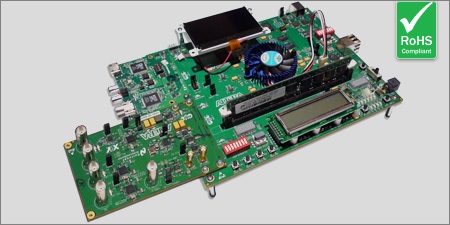

3G-SDI Broadcast IP Development Kit, featuring Altera Stratix III FPGA
Target Broadcast Applications Video cameras Digital Video Recorder's Video switches Video editing systems Overview Microtronix bundles an HDMI Transmitter/Receiver board, an Triple-rate SDI card and a suite of Quartus II Reference Designs with the Altera Stratix 3SL150 Development Kit to provide a complete

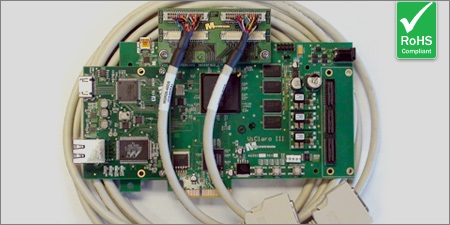

ViClaro III Camera Link Development Kit
Features Camera Link Transceiver IP Core supporting: Standard Base, Medium & Full Channel Link interfaces 8, 10, and 12-bit video resolutions Transmission clock rates to 85 MHz. Bi-directional serial Camera Link communication Configuration GUI streamlines design process Software source code sup

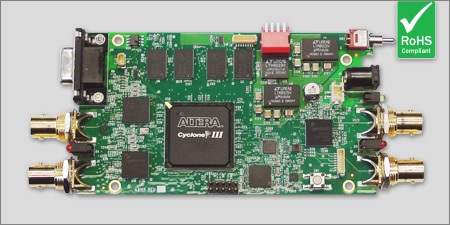

Dual Input HD-SDI Switcher Design Kit
Key Hardware Features Altera EP3C120 Cyclone™ III FPGA Two Gennum GS2961 3G/HD/SD-SDI SDI Receivers One Gennum GS491B HD/SD/Graphics Clock and Timing Generator with GENLOCK One Gennum GS2962 3G/HD/SD-SDI Serializer One Analog Devices AD7393 SD/HD Video Encoder Two HD/SD-SDI inputs (75Ω BNC) One HD/SD

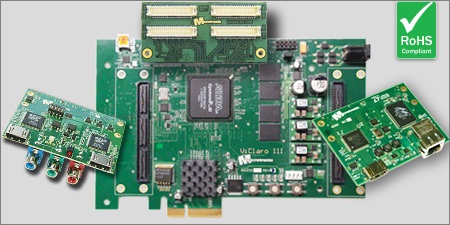

ViClaro III HD Video IP Development Kit
    Overview The ViClaro III HD Video IP Development Kit is a versatile video and image processing IP development platform. Designed in conjunction with Altera®, the ViClaro III Video Host Board contains a Cyclone III FPGA, USB 2.0 PHY, 4-lane PCIe PHY, 64-bit DDR2 memory, two HSMC connectors and one de

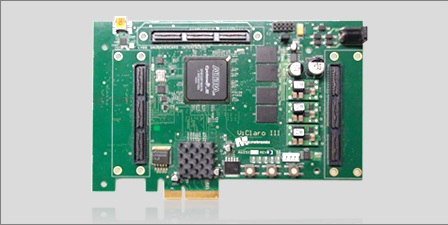

ViClaro III Video Host Board
    Overview The ViClaro III Video Host Board provides a high data bandwidth Cyclone III host development platform for building HD video applications. By supporting 256MB of DDR2 memory with a 64-bit DDR2 memory bus, it provides the data bandwidth required to support video resolutions to 1080p at 120 Hz.
