Quad Link LVDS Interface HSMC Daughter Card
Features Optimized for video applications Single core provides both LVDS transmitter and receiver functions Support for both 28-bit and 35-bit parallel data Supports 1, 2 and 4 link configurations No transmit PLL clock fine tuning required Overview The Quad Link LVDS Interface HSMC Daughter Card supports rec

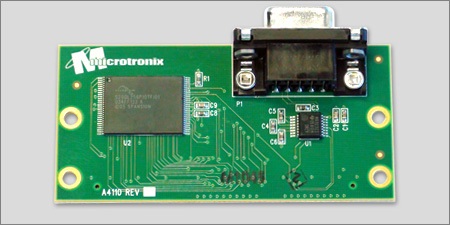

32 MB Flash, Serial Port HSMC Daughter Card
Key Hardware Features 256 Mbit x8/16 bit Flash DB9 RS-232 DCE serial control port     Overview The Microtronix HSMC 32 MB Flash / Serial Port Daughter Card provides 32 Mbytes of 8/16-bit Flash memory and a DB9 RS-232 DCE serial port for the development of embedded Nios¢â II applications.  The b

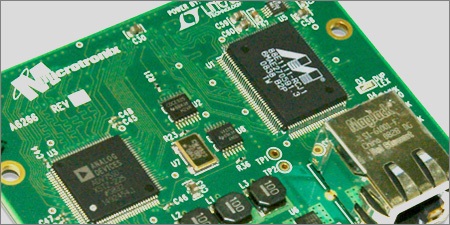

Gigabit Ethernet PHY-HDMI Transmitter HSMC Daughter Card
Features Ethernet Triple Speed PHY Deep Color HMDI 1.3 Transmitter HSMC compatible daughter card Overview The Microtronix Gigabit Ethernet PHY and HDMI Transmitter HSMC Daughter Card adds functionality to the ViClaro III, the Altera EP3C120 Development Kit or other third party FPGA development boards with a HS

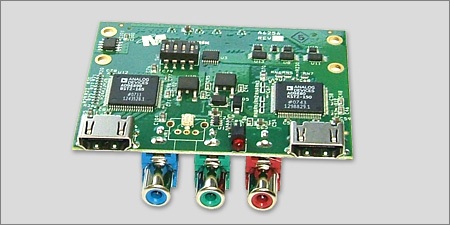

HDMI Receiver, Transmitter HSMC Daughter Card
Features HDMI Transmitter / Receiver Analog YCrCb Video Receiver Supports 480i / 720p / 1080i / 1080p @ 50/60 Hz EDID data reading / writing Auto detection of monitor through Hot-Plug Altera compatible HSMC expansion connector HD video reference design Overview The Microtronix HDMI Receiver / Transm

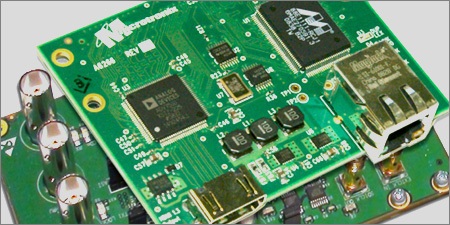

Video Over IP Add-on Kit
Target Broadcast Applications SDI video cameras Bridging of DBV-ASI sources using video-over-IP Remote monitoring of a DBV-ASI TS using video-over-IP Digital Video Recorder's Video switches Video editing systems Overview Microtronix bundles a Gigabit Ethernet PHY / HDMI 1.3 Transmitter HSMC Daughtercard, Na

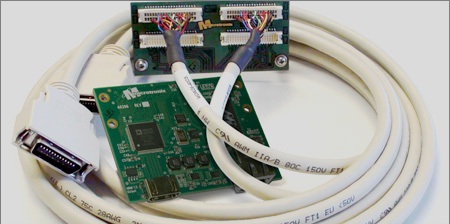

Camera Link Design Kit
Features Camera Link Transceiver IP Core supporting: Standard Base, Medium & Full Channel Link interfaces 8, 10, and 12-bit video resolutions Transmission clock rates to 85 MHz. Bi-directional serial Camera Link communication Configuration GUI streamlines design process Software dll for Camera Li
