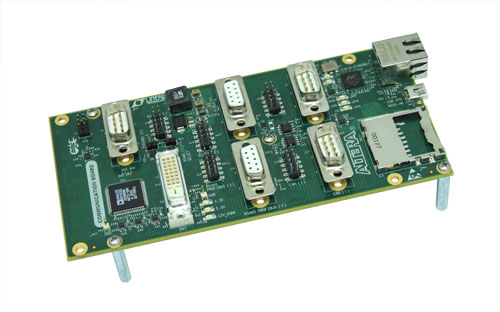

HSMC Communication Card
The HSMC Communication card adds key interfaces to support a wide range of industrial, image processing, scientific and measurement requirements. From 10/100/1000 Ethernet PHY, to CAN, RS232, RS485, the HSMC Communication card can quickly get you started with your designs. Also included is a digital DVI transmitter

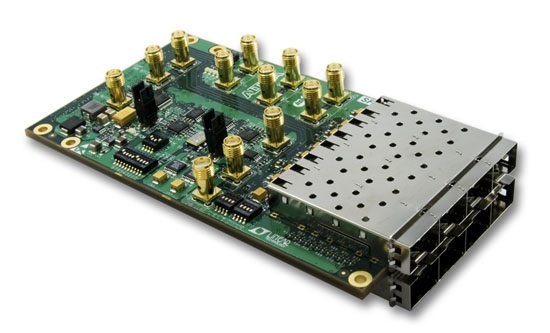

SFP-HSMC Card
The Small Form-Factor Pluggable (SFP) HSMC board provides a hardware platform for evaluating the interoperation of Altera FPGA, specifically Stratix IV GX, Arria GX, and Arria IIGX, with generic SFP modules. The optical modules that are of particular importance are SGMII Ethernet, Fiber channel, CPRI/OBSAI, and SONET

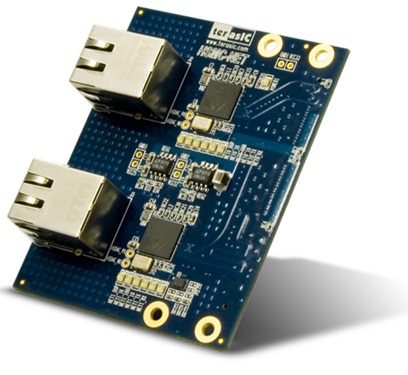

ETHERNET-HSMC Card
The Terasic HSMC-NET is a Gigabit Ethernet transceiver with a High Speed Mezzanine Connector (HSMC) interface. It offers network transfers of up to 1 Gbps with the host board using a HSMC connector. Also, it provides a fully integrated Ethernet solution enabling fast implementation design, shortening development time

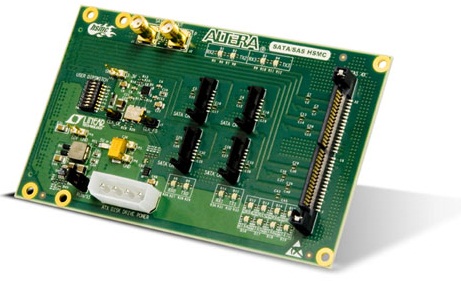

SATA/SAS HSMC Card
The SATA/SAS Daughter Card is designed to provide SATA interface conversion for FPGA platforms that support SAS and SATA solutions based on the latest 40-nm technology through a High-Speed Mezzanine Connector (HSMC). It allows users to access storage devices through the SATA/SAS protocols on an FPGA specifically the

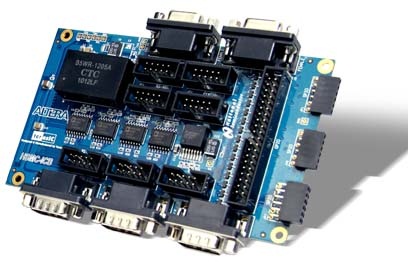

Altera ICB-HSMC
The Industrial Communication Board (ICB-HSMC) is designed specifically to support industrial communication that includes RS232, RS485, and CAN (Controller Area Network) via High-Speed Mezzanine Card (HSMC). Digital communication networks implement field bus protocols based on serial communication protocol standards f

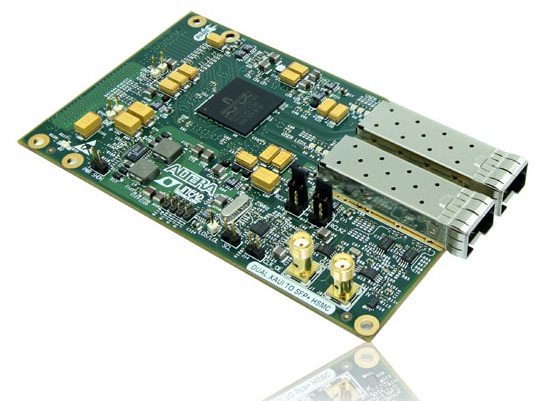

DUAL XAUI TO SFP+ HSMC BOARD
Two independent XAUI interfaces from the HSMC to the BCM8727 Two independent SFI interfaces from the BCM8727 to SFP+ cages MDIO interfaces I2C EEPROM for HSMC identification and user data Si5334C clock generator 156.25MHz reference available on SMA connectors and through the HSMC connector 4 user bi-col
