8 Mega Pixel Digital Camera Package with FMC interface
Terasic D8M-FMC is a 8-megapixel camera kit with a FMC low pin count connector interface. It includes a MIPI camera module, MIPI decoder, and HDMI-TX.The MIPI camera module captures image and sends it out in a MIPI video signal package. This packet is conve



VEEK-MT-SoCKit Upgrade Kit
* If you don't have a SoCKit board already, please check out our   VEEK-MT-SoCKit.The Video and Embedded Evaluation Kit - Multi-Touch for SoCKit Upgrade Kit( VEEK-MT-SoCKit Upgrade Kit ) offers customers who already own a SoCKit board a brand new integrated platform to develop various embedded applicatio

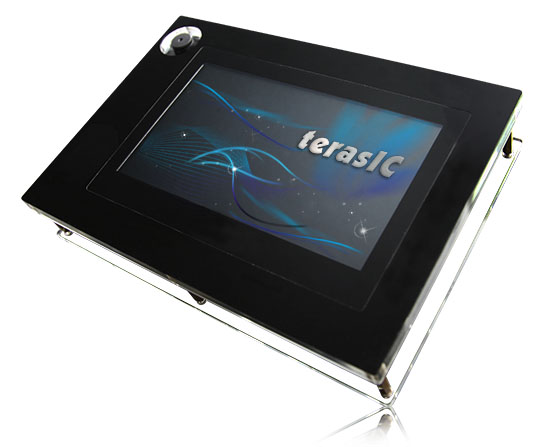

Multi-Touch LCD Module Second Edition (MTL2)
The Terasic Multi-Touch LCD Module Second Edition (MTL2) is an all-purpose capacitive touch-screen for your FPGA applications. It provides 5-point Multi-Touch support and a 7" color display LCD with 800x480 resolution. An IDE cable with an IDE-to-GPIO adapter (ITG) is provided in the kit to interface MTL2 with various

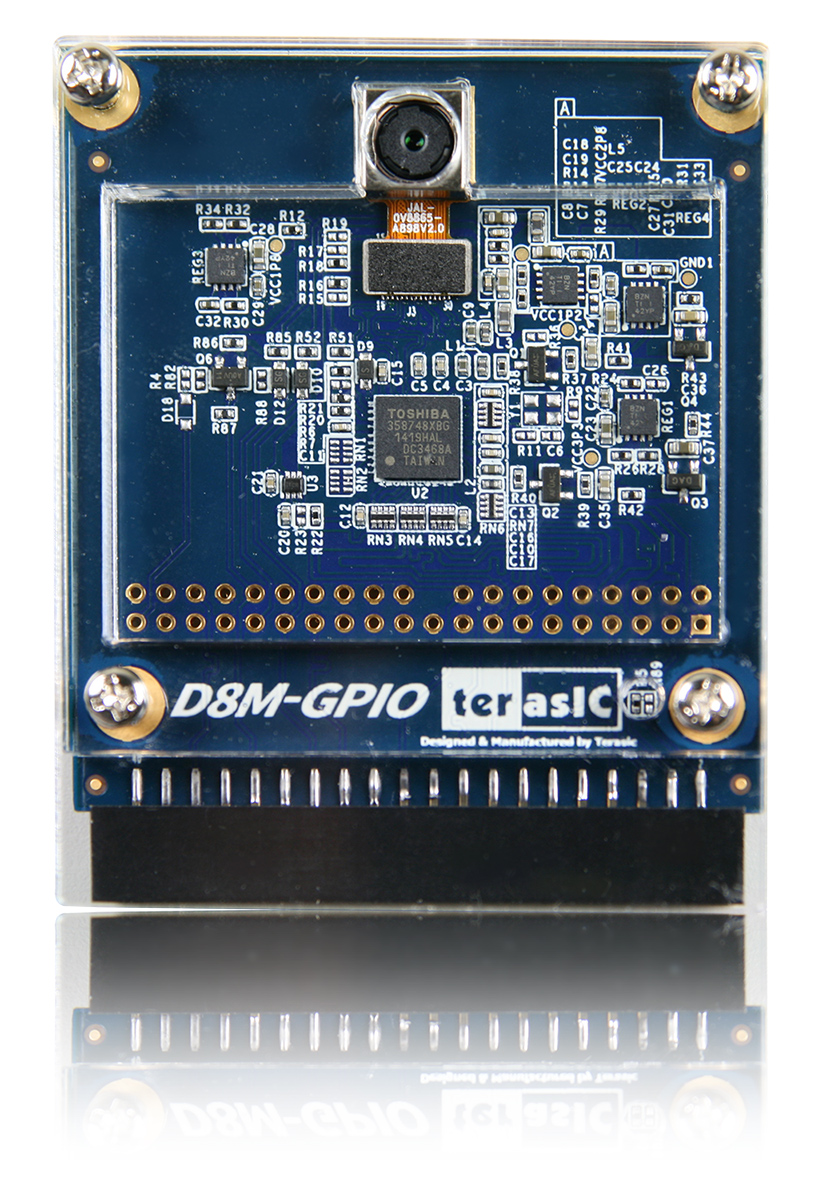

8 Mega Pixel Digital Camera Package
Terasic D8M-GPIO is an 8-megapixel camera kit with a 2x20 pin GPIO connector interface. It includes a MIPI camera module and MIPI decoder. The MIPI camera module captures image and sends it out in a MIPI video signal package. This packet is converted in a 10-bit pa

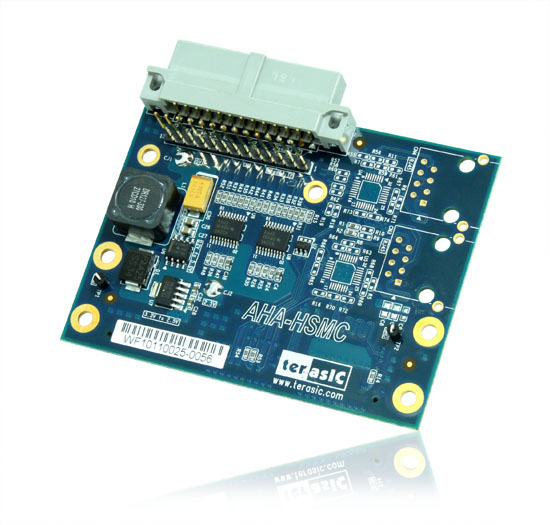

Aptina Sensor Adapter Card (AHA-HSMC)
The AHA-HSMC is Terasic Technologies¡¯ daughter card solution for sensors from Aptina Imaging Corporation. The AHA-HSMC makes it possible for users with High Speed Mezzanine Connector (HSMC) ports to connect various Aptina image sensors to Altera FPGA development kits. * Click here for more information of Aptina Ima

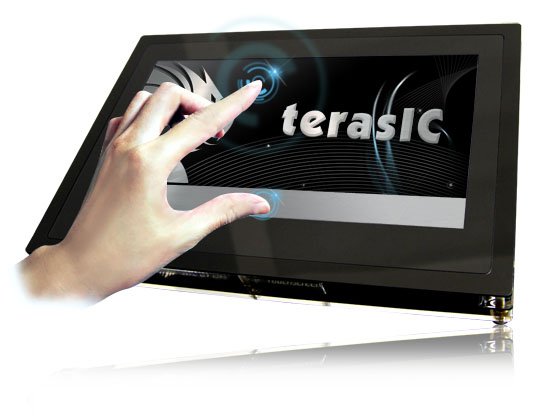

Multi-touch LCD Module (MTL)
Features LCD 7-inch panel 800x480 pixels 24-bits color depth TTL interface Multi-touch Capacitive Touch Screen Multi-touch Gestures Single Touch Support Interface IDE Connector 2x20 GPIO connector with ITG (IDE to GPIO) adapter Gesture Table One Point     Two

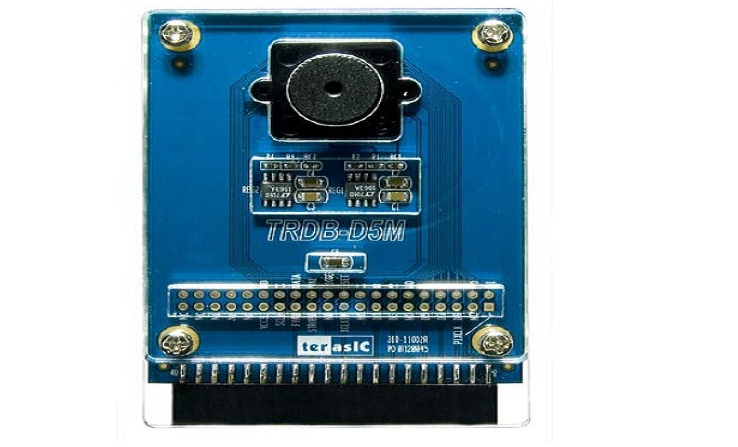

5 Mega Pixel Digital Camera Package
The 5 Mega Pixel Digital Camera Development Package provides everything you need to develop a 5 Mega Pixel Digital Camera on the Terasic FPGA system board. The kit contains hardware design (in Verilog) and software to load the picture taken into the PC and save it as BMP/JPG file. The Getting Started User Guide shows



DVI-HSMC Card
The Terasic DVI-HSMC is a DVI transmitter/receiver board with a High Speed Mezzanine Connector (HSMC) interface. It is designed to allow developers to access high quality and high resolution video signals that support UXGA Resolution (Pixel Rates up to 165 MHz). It gives the flexibility required in high resolution im

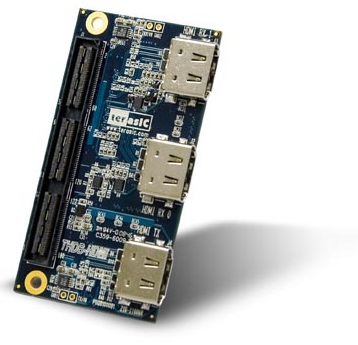

HDMI-HSTC Card
THDB-HDMI is a HDMI transmitter/receiver daughter board with HSTC (High Speed Terasic Connector) interface. Host boards, supporting HSTC-compliant connectors, can control the HDMI daughter board through the HSTC interface. Both transmitter and receiver can support FULL-HD. This THDB-HDMI kit contains complete refer

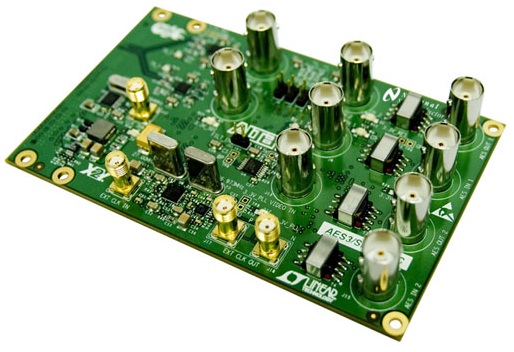

SDI-HSMC Card
The Transceiver Serial Digital Interface (SDI) HSMC board provides a hardware platform for developing video broadcasting systems. It is intended to be used by customers to implement and design SDI and AES systems based on transceiver-based host boards with HSMC interface. It can also be part of an openly sold Develop

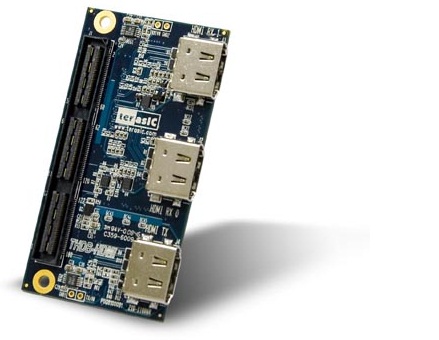

HDMI-HSTC_1.4 Card
THDB-HDMI is a HDMI transmitter/receiver daughter board with HSTC (High Speed Terasic Connector) interface. Host boards, supporting HSTC-compliant connectors, can control the HDMI daughter board through the HSTC interface. Both transmitter and receiver can support FULL-HD. This THDB-HDMI kit contains complete refer



 HDMI Transmitter Daughter Card
HDMI_TX_HSMC is a HDMI transmitter daughter board with HSMC (High Speed Mezzanine Connector) interface. Host boards, supporting HSMC-compliant connectors, can control the HDMI_TX_HSMC daughter board through the HSMC interface.This HDMI_TX_HSMC kit contains complete reference design with source code written in Verilog

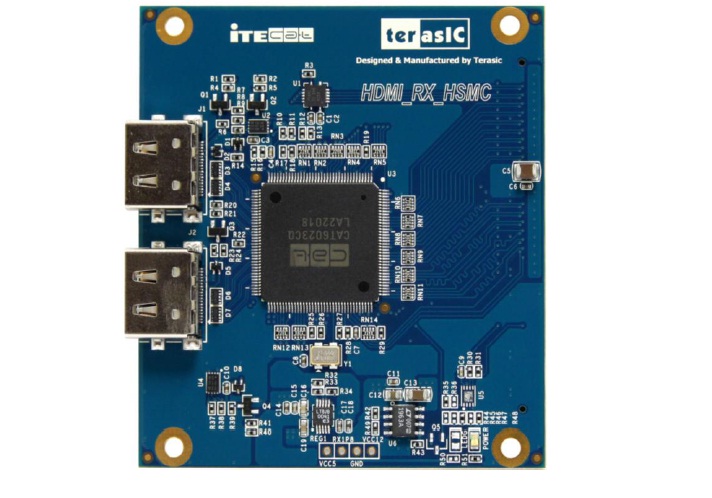

 HDMI Receiver Daughter Card
HDMI_RX_HSMC is a HDMI receiver daughter board with HSMC (High Speed Mezzanine Connector) interface. Host boards, supporting HSMC-compliant connectors, can control the HDMI daughter board through the HSMC interface.This HDMI_RX_HSMC kit contains complete reference design with source code written in Verilog and C, for
