Overview

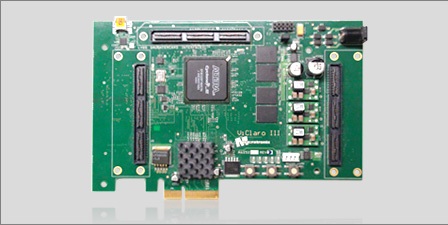

The ViClaro III Video Host Board provides a high data bandwidth Cyclone III host development platform for building HD video applications. By supporting 256MB of DDR2 memory with a 64-bit DDR2 memory bus, it provides the data bandwidth required to support video resolutions to 1080p at 120 Hz.

The ViClaro III Video Host Board requires the purchase of optional HSMC add-on cards to create an FPGA development platform suitable for specific requirements.

Features

• Altera Cyclone III EP3C120 FPGA
• 256MB DDR2 memory with 64-bit data bus
• 4-lane PCIe PHY
• 3 HSMC compatible expansion connectors
• High-speed USB 2.0 on-the-go transceiver

Recommended Microtronix HSMC Daughter Cards include:

• Quad Link LVDS Interface Daughter Card
• HDMI Receiver / Transmitter Daughter Card
• Gigabit Ethernet PHY / HDMI 1.3 Transmitter HSMC Daughter Card
• DVI Receiver / Transmitter HSMC Daughter Card

Included Microtronix IP Core*

• Avalon Multi-port DDR2 Memory Controller IP Core

Kit Contents:

• ViClaro III Video Host Board
• Power Supply
• HSMC Adapter Card, P/N: A6267
• Engineering Documentation on CD

*Note: Microtronix provides a one year OpenCore Plus license for the included IP
