Dual Input HD-SDI Switcher Design Kit

가    격 : 견적문의
중    량 : 500g

제목 없음.jpg

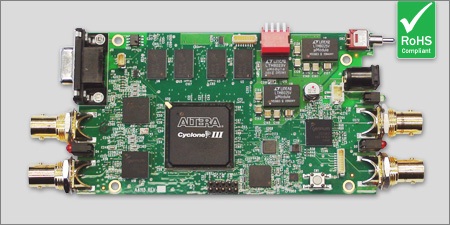

Key Hardware Features

  • Altera EP3C120 Cyclone™ III FPGA
  • Two Gennum GS2961 3G/HD/SD-SDI SDI Receivers
  • One Gennum GS491B HD/SD/Graphics Clock and Timing Generator with GENLOCK
  • One Gennum GS2962 3G/HD/SD-SDI Serializer
  • One Analog Devices AD7393 SD/HD Video Encoder
  • Two HD/SD-SDI inputs (75Ω BNC)
  • One HD/SD-SDI output (75Ω BNC)
  • One analog video:
  1. 75Ω BNC composite video output or
  2. YPbPr component video output
  • RS-232 DB9 serial control port

Overview

The Microtronix Dual Input HD-SDI Video Switcher Design Kit provides a hardware platform for developing SDI video processing systems using the Cyclone III FPGA. This low cost development board is intended to be used by engineers to implement and design low cost SDI systems.  The board is capable of support switching up to 720p/1080i/1080p@30fps resolutions.  Reference designs demonstrate switching of HD SDI sources controlled through switches.

The board utilizes a Gennum GS4911 HD/SD Graphics clock and timing generator with GENLOCK.  A baseband video output is available for displaying the SDI output video on a low cost monitor.

Video Reference Designs
The SDI video reference designs are based on Altera's Avalon  VIP system interconnect framework. The video IP core reference designs are based on Altera’s video IP framework which simplifies the development of a custom video solution. Reference designs include:

  • HD-SDI Switcher
  1. SDI Dual Input switcher 720p, 1080i and 1080p
  2. Output Gen-locked to input
  3. Auto detection of input video format
  4. Video color-bar pattern generator
  • 720p Picture-In-Picture
  1. Alpha blending
  2. Auto detection of input video format
  3. Video color-bar pattern generator
  • 720p SDI to Composite
  1. Auto detection of input video format
  2. Video color-bar pattern generator
  3. PIP Composite video scaling
  4. NTSC 480i composite video output

OpenCores Plus IP Core Licenses

The kit includes a 1-year OpenCores Plus license for the following Microtronix IP Cores:

  • Avalon Multi-port SDRAM Memory Controller IP Core, PN: 6240-01-03
  • I2C Master / Slave / PIO IP Core, PN: 6232-01-02

Kit Contents

  • Dual Input HD-SDI Video Switcher board
  • 12VDC-120/240VAC power adapter
  • Component video cable
  • CD with Reference Designs, & Documentation
  • USB Blaster
