Microtronix > HSMC Daughter Card

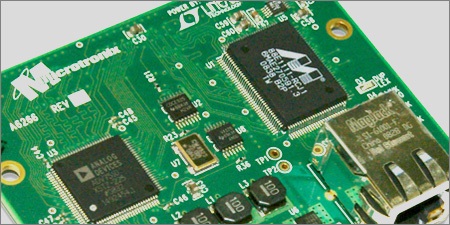

Gigabit Ethernet PHY-HDMI Transmitter HSMC Daughter Card

가    격 : 견적문의
중    량 : 400g

제목 없음.jpg

Features

  • Ethernet Triple Speed PHY
  • Deep Color HMDI 1.3 Transmitter
  • HSMC compatible daughter card

Overview

The Microtronix Gigabit Ethernet PHY and HDMI Transmitter HSMC Daughter Card adds functionality to the ViClaro III, the Altera EP3C120 Development Kit or other third party FPGA development boards with a HSMC header.

The Marvell 88E1111 Gigabit Ethernet PHY is fully compatible with Altera's Triple Speed Ethernet MAC IP. It can be used for building embedded Nios systems or for supporting Video-Over-IP applications.

The HSMC card provides 12-bit Deep Color HMDI Transmitter using the Analog Devices ADV7510 video chip. It is ideal for developing high resolution 1080p systems for entertainment, DVD players/recorders and digital set top boxes.

A TI CDCE925 dual programmable PLL frequency synthesizer is used to generate stable and finely grained clocks required to support a wide range of video resolution and modes of operation.

Reference Design

  • Video test pattern generation

Kit Contents:

  • Gigabit Ethernet / HDMI Transmitter HSMC Daughter Card
  • Installation CD with Reference Designs
