Aptina Sensor Adapter Card (AHA-HSMC)

가    격 : 견적문의
중    량 : 400g


The AHA-HSMC is Terasic Technologies’ daughter card solution for sensors from Aptina Imaging Corporation. The AHA-HSMC makes it possible for users with High Speed Mezzanine Connector (HSMC) ports to connect various Aptina image sensors to Altera FPGA development kits.

* Click here for more information of Aptina Imaging Systems:
   http://www.aptina.com/products/image_sensors/
   http://www.aptina.com/support/demo_kits.jsp

Features

The AHA-HSMC is an interface conversion daughter card that supports Aptina’s parallel interface and Altera’s High Speed Mezzanine Connector (HSMC).

  • Supports i2c configuration for Aptina sensor
  • Parallel data bus supports 12 data lines
  • Allows trigger signal to set shutter speed for Aptina sensor

Block Diagram

The AHA-HSMC is an interface conversion daughter card that supports Aptina’s parallel interface and Altera’s High Speed Mezzanine Connector (HSMC).

 Connectivity with FPGA Board


 AHA-HSMC Card + C3H Board


Video Development System: Aptina Sensor + AHA-HSMC Card + C3H Board + DVI Card

AHA-HSMC Card + DE2-115 Board

Video Development System: Aptina Sensor + AHA-HSMC Card + DE2-115 Board

AHA-HSMC Card + DE3 Board

Video Development System: Aptina Sensor + AHA-HSMC Card + DE3 Board + DVI Card

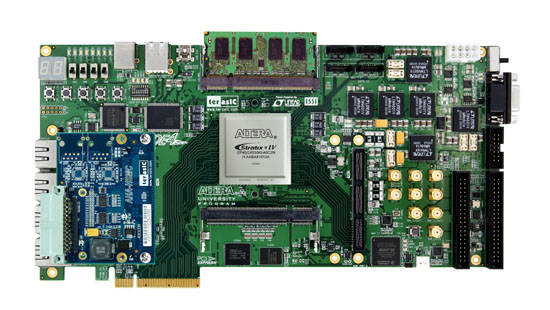

AHA-HSMC Card + DE4 Board

Video Development System: Aptina+ AHA-HSMC + DE4 Development System + DVI Card

Applications

• Video and Image Processing





Download

Document

Title Version Size(KB) Date Added Download
AHA-User_Manual - 1428 2011-04-07

CD-ROM

Title Version Size(KB) Date Added Download
AHA-HSMC CD -   2011-04-06

Please note that all the source codes are provided "as is". For further support or modification, please contact Terasic Support and your request will be transferred to Terasic Design Service.
More resources about IP and Dev. Kit are available on Altera User Forums.
