Terasic > Daughter Card > Video & Image

HDMI Transmitter Daughter Card

가    격 : 견적문의
중    량 : 500g

제목 없음.jpg

HDMI_TX_HSMC is a HDMI transmitter daughter board with HSMC (High Speed Mezzanine Connector) interface. Host boards, supporting HSMC-compliant connectors, can control the HDMI_TX_HSMC daughter board through the HSMC interface.
This HDMI_TX_HSMC kit contains complete reference design with source code written in Verilog and C, for HDMI signal transmitting. Based on reference designs, users can easily and quickly develop their applications.

Specification

HDMI_TX_HSMC is a HDMI transmitter daughter board with HSMC (High Speed Mezzanine Connector) interface. The board contains the following rich features:

  • One HSMC interface for connection purpose
  • One HDMI transmitter with single transmitting port
  • One 2K EEPROM
  • Powered from 3.3V and 12V pins of HSMC connector


The transmitter is compliant with HDMI 1.3a, HDCP 1.2, and DVI 1.0 specifications. It supports the following output video formats:

Block Diagram of Board Functionality


Associated block diagram of HDMI signal transmission

Connectivity

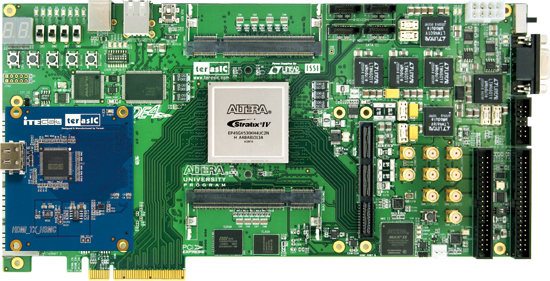

Connecting HDMI_TX_HSMC daughter board to
DE4


Connecting HDMI_TX_HSMC daughter board to
A2GX


Connecting HDMI_TX_HSMC daughter board to
DE2-115

Note that the THCB-HMF2 board is needed to make a connection between the HDMI_TX_HSMC daughter board and the HSMC connector of DE4.


THCB – HMF2 board

Reference Designs

Transmission-Only Demo

The Transmission-Only demonstration will generate HDMI Video/Audio signal for transmission, including various video formats and color space. There are 11 video formats available. The color space includes RGB444, YUV422, and YUV444.

  • 720x480p60
  • 1024x76pP60
  • 1280x720p50
  • 1280x720p60
  • 1280x1024
  • 1920x1080i60
  • 1920x1080i50
  • 1920x1080p60
  • 1920x1080p50
  • 1600x1200p5
  • 1920x1080i120


Transmission-Only Demo Hardware Setup


Documents

Title Version Size(KB) Date Added Download
HDMI_TX_HSMC UserGuide - 3370 2011-01-04

CD-ROM

Title Version Size(KB) Date Added Download
HDMI_TX_HSMC CD-ROM -   2011-01-04


Kit Contents

The HDMI_TX_HSMC package contains:

  • HDMI_TX_HSMC board x 1
  • System CD-ROM x 1

The CD contains technical documents of the HDMI transmitter, and one reference design for HDMI transmitting with source code.
