• Digital Transmitter
  • One DVI transmitter with single transmitting port
  • Digital Visual Interface (DVI) Compliant
  • Supports resolutions from VGA to UXGA (25 MHz – 165 MHz Pixel Rates)
  • Universal Graphics Controller Interface
    • 12-Bit, Dual-Edge and 24-Bit, Single-Edge Input Modes
    • Adjustable 1.1 V to 1.8 V and Standard 3.3 V CMOS Input Signal Levels
    • Fully Differential and Single-Ended Input Clocking Modes
    • Standard Intel 12-Bit Digital Video Port Compatible as on Intel™ 81x Chipsets
  • Enhanced PLL Noise Immunity
    • On-Chip Regulators and Bypass Capacitors for Reducing System Costs
  • Enhanced Jitter Performance
    • No HSYNC Jitter Anomaly
    • Negligible Data-Dependent Jitter
      • Programmable Using I²C Serial Interface
      • Single 3.3-V Supply Operation
• Digital Receiver
  • One DVI receiver with single receiving port
  • Supports UXGA Resolution (Output Pixel Rates Up to 165 MHz)
  • Digital Visual Interface (DVI) Specification Compliant
  • True-Color, 24 Bit/Pixel, 16.7M Colors at 1 or 2-Pixels Per Clock
  • Laser Trimmed Internal termination Resistors for Optimum Fixed Impedance Matching
  • 4x Over-Sampling
  • Reduced Ground Bounce Using Time Staggered Pixel Outputs
  • Lowest Noise and Best Power Dissipation Using TI PowerPAD™ Packaging
• Size ：41 x 78.11 mm

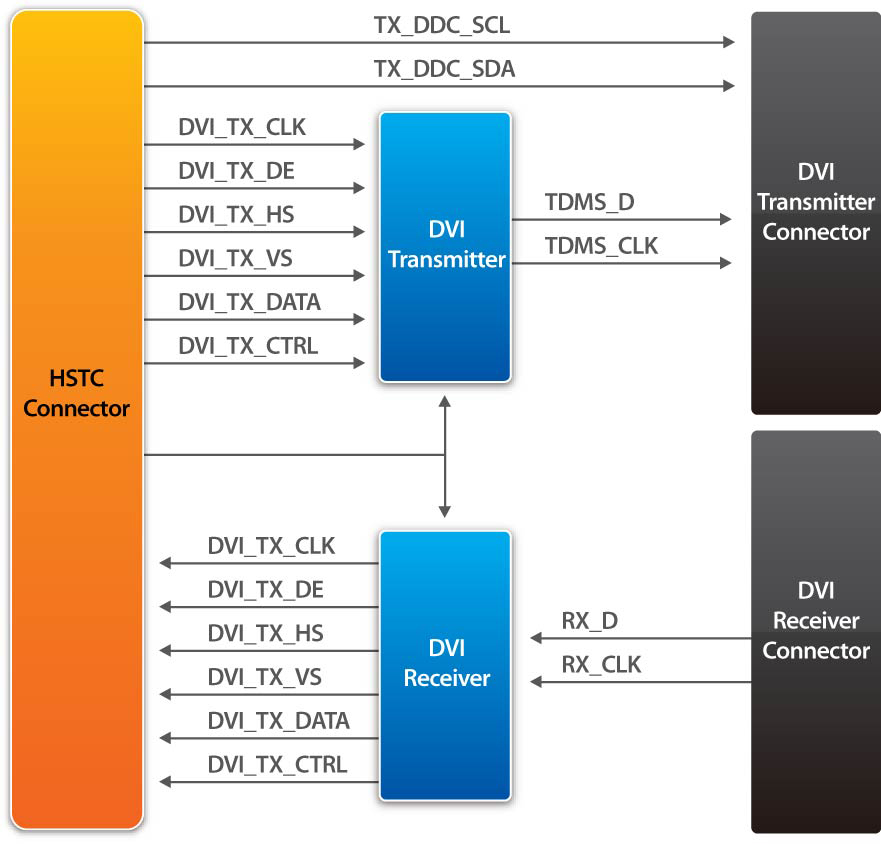

Block Diagram

Applications

• Machine vision
• Video phone
• Remote image sensing
• Video streaming
• Image recognition, filtering and compression
• Biometrics
• Surveillance systems

Connectivity

• One HSMC connector for interface conversion
• Compatible with all Terasic/Altera kits with HSMC/HSTC interface

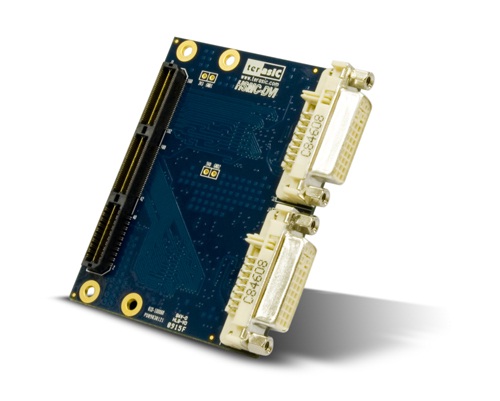

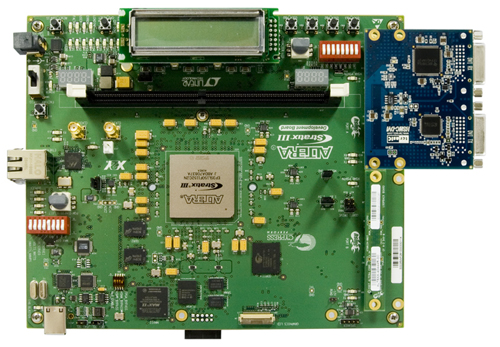

　　 DVI-HSMC Card

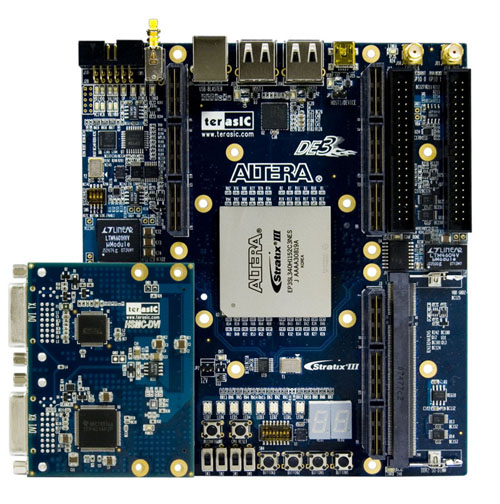

• Connect ADA-HSMC with DE3
  Note. An adapter (SFF or HFF) is required to connect ADA-HSMC with DE3. It is bundled in DE3 kit.

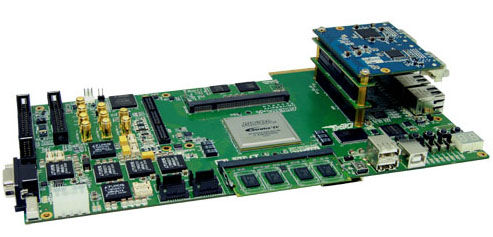

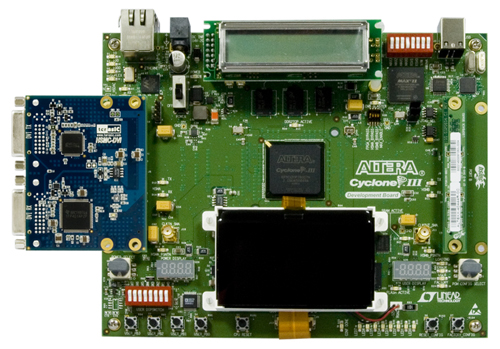

• The DVI-HSMC board connects with Cyclone III Development Board

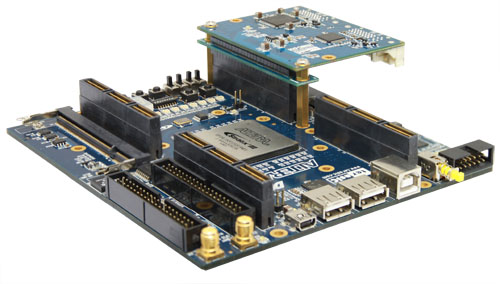

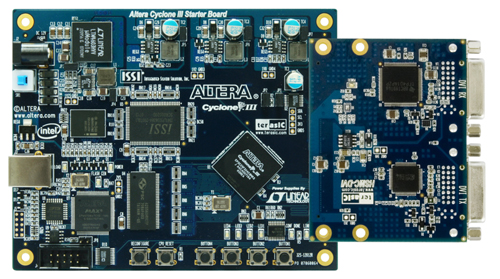

• The DVI-HSMC board connects with Cyclone III Starter Board

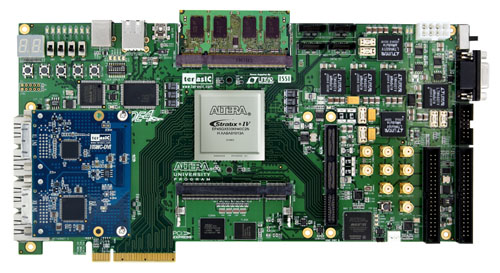

• The DVI-HSMC board connects with Altera DE4
  Note. Two adapters (HFM2) required to connect DVI-HSMC with DE4. They are bundled in DE4 kit.

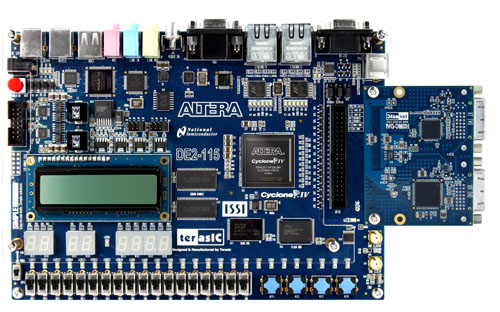

• The DVI-HSMC board connects with Altera DE2-115

Reference Designs

Transmission-Only Demo
(Full source code included)

The Transmission demonstration is able to generate various video format signals to the transmit port of the DVI Daughter Board from the associated host boards. (DE3, Cyclone III Starter Board, Cyclone III Development Board, and Stratix III Development Board). The various video signals will display test patterns on the LCD screen.

The supported video formats are listed below:

✔ 640x480@P60
✔ 720x480@P60
✔ 1024x768@P60
✔ 1280x1024@P60
✔ 1920x1080@P60
✔ 1600x1200@P60

Transmission Demo Hardware Setup

Loopback Demo
(Full source code included)

The Loopback demonstration displays the groundwork of a connection established between the DVI source device to the transmitter output of the DVI daughter board. The loopback (Internal bypass) forms the DVI video signals within the FPGA board, as video output pins of the receiver are directly connected to the input video pins of the transmitter. The supported FPGA board for the Loopback demonstration includes (DE3, Cyclone III Starter Board, Cyclone III Development Board, Stratix III Development Board).

Loopback Demo Hardware Setup



System Block diagram of the DVI demonstration

The package of the DVI-HSMC board includes

• One DVI-HSMC board
• One System CD

The CD contains technical documents of the DVI-HSMC daughter board, and reference designs for the following main boards: the DE3, Cyclone III & Stratix III development board and the Cyclone III Starter board with full source code.
