Terasic-FGPA Series > Daughter Card > Video & Image

Multi-Touch LCD Module Second Edition (MTL2)

°¡    °Ý : °ßÀû¹®ÀÇ
Áß    ·® : 1,000g

The Terasic Multi-Touch LCD Module Second Edition (MTL2) is an all-purpose capacitive touch-screen for your FPGA applications. It provides 5-point Multi-Touch support and a 7" color display LCD with 800x480 resolution. An IDE cable with an IDE-to-GPIO adapter (ITG) is provided in the kit to interface MTL2 with various Terasic FPGA development boards through a 2x20 GPIO interface.

The kit provides everything that is needed to develop multimedia applications using a digital Multi-Touch panel. Also to expedite your designs, complete reference designs and the demonstration source codes for implementing a photo viewer and a color painter are also available for download.

Operation of this module is required a FPGA board. Terasic FPGA board is sold separately.


Features

LCD

  • 7-inch panel
  • 800x480 pixels
  • 24-bits color depth

Multi-Touch

  • Capacitive Touch Screen
  • 5-point Multi-Touch Support
  • I2C interface
  • Gesture Support

Interface

  • IDE Connector
  • 2x20 GPIO connector with ITG (IDE to GPIO) adapter

Gesture Table

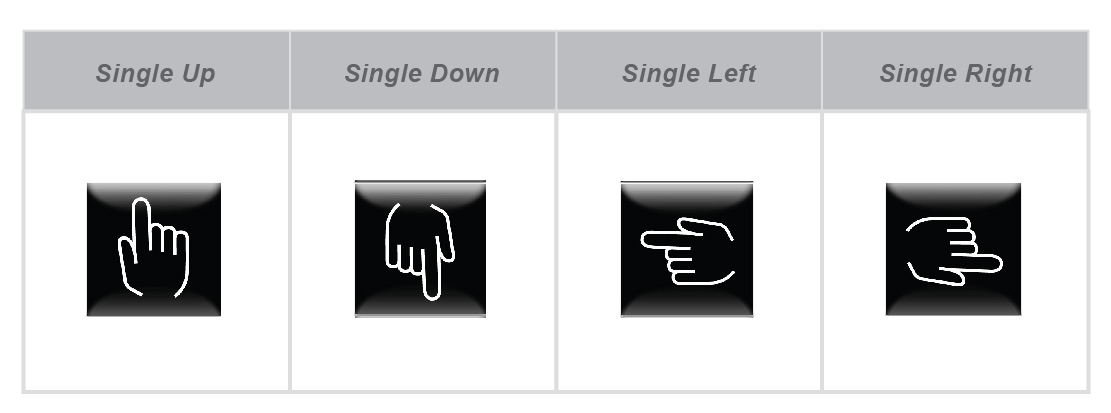

  • One Point Gesture

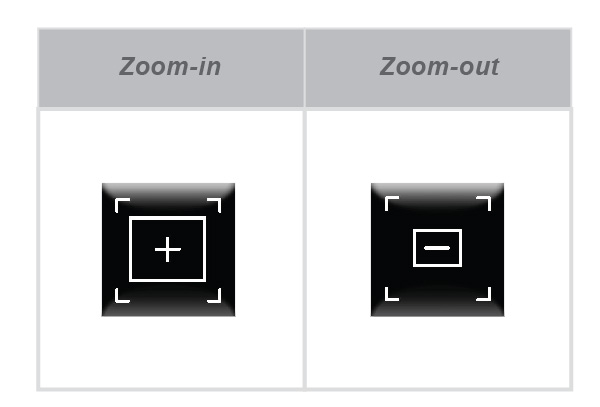

  • Two Points Gesture





Connectivity

The MTL2 can be connected to the Terasic FPGA Development Boards where a 2x20 GPIO expansion connector is available, here are a few examples:

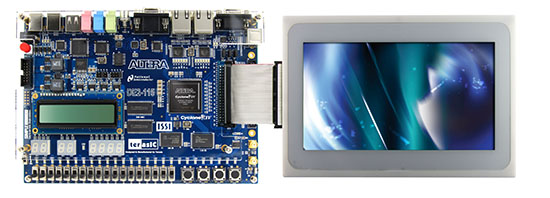

 Connect to DE2-115

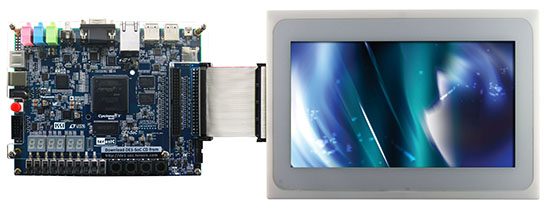

 Connect to DE1-SoC

 ¡¡

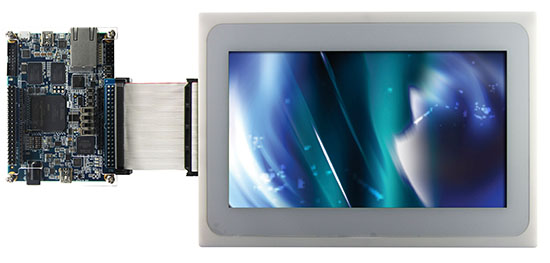

 Connect to DE0-Nano-SoC

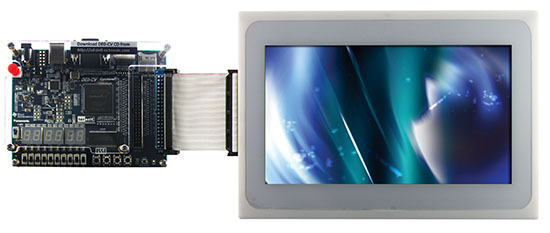

 Connect to DE0-CV

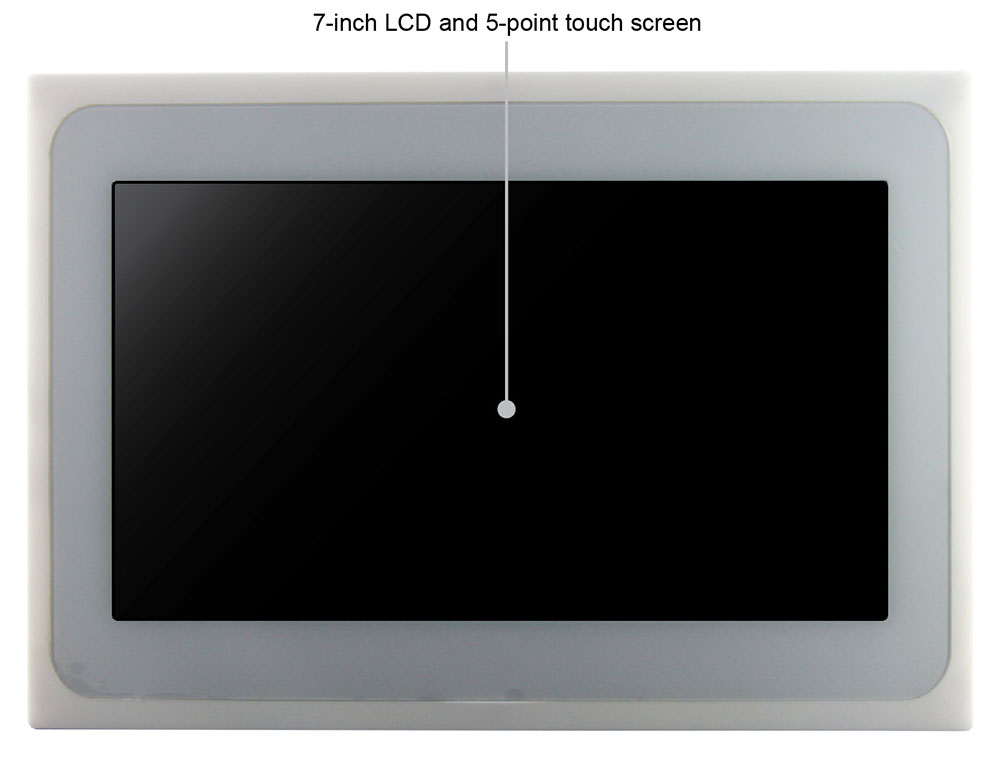

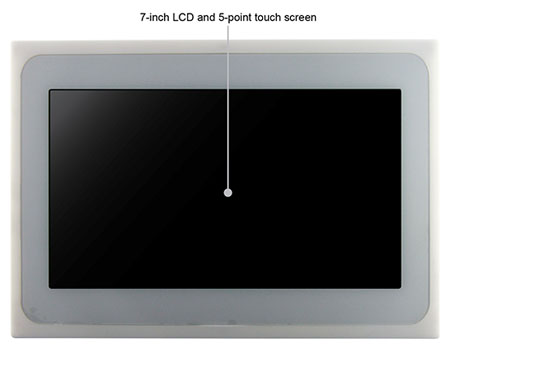

  • Top View of MTL2

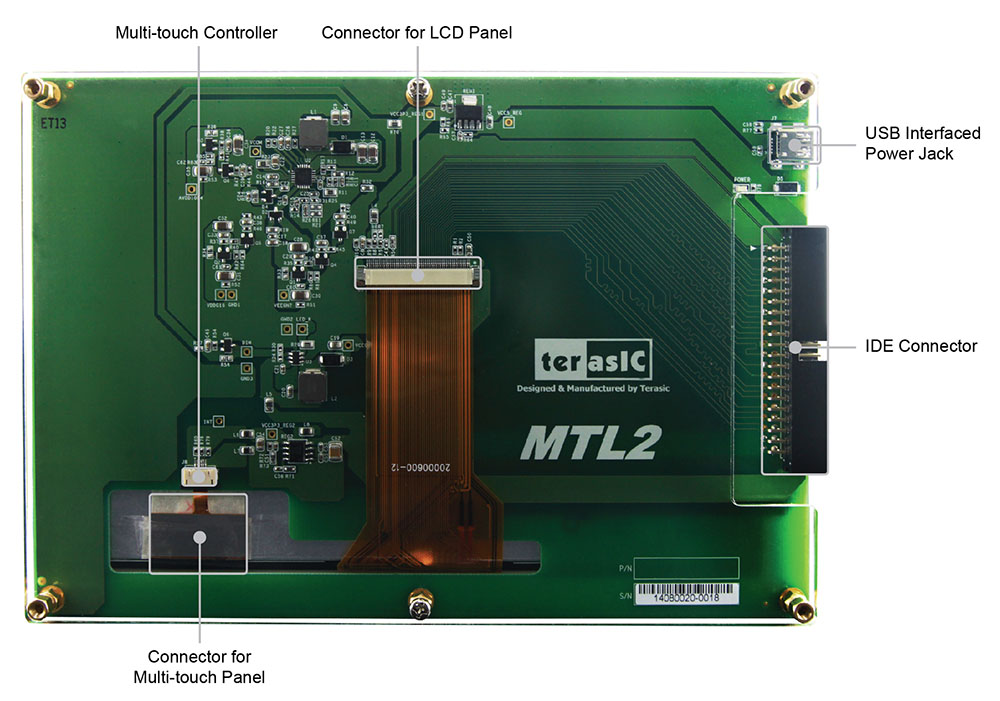

  •  Bottom View of MTL2



Size£º188*130*20 mm



IDE to GPIO Adapter (ITG)

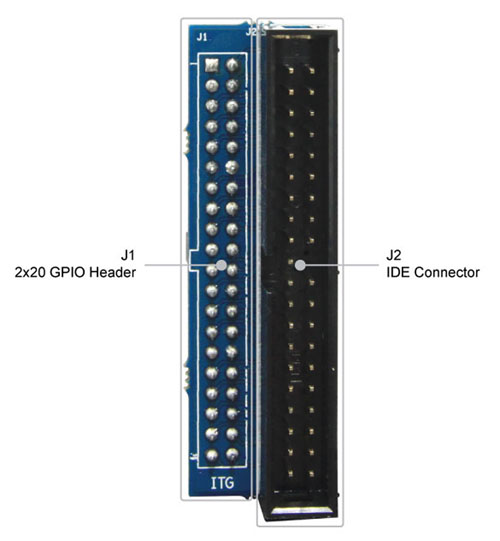

  • Top View of ITG Adapter

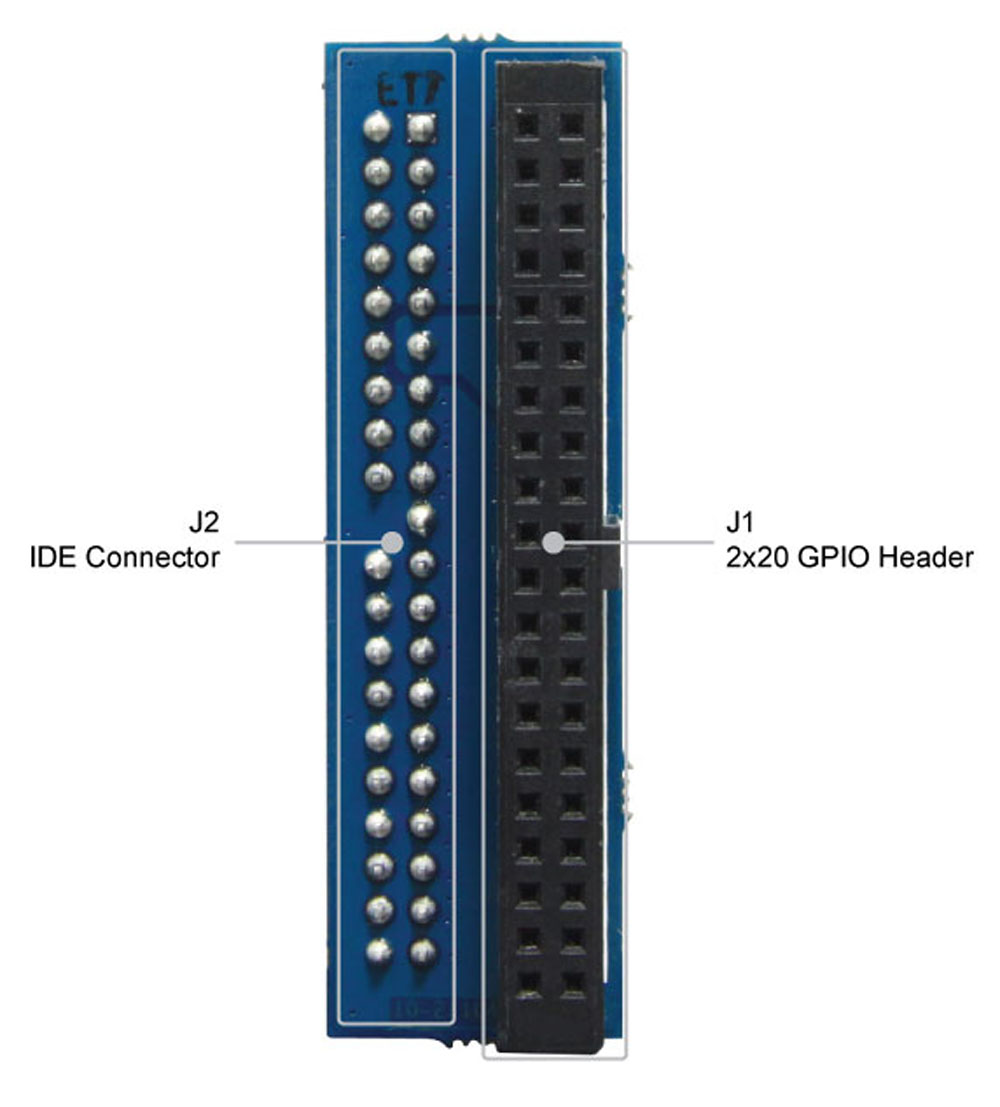

  • Bottom View of ITG Adapter

Size£º38*124*20 mm


Reference Designs

The MTL2 System CD includes the two following reference designs:

ePhoto

This demo shows how to use the Multi-Touch panel and LCD display to implement a photo viewer application.

 ePhoto Demonstration Setup

 Select photos using left or right gesture



 Zoom into photos with a zoom gesture



Painter

This demo shows how to use the Multi-Touch panel and LCD to implement a painting application based on the Altera Qsys and Altera VIP suite.


The Multi-Touch LCD Module package includes:





  1. Multi-Touch LCD Module, Second Edition
  2. IDE Cable with ITG Adapter
  3. 5V Power Supply
  4. Four Silicon Footstands



£ªif the film is unavailable, please kindly try another link below:
https://youtu.be/qQNDl6Vb3eI



Operation of this module is required a FPGA board. Terasic FPGA board is sold separately.
