SFP-HSMC Card

가    격 : 견적문의
중    량 : 500g

제목 없음.jpg

The Small Form-Factor Pluggable (SFP) HSMC board provides a hardware platform for evaluating the interoperation of Altera FPGA, specifically Stratix IV GX, Arria GX, and Arria IIGX, with generic SFP modules. The optical modules that are of particular importance are SGMII Ethernet, Fiber channel, CPRI/OBSAI, and SONET.


Specification

  • High Speed Mezzanine Card (HSMC)
  • 8 SFP Connectors
    • 4 Transceiver Based SFPs
    • 4 LVDS Based SFPs
  • 12 SMAs
    • 2 Transceiver RX pair (2 SMAs)
    • 2 Transceiver TX pair (2 SMAs)
    • 1 LVDS Clock Input SMA pair (2 SMAs)
    • 2 Single-ended Clock output SMAs
    • 1 LVDS Clock Output SMA pair (2 SMAs)
    • 1 LVPECL Clock Output SMA pair (2 SMAs)
  • Power
    • 12V to 4V
    • 4V to 3.3V
  • Clocks
    • 61.44MHz
    • 125MHz
    • 155.52MHz
    • 156.25MHz
    • Differential SMA

Connectivity

   SFP-HSMC Card

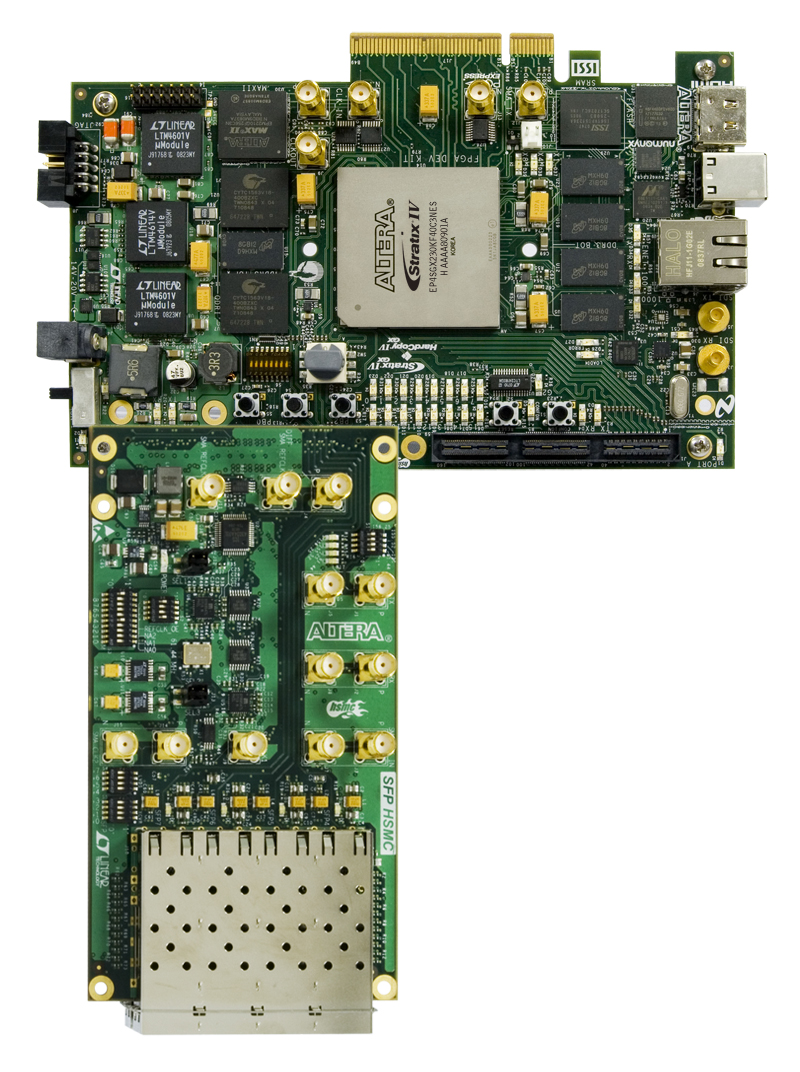

  • The SFP HSMC board connects with Stratix IV GX FPGA Development Kit

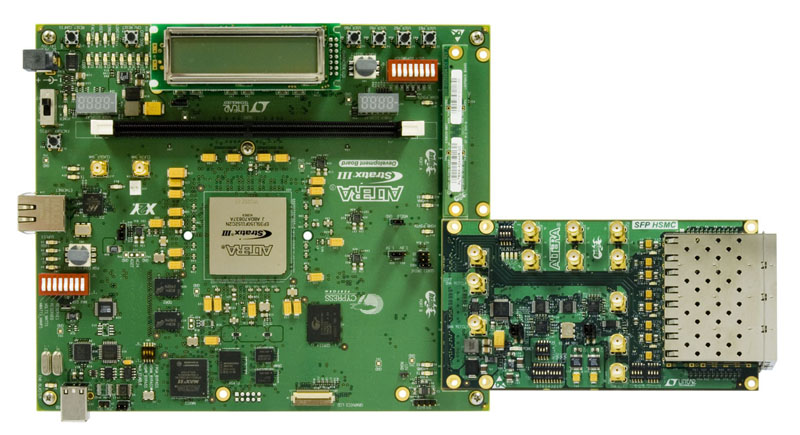

  • The SFP HSMC board connects with Altera Stratix III FPGA Development Kit




  • The SFP HSMC board connection to the Altera DE4 Development and Education Board
    Note. One adapters (HFM2) required to connect DVI-HSMC with DE4. They are bundled in DE4 kit.





Documents

Title Version Size(KB) Date Added Download
SFP HSMC User Manual - 2197 2009-09-02

CD-ROM

Title Version Size(KB) Date Added Download
SFP HSMC Board CD-ROM -   2010-05-24

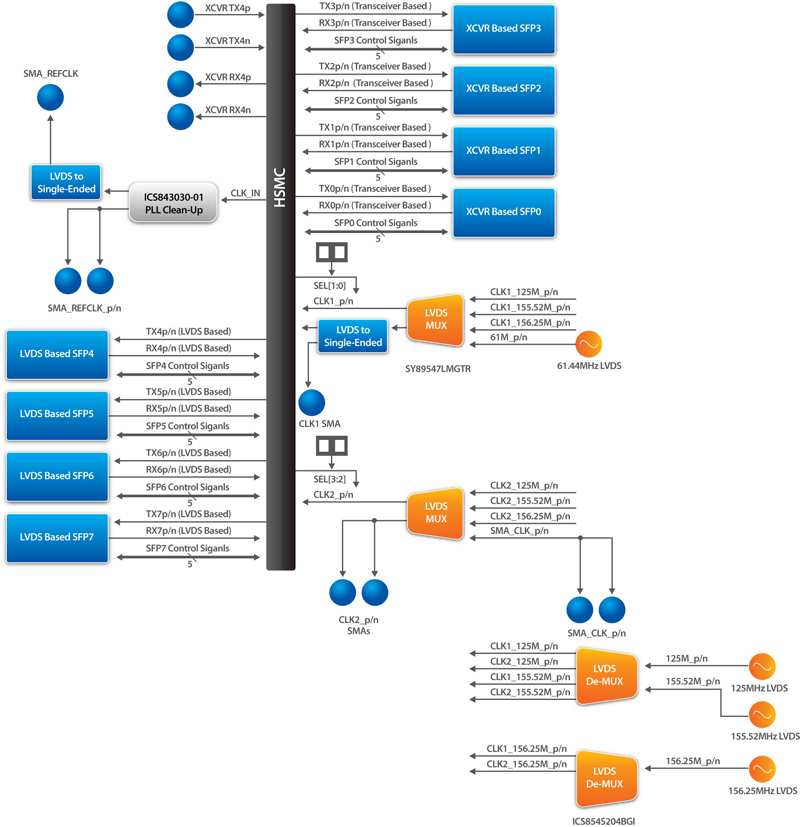

Block Diagram
