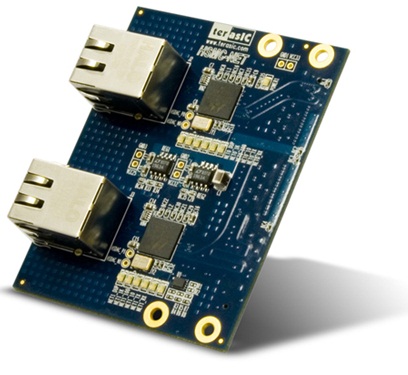

ETHERNET-HSMC Card

가    격 : 견적문의
중    량 : 500g

제목 없음.jpg

The Terasic HSMC-NET is a Gigabit Ethernet transceiver with a High Speed Mezzanine Connector (HSMC) interface. It offers network transfers of up to 1 Gbps with the host board using a HSMC connector. Also, it provides a fully integrated Ethernet solution enabling fast implementation design, shortening development times, and allows you to focus on the core functions of the system design. Lastly, the HSMC-NET can be connected any HSMC/HSTC interfaces.

Specification


  • One HSMC connector for interface conversion, which is fully compatible with Cyclone III Starter Kit and DE3 host boards
  • Duel-Port Integrated 10/100/1000 Gigabit Ethernet transceiver Supports GMII/MII/RGMII/TBI MAC interfaces for direct connection to a MAC/Switch port
  • Dynamically configurable to support 10Mbps, 100Mbps (Fast Ethernet) or 1000Mbps (Gigabit Ethernet) operation
  • Uses standard Cat 5 UTP (unshielded twisted pair) cabling
  • Requires a 25-MHz reference clock driven from a dedicated oscillator
  • Complete Reference Design

Documents

Title Version Size(KB) Date Added Download
HSMC-NET_UserGuide - 2538 2010-10-19

CD-ROM

Title Version Size(KB) Date Added Download
ETHERNET-HSMC CD-ROM -   2010-10-19

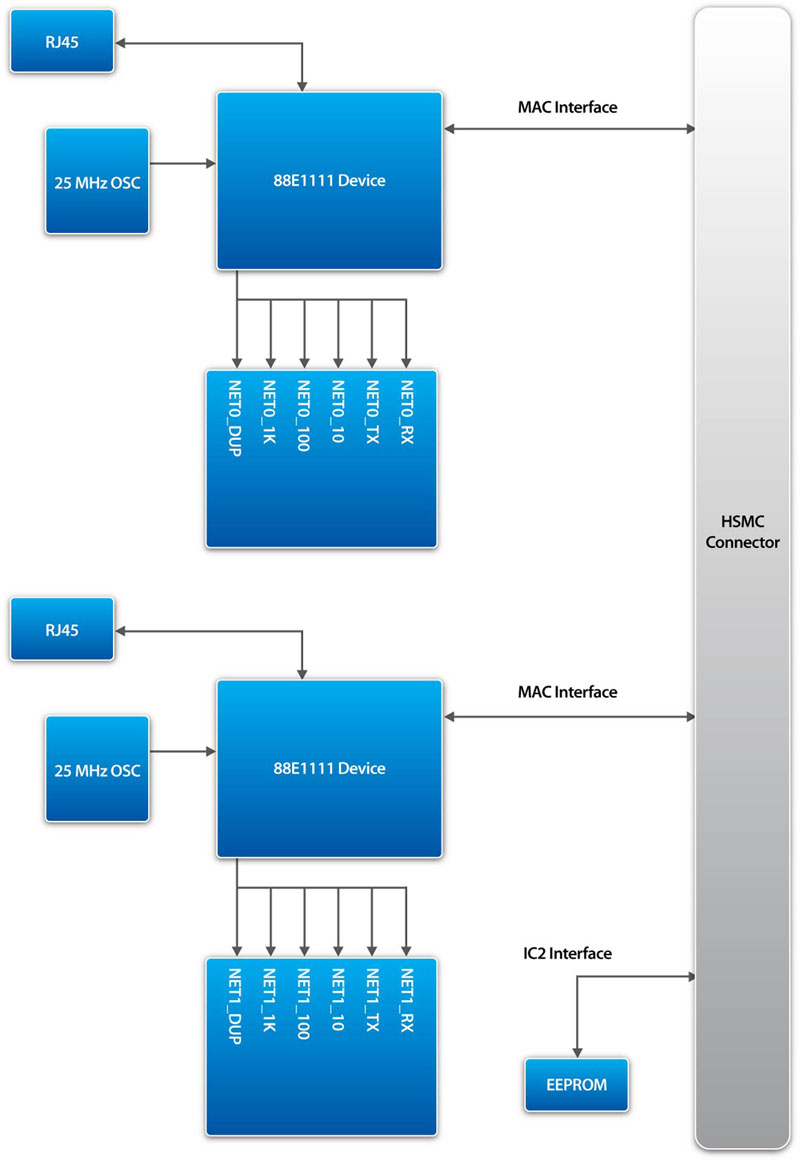

Block Diagram of Board Functionality

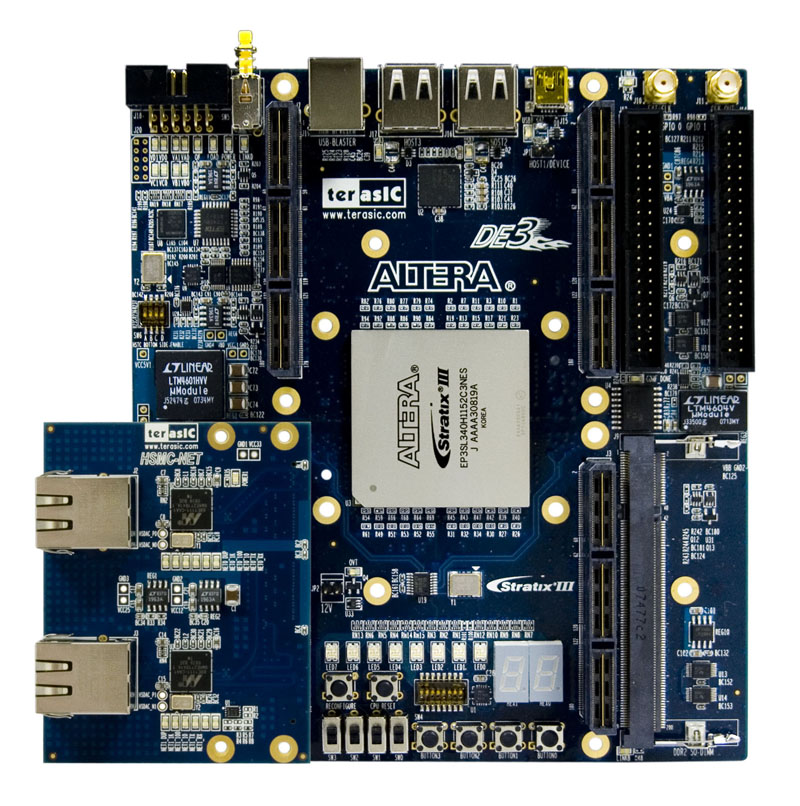

The HSMC-NET board connection to the Altera DE3 -Stratix III Development Board

The package of the HSMC-NET board includes

  • One HSMC-NET Board
  • One System CD
    (The CD contains technical documents of the HSMC-NET daughter board, and reference designs with full source code.)

Reference Designs

The HSMC-NET CD includes a reference design. It shows how to create a simple server on the Ethernet board using the DE3 FPGA board including full source code. The design includes 3 main parts in creating the server:

  1. Terasic DE3 System Builder
  2. Quartus II SOPC Builder
  3. Nios II
