The DE0-Nano-SoC Development Kit presents a robust hardware design platform built around the Altera System-on-Chip (SoC) FPGA, which combines the latest dual-core Cortex-A9 embedded cores with industry-leading programmable logic for ultimate design flexibility. Users can now leverage the power of tremendous re-configurability paired with a high-performance, low-power processor system. Altera’s SoC integrates an ARM-based hard processor system (HPS) consisting of processor, peripherals and memory interfaces tied seamlessly with the FPGA fabric using a high-bandwidth interconnect backbone. The DE0-Nano-SoC development board is equipped with high-speed DDR3 memory, analog to digital capabilities, Ethernet networking, and much more that promise many exciting applications.

The DE0-Nano-SoC Development Kit contains all the tools needed to use the board in conjunction with a computer that runs the Microsoft Windows XP or later.

What's different between the DE0-Nano-SoC kit and the Atlas-SoC kit?

The hardware is the same for the DE0-Nano-SoC kit and the Atlas-SoC kit. The only difference is the getting-started process for the two kits. Users can freely use the DE0-Nano-SoC kit resources on the Atlas-SoC kit and vice versa.

For more details on the Atlas-SoC kit, please visit: http://www.rocketboards.org/atlas-soc (The site is still under construction.)

Component Solution for Altera FPGAs

＊  Power  and ADC Solution		＊ SDRAM Memory Solution		＊ Clock Solution		＊ Ethernet Solution
＊  Flash Memory Solution		＊ Inductive Component Solution		＊ Capacitive Component Solution		＊ Accelerometer Solution

The DE0-Nano-SoC board has many features that allow users to implement a wide range of designed circuits, from simple circuits to various multimedia projects.

The following hardware is provided on the board:

FPGA Device

• Altera Cyclone® V SE 5CSEMA4U23C6N device
• Serial configuration device – EPCS128
• USB-Blaster II onboard for programming; JTAG Mode
• 2 push-buttons
• 4 slide switches
• 8 green user LEDs
• Three 50MHz clock sources from the clock generator
• Two 40-pin expansion header
• One Arduino expansion header (Uno R3 compatibility), can connection with Arduino shields.
• One 10-pin Analog input expansion header. (shared with Arduino Analog input)
• A/D converter, 4-pin SPI interface with FPGA

HPS (Hard Processor System)

• 925MHz Dual-core ARM Cortex-A9 processor
• 1GB DDR3 SDRAM (32-bit data bus)
• 1 Gigabit Ethernet PHY with RJ45 connector
• USB OTG Port, USB Micro-AB connector
• Micro SD card socket
• Accelerometer (I2C interface + interrupt)
• UART to USB, USB Mini-B connector
• Warm reset button and cold reset button
• One user button and one user LED
• LTC 2x7 expansion header

Block Diagram of the DE0-Nano-SOC Board

What's different between the DE0-Nano-SoC kit and the Atlas-SoC kit?

The hardware is the same for the DE0-Nano-SoC kit and the Atlas-SoC kit. The only difference is the getting-started process for the two kits. Users can freely use the DE0-Nano-SoC kit resources on the Atlas-SoC kit and vice versa.

For more details on the Atlas-SoC kit, please visit: http://www.rocketboards.org/atlas-soc (The site is still under construction.)



DE0-Nano-SoC Resources

Documents

Title	Version	Size(KB)	Date Added	Download
DE0-Nano-SoC_QSG	1.0.0	2485	2015-05-21
DE0-Nano-SoC_User Manual	1.0.0	3531	2015-05-21

CD-ROM

Title	Version	Size(KB)	Date Added	Download
DE0-Nano-SoC CD-ROM	1.0.5	-	2015-06-09

Reference Designs with Selected Daughter Cards

Daughter Board	Version	Size(KB)	Date Added	Download
LT24	1.0.0	-	2015-06-02
Arduino 1.8" TFT	1.0.0	-	2015-06-02

Linux BSP (Board Support Package): MicroSD Card Image

Title	Linux Kernel	Min. microSD Capacity	Size(KB)	Date Added	Download
Linux Console	3.13	4GB	108658	2015-05-13

Atlas-SoC Kit Resources

Documents

Title	Version	Size(KB)	Date Added	Download
Atlas-SoC kit_QSG.pdf	1.0.0	1952	2015-05-21
Atlas-SoC_User_manual.pdf	1.0.0	3498	2015-05-20

Please note that all the source codes are provided "as is". For further support or modification, please contact Terasic Support and your request will be transferred to Terasic Design Service.
More resources about IP and Dev. Kit are available on Altera User Forums.







Other course resources you might interested:

School: Cornell UniversitySenior Lecturer: Bruce Land
Course 1: - ECE5760 Advanced Microcontroller Design and system-on-chip [DE2]
Course 2: - ECE 5760 Simplified Floating Point for DSP [DE2]

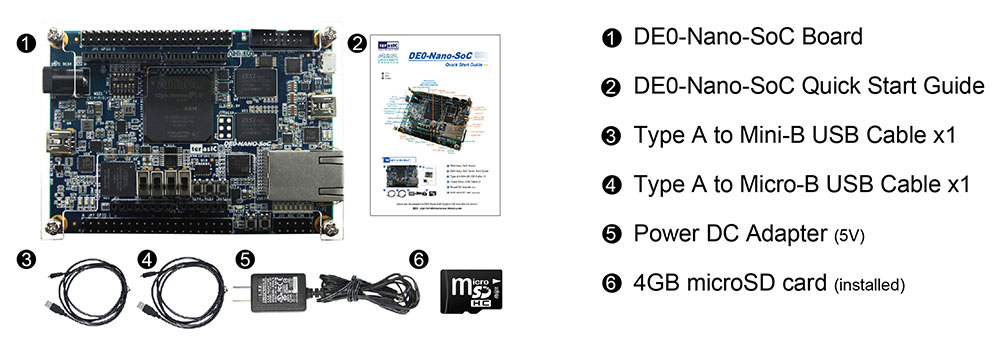

• DE0-Nano-SoC Board
• DE0-Nano-SoC Quick Start Guide
• Type A to Mini-B USB Cable x1
• Type A to Micro-B USB Cable x1
• Power DC Adapter (5V)
