CapSense CY8CMBR2016 Evaluation Kit

가    격 : 견적문의
중    량 : 400g

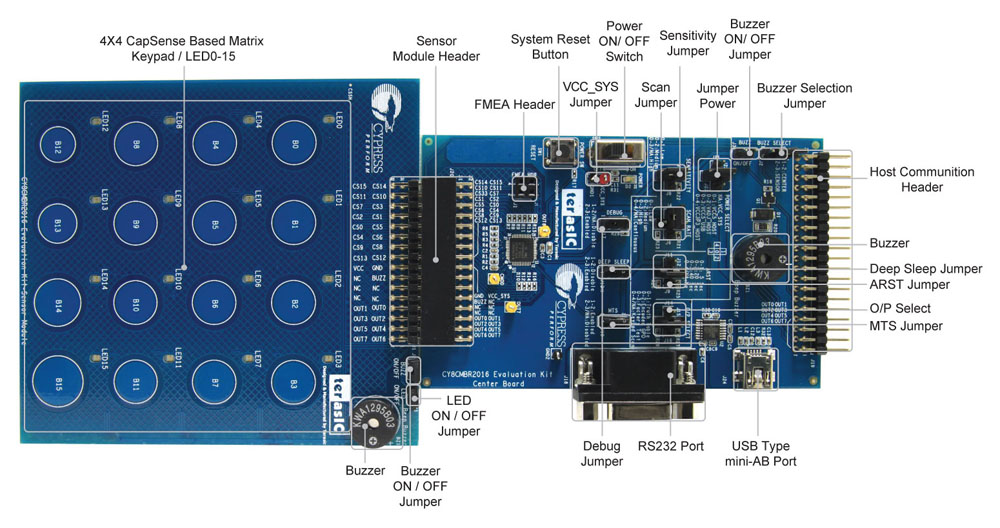

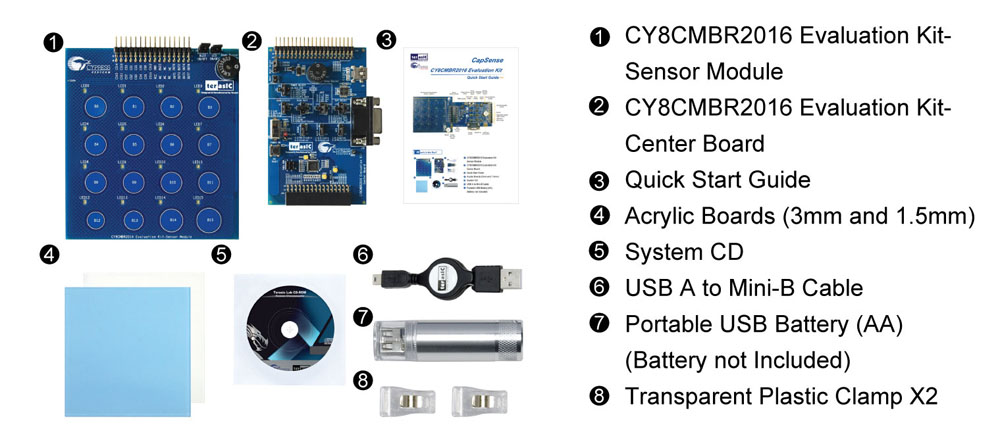

The CY8CMBR2016 EVK, which consists of Center Board and Sensor Module, is designed to allow users to easily implement a matrix keypad user interface solution using Cypress CapSense/SmartSense Auto-tuning technology. The kit contains 16 capacitive touch buttons organized in a matrix-style format. The board will enable users to achieve quick-to-market designs in large solution applications such as fire alarm control panels, security systems, and door locks.

* PSoC Devices From:



Features

  • 4x4 Matrix Solution
    • Utilizes Cypress's industry leading CapSense technology with SmartSense Auto-tuning
    • Simultaneous key press enabled
    • Mechanical matrix interface enabled for backwards compatibility
  • SmartSense Auto-tuning Enabled
    • Auto-tuning for PCB manufacturing variances
    • Adaptive Threshold Auto-tuning for different overlays
    • SNR Optimization to obtain robust performance
  • Configurable Solution
    • Pin configurable buttons
  • Featured device
    • CY8CMBR2016-24LQXI CapSense Express
  • Expansion header
    • Host Communication Header
    • Sensor Module Header
  • Audio
    • Buzzer included for feedback
  • Switches and indicators
    • 16 LEDs
    • 1 Reset Push-button Switch
  • Connectors
    • USB Type mini-AB Port
  • System Ready
    • BOM included
    • Layout/Gerber files included

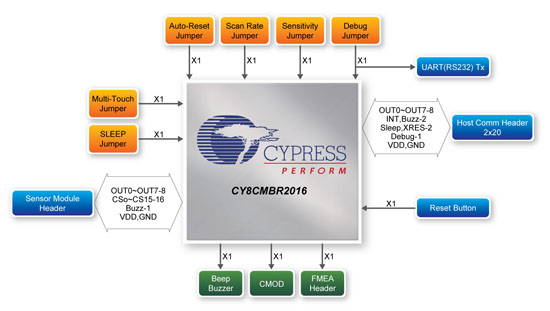

Block Diagram





Download

Documents

Title Version Size(KB) Date Added Download
MHK_user_manual - 3033 2011-08-30

CD-ROM

Title Version Size(KB) Date Added Download
MHK CD-ROM -   2011-09-21
