Terasic > Daughter Card > AD/DA

Highspeed AD/DA Card

°¡    °Ý : °ßÀû¹®ÀÇ
Áß    ·® : 500g

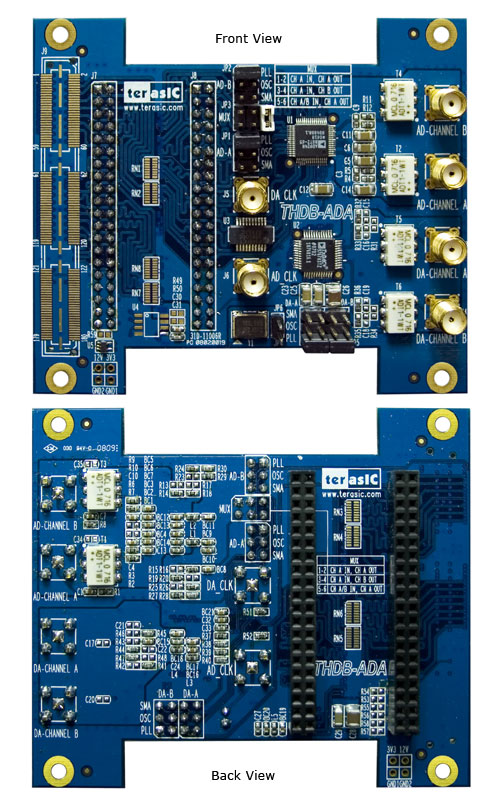

ADA-HSMC

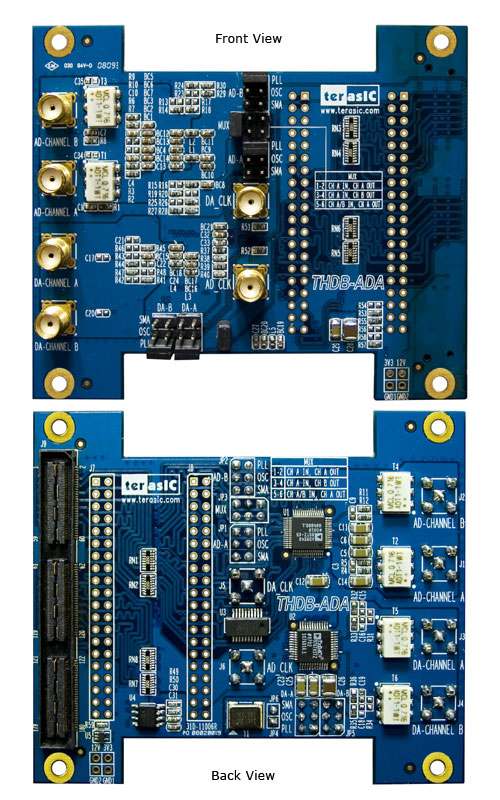

ADA-GPIO







  • Double the channel
  • Double the power
  • In an unbelievable compact size

The THDB_ADA (ADA) daughter board is designed to provide DSP solution on DE series and Cyclone III Starter Kit, or other boards with HSMC or GPIO interface.

  • Dual AD channels with 14-bit resolution and data rate up to 65 MSPS
  • Dual DA channels with 14-bit resolution and data rate up to 125 MSPS
  • Dual interfaces include HSMC and GPIO, which are fully compatible with Cyclone III Starter Kit and DE0/DE1/DE2/DE3 etc, respectively
  • Clock sources include oscillator 100MHz, SMA for AD and DA each, and PLL from either HSMC or GPIO interface
  • Size£º90.3*78.2 mm

Applications

  • Low cost oscilloscope and pattern generator
  • Communication Transceiver
  • Digital Signal Processing
  • Platform for various modulation techniques

Connectivity

There will be two models available, ADA-GPIO and ADA-HSMC, which offer the compatibility of connecting the THDB_ADA (ADA) kit to DE2-115/DE4/DE3/DE2/DE1/DE0 and Cyclone III Starter Kit, respectively.

¡¡¡¡ ADA-GPIO Connectivity

  • Connect ADA-GPIO with DE2-70

¡¡¡¡

¡¡¡¡ ADA-HSMC Connectivity

  • Connect ADA-HSMC with Cyclone III Starter Kit

¡¡¡¡

  • Connect ADA-HSMC with DE3
    Note. An adapter (SFF or HFF) is required to connect ADA-HSMC with DE3. It is bundled in DE3 kit.

¡¡¡¡

¡¡¡¡

  • Connect ADA-HSMC with DE4
    Note. An adapter (HMF2) is required to connect ADA-HSMC with DE4. It is bundled in DE4 kit.

¡¡¡¡

¡¡¡¡

  • Connect ADA-HSMC with DE2-115

¡¡¡¡

Documents

Title Version Size(KB) Date Added Download
THDB-ADA User Guide - 4611 2010-11-04

CD-ROM

Title Version Size(KB) Date Added Download
ADA CD-ROM -   2010-11-04

Reference Design

Arbitrary Waveform Generator


Configuration Setup of a Random Waveform Generator on DE3



Fast-Fourier Transform Analysis


Normalized Spectral Plot of The 14-bit DAC B Input Data


Normalized Spectral Plot of The 14-bit ADC B Output Data


The packet of the ADA board includes

  • One ADA Board
  • One System CD
