Terasic-FGPA Series > Daughter Card > Interface conversion

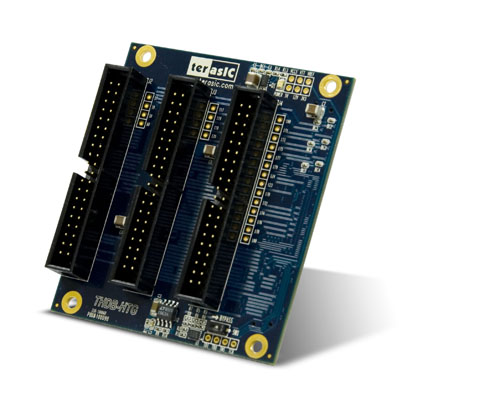

GPIO-HSTC Card

가    격 : 견적문의
중    량 : 500g

The HTG Card is designed to convert a High-Speed Terasic connector (HSTC) or a High-Speed Mezzanine connector (HSMC) I/Os to three 40-pin expansion prototype connectors, which are compatible with Altera DE2/DE1/DE0 expansion headers. Users can connect up to three Altera DE2/DE1/DE0 boards (or associated daughter cards) onto a HSTC/HSMC-interfaced host board via a HTG Card.

  • Convert HSTC/HSMC-interfaced I/O to standard 40-pin expansion connectors.
  • Allow users to connect Altera DE2/DE1/DE0 boards to a HSTC/HSMC-interfaced host board.
  • Provide test points for signal measurement

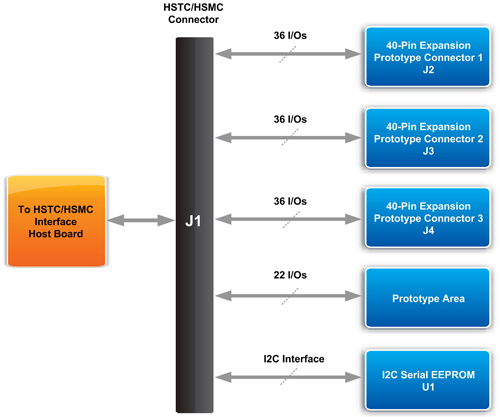

Block diagram

   HTG

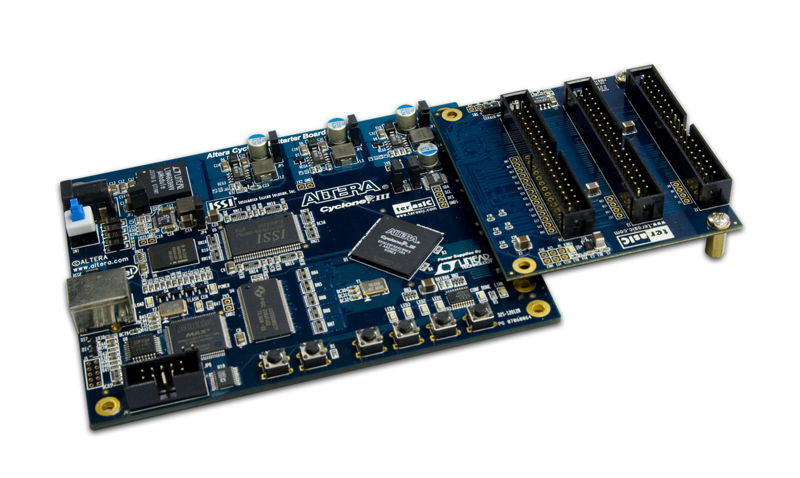

  • Connect HTG with Altera Cyclone III Starter Board

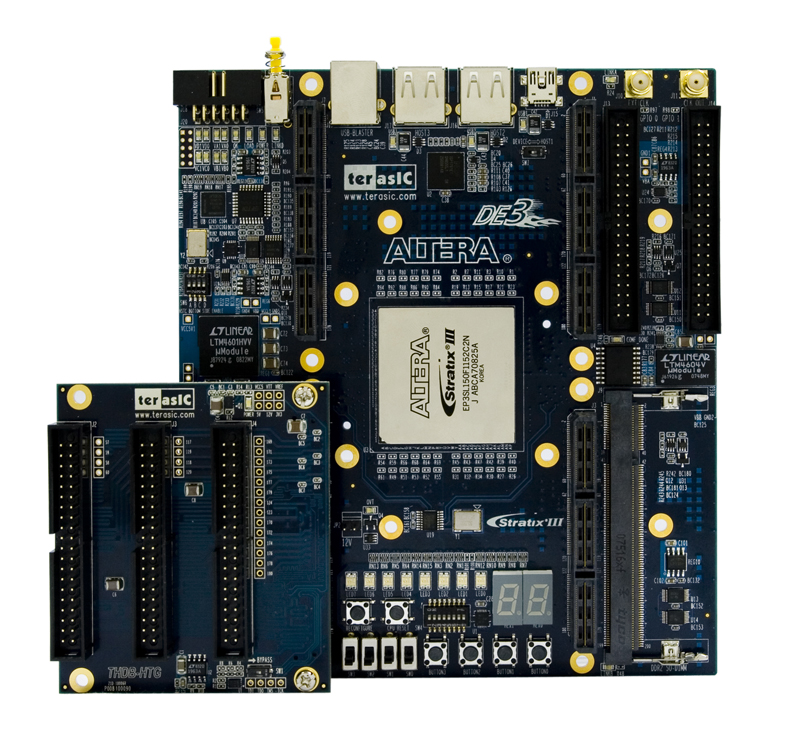

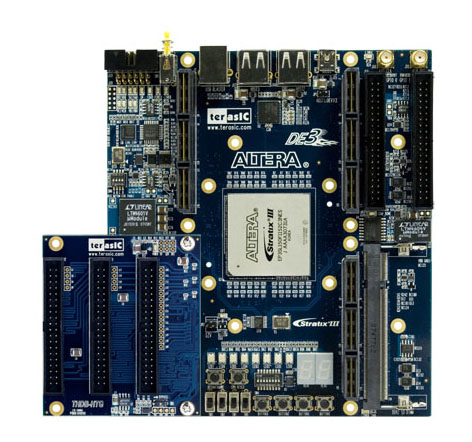

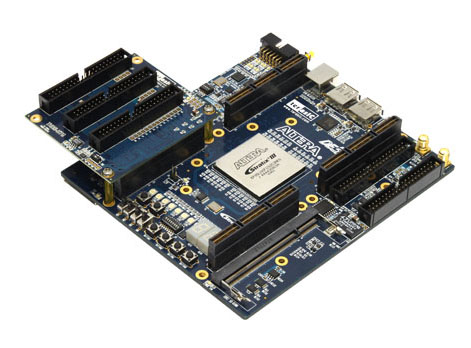

  • Connect HTG with Altera DE3
    Note. An adapter (SFF or HFF) is required to connect ADA-HSMC with DE3. It is bundled in DE3 kit.

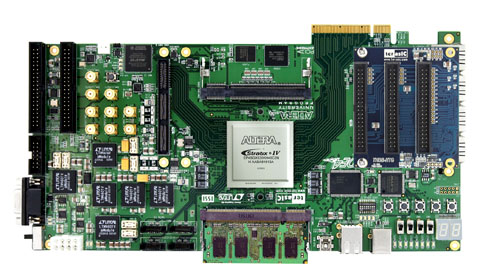

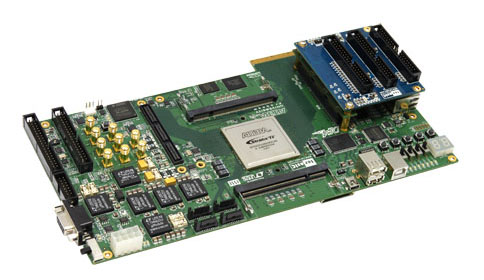

  • Connect HTG with Altera DE4
    Note. One adapters (HFM2) required to connect DVI-HSMC with DE4. They are bundled in DE4 kit.

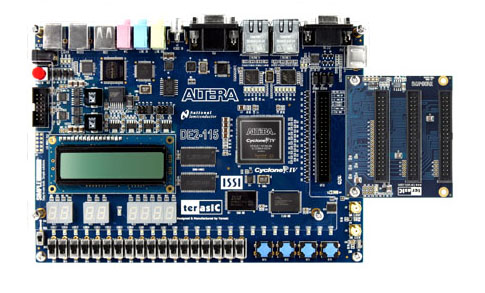

  • Connect HTG with Altera DE2-115



Documents

Title Version Size(KB) Date Added Download
THDB-HTG_V1.0.3 - 1150 2011-07-20
THDB-HTG UserManual - 3352 2010-04-08

Please note that all the source codes are provided "as is". For further support or modification, please contact Terasic Support and your request will be transferred to Terasic Design Service.
More resources about IP and Dev. Kit are available on Altera User Forums.
