- One High Speed Mezzanine Card (HSMC) connector for interface conversion, which is fully compatible with Altera Development boards and Terasic DE3 host boards.
- External Clock In / Out Interface
- Two 14-bit Analog to Digital (A/D) converter channel with 150MSPS
- Two 14-bit Digital to Analog (D/A) converter channel with 250MSPS
- One Audio CODEC with Line-In, Line-Out, MIC and Headphone
- Size ：145mm x 80mm x 18mm (L x W x H)
- Low cost oscilloscope and pattern generator
- Communication Transceiver
- Digital signal processing
- Platform for various modulation techniques
- Record and playback sound

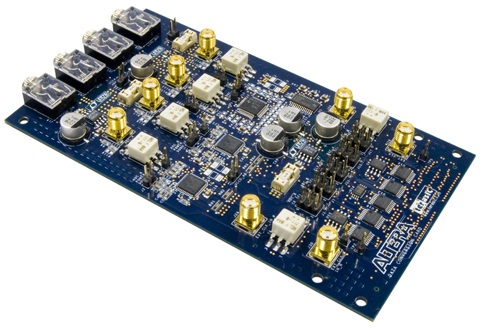

AD/DA Data Conversion Card
- AD/DA Data Conversion Card connection to the Altera Cyclone III Development Board
- AD/DA Data Conversion Card connection to the Altera DE3
Note. An adapter (SFF) is required to connect ADA-HSMC with DE3. It is bundled in DE3 kit.
- AD/DA Data Conversion Card connection to the Altera DE4
Note. An adapter (HFM2) required to connect DVI-HSMC with DE4. It is bundled in DE4 kit.
- AD/DA Data Conversion Card connection to the Altera DE2-115
The package of the AD/DA Data Conversion Card includes
- One AD/DA Data Conversion Card
- One System CD
- One Accessories package (screw、standoff、Jumper)
