Terasic > Daughter Card > Interface conversion

XTS-HSMC Card

°¡    °Ý : °ßÀû¹®ÀÇ
Áß    ·® : 500g

Á¦¸ñ ¾øÀ½.jpg

The XTS-HSMC Daughter Card is designed to convert FPGA transceiver channels to SMA connectors through a High-Speed Mezzanine Connector (HSMC) interface. It is intended to allow users to evaluate the performance of transceiver-based host boards with HMSC interface specifically Stratix IV GX, Stratix II GX, Arria II GX and Cyclone IV GX with integrated transceivers. The XTS-HSMC Daughter Card is the ideal platform to allow users to prototype and test their high-speed interfaces quickly and easily in support of transceiver performance for jitter, protocol compliance, and equalization.

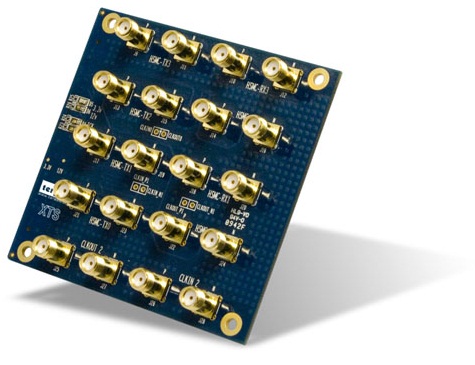

XTS-HSMC Daughter Card Top View XTS-HSMC Daughter Card Bottom View

Specification

  • Convert transceiver channels to SMA connectors through HSMC interface
  • Support 4 transceiver channels
  • SMA connectors for PLL input and output clock
  • Applicable for large volume applications that require high-speed (Gigabit) data transfer


Connectivity

The XTS-HSMC Daughter Card connects to the Arria II GX FPGA Development Kit



The XTS-HSMC Daughter Card connects with
Arria II GX FPGA Development Kit



The XTS-HSMC Daughter Card connects to the S4GFP Board


The XTS-HSMC Daughter Card connects with the
S4GFP Board


Documents

Title Version Size(KB) Date Added Download
XTS UserManual - 2314 2010-01-22

CD-ROM

Title Version Size(KB) Date Added Download
XTS CD-ROM -   2010-05-24

Block Diagram of Board Functionality


Kit Contents

  • One XTS-HSMC Daughter Card
  • One System CD

  •
