Terasic-FGPA Series > Daughter Card > Interface conversion

PCIe x4 Cable Adapter (PCA)

가    격 : 견적문의
중    량 : 100g


PCA(PCIe Cable Adapter),which is used to connect PCIe upstream slot with downstream target board by a PCIe x4 cable , supports the PCIe x4 & x1 mode. PCA card can provide programmable equalization, amplification, and de-emphasis for PCIe transceiver signal by using 8 select bits. It is also available to optimize performance over a variety of physical mediums by reducing Inter-symbol interference.

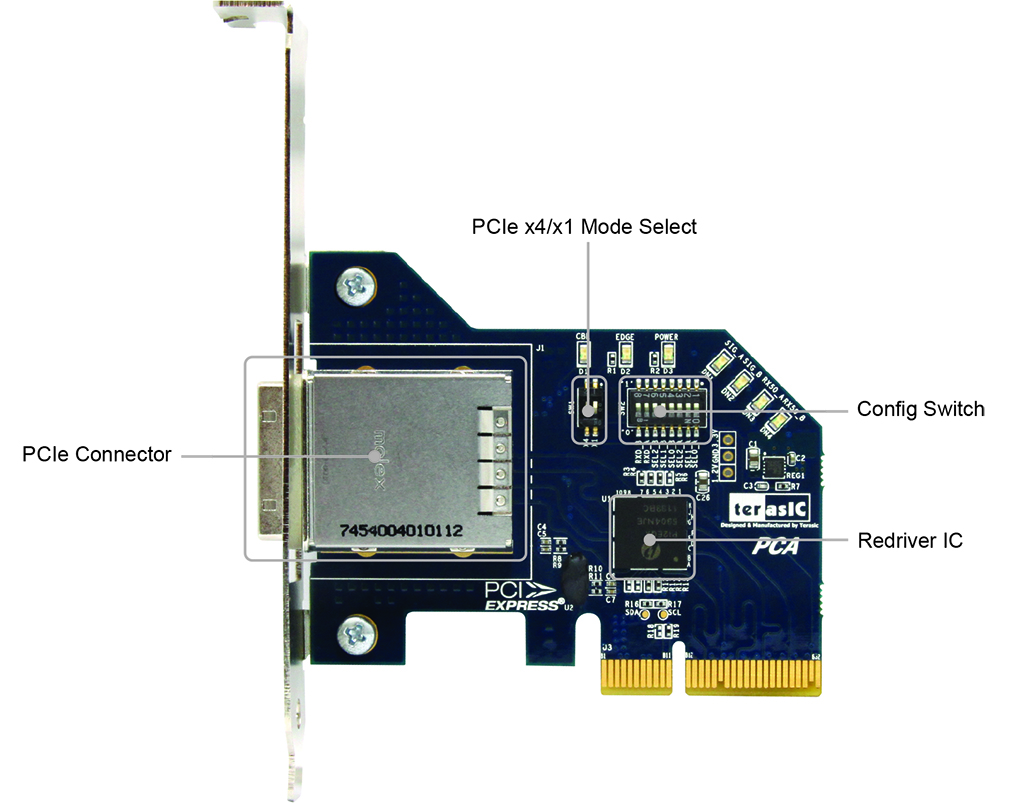

PCA Card

PCA is a PCIe cable adapter card which supports these features:
• Up to 5.0Gbps PCIe 2.0 Serial ReDriver
• PCIe x4 Gen 2
• Adjustable receiver equalization
• Adjustable transmitter amplitude and de-emphasis

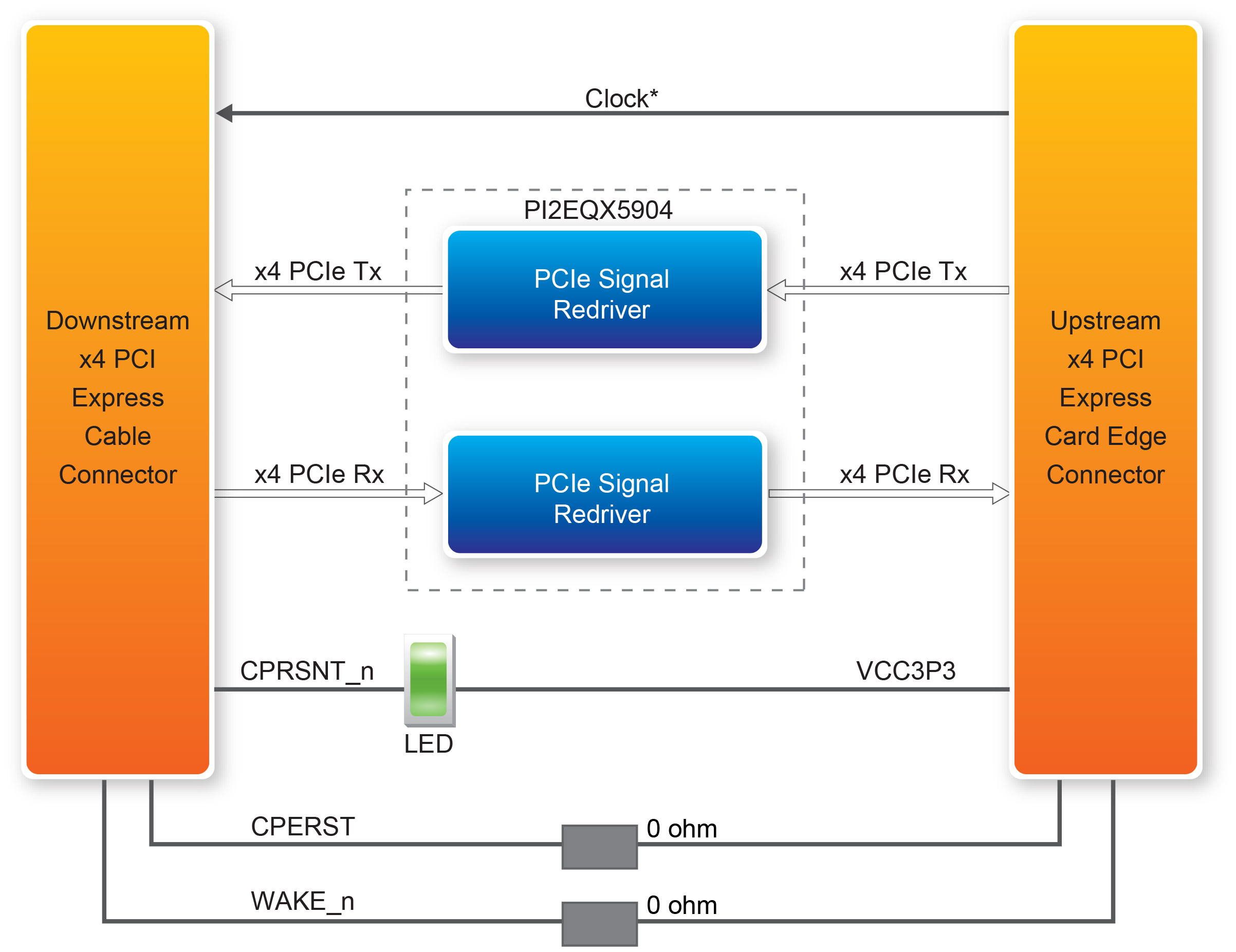

Block diagram

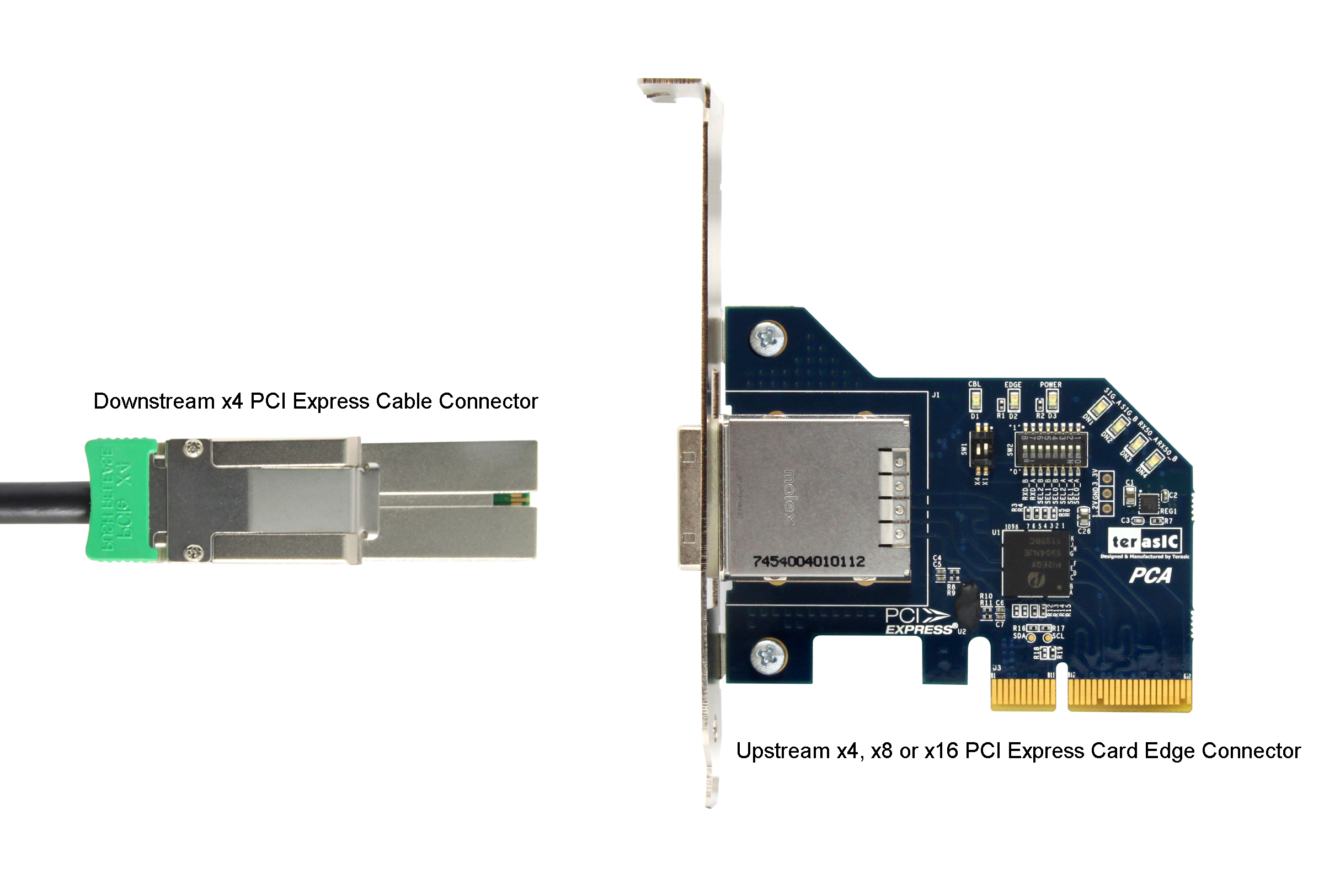

Connectivity

Applications

  • In the demonstration,the PCA functions as an adapter card between TR4 and PC.














  • Size:64.4*79.3mm

Download

Document

TitleVersionSize(KB)Date AddedDownload
PCA_User_Manual_V1.0.016702012-03-16
