PCA(PCIe Cable Adapter)，which is used to connect PCIe upstream slot with downstream target board by a PCIe X4 cable , supports the PCIe X4 & X1 mode. PCA card can provide programmable equalization, amplification, and de-emphasis for PCIe transceiver signal by using 8 select bits. It is also available to optimize performance over a variety of physical mediums by reducing Inter-symbol interference.

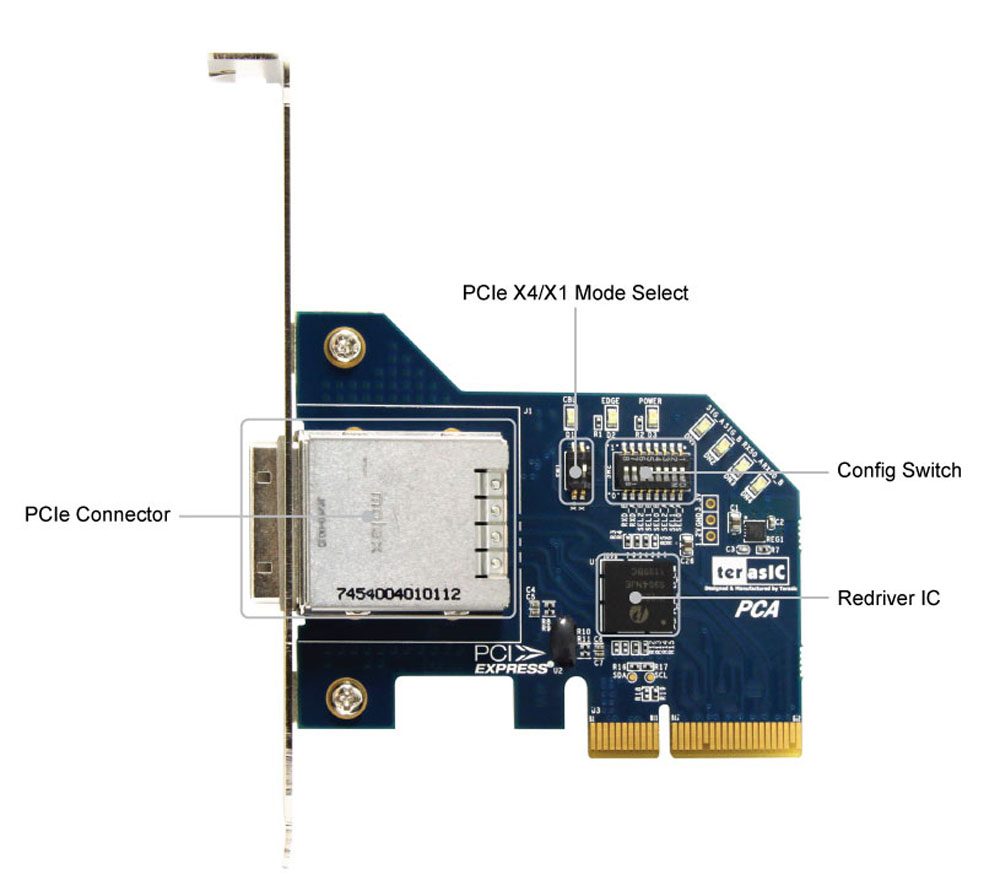

PCA Card

PCA is a PCIe cable adapter card which supports these features:
• Up to 5.0Gbps PCIe 2.0 Serial ReDriver
• PCIe X4 Gen 2
• Adjustable receiver equalization
• Adjustable transmitter amplitude and de-emphasis

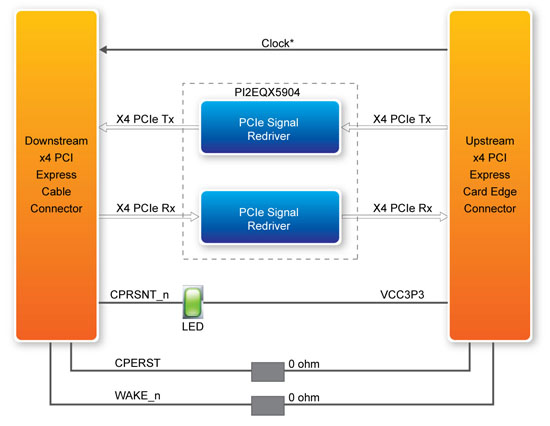

Block diagram

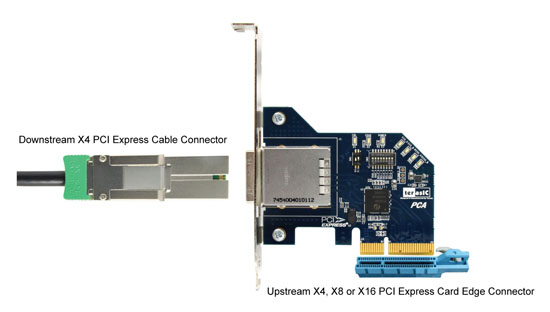

Connectivity

Applications

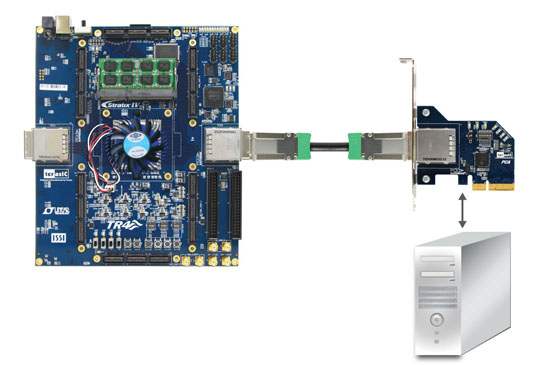

• In the demonstration，the PCA functions as an adapter card between TR4 and PC.










• Size：64.4*79.3mm

Download

Document

Title	Version	Size(KB)	Date Added	Download
PCA_User_Manual_V1.0.0	-	1670	2012-03-16

Please note that all the source codes are provided "as is". For further support or modification, please contactTerasic Support and your request will be transferred to Terasic Design Service.
