Altera DE2-115 Development and Education Board

    :
    : 1,200g

Altera DE2-115 Development and Education Board

Industrial Networking Kit DE2-115 Board

The DE2 series has consistently been at the forefront of educational development boards by distinguishing itself with an abundance of interfaces to accommodate various application needs. Extending its leadership and success, Terasic announces the latest DE2-115 that features the Cyclone IV E device. Responding to increased versatile  low-cost spectrum needs driven by the demand for mobile video, voice, data access, and the hunger for high-quality images, the new DE2-115 offers an optimal balance of low cost, low power and a rich supply of logic, memory and DSP capabilities.

The Cyclone EP4CE115 device equipped on the DE2-115 features 114,480 logic elements (LEs), the largest offered in the Cyclone IV E series, up to 3.9-Mbits of RAM, and 266 multipliers. In addition, it delivers an unprecedented combination of low cost and functionality, and lower power compared to previous generation Cyclone devices.

The DE2-115 adopts similar features from the earlier DE2 series primarily the DE2-70, as well as additional interfaces to support mainstream protocols including Gigabit Ethernet (GbE). A High-Speed Mezzanine Card (HSMC) connector is provided to support additional functionality and connectivity via HSMC daughter cards and cables. For large-scale ASIC prototype development, a connection can be made with two or more FPGA-based boards by means of a HSMC cable through the HSMC connector.


Spacification

The DE2-115 Board

Cyclone IV EP4CE115

         114,480 logic elements (LEs)

         3,888 Embedded memory (Kbits)

         266 Embedded 18 x 18 multipliers

         4 General-purpose PLLs

         528 User I/Os

Configuration Device and USB-Blaster Circuit

         EPCS64 serial configuration device

         On-board USB-Blaster circuitry

         JTAG and AS mode configuration supported

Memory Devices

         128MB (32Mx32bit) SDRAM

         2MB (1Mx16) SRAM

         8MB (4Mx16) Flash with 8-bit mode

         32Kbit EEPROM

Switches and Indicators

         18 switches and 4 push-buttons

         18 red and 9 green LEDs

         Eight 7-segment displays

Audio

         24-bit encoder/decoder(CODEC)

         line-in, line-out, and microphone-in jacks

Display

         16x2 LCD module

On-Board Clocking Circuitry

         Three 50MHz oscillator clock inputs

         SMA connectors (external clock input/output)

SD Card Socket

         Provides SPI and 4-bit SD mode for SD Card access

Two Gigabit Ethernet Ports

         Integrated 10/100/1000 Gigabit Ethernet

         Supports Industrial Ethernet IP cores

172-pin High Speed Mezzanine Card (HSMC)

         Configurable I/O standards (voltage levels: 3.3/2.5/1.8/1.5V)

USB Type A and B

         Provide host and device controller compliant with USB 2.0

         Support data transfer at full-speed and low-speed

         PC driver available

40-pin Expansion Port

         Configurable I/O standards (voltage levels: 3.3/2.5/1.8/1.5V)

VGA-out Connector

         VGA DAC (high speed triple DACs)

DB-9 Serial Connector

         RS232 port with flow control

PS/2 Connector

         PS/2 connector for connecting a PS2 mouse or keyboard to the DE2-115

Remote Control

         Infrared receiver module

TV-in Connector

         TV decoder (NTSC/PAL/SECAM)

Power

         Desktop DC input

         Switching and step-down regulators LM3150MH



Layout


Download

    Documents

    Title Version Size(KB) Date Added Download
    DE2 115 User Manual - 10401 2011-01-07

    CD-ROM

    Title Version Size(KB) Date Added Download
    DE2-115 CD-ROM -   2011-01-07

Demonstrations

  • PS2 Mouse
  • IR Receiver
  • TV Box
  • SD Card Reader
  • SD Card Music Player
  • A Karaoke Machine
  • Music Synthesizer
  • Audio Recording and Playing
  • USB Paintbrush
  • USB Device
  • Web Server

DE2-115 Tools

DE2-115 Control Panel – allows users to access various components on the DE2-115 platform from a host computer.

DE2-115 System Builder

DE2-115 System Builder – a powerful tool that comes with the DE2-115 board. This tool will allow users to create a Quartus II project file on their custom design for the DE2-115 board. The top-level design file, pin assignments, and I/O standard settings for the DE2-115 board will be generated automatically from this tool. In addition, through the GPIO and HSMC connectors you can select various daughter cards in conjunction with the DE2-115 using the DE2-115 System Builder.

The DE2-115 package includes:

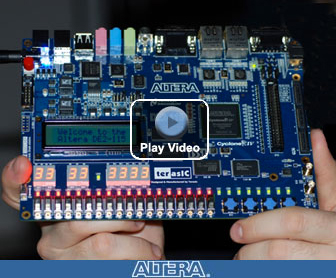

Video Demo : Four-Feed Security System Demonstration

In this demonstration, we observe a four-feed security system design on the DE2-115. One feed is from a DVD player input, and three other feeds come in through 5 megapixel cameras. Several functions are included in this design as well, such as zooming in and out, selecting individual feeds, and setting exposure levels. The DE2-115 is powered by an Altera Cyclone 4 FPGA.

*If the film is unavailable, please kindly try another link below:
http://www.youtube.com/watch?v=RlrAdS8eaxc

Video Demo : 3 Ways to Quickly Adapt to Changing Ethernet Protocols
