Industrial Networking Kit (INK)

가    격 : 견적문의
중    량 : 1,300g

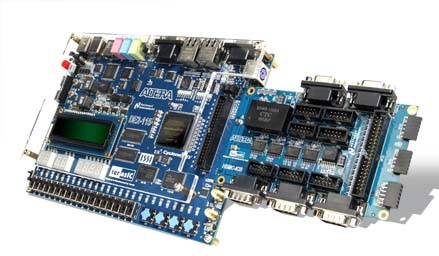

The Industrial Networking Kit (INK) offers a comprehensive development platform for industrial communications and automation applications. The kit consists of the DE2-115 board featuring the Altera Cyclone® IV device and an Industrial Communications Board (ICB-HSMC) that supports RS-485, RS-232, CAN, and additional I/O expansion. The INK gives industrial equipment designers greater flexibility in implementing real-time Ethernet communications with the availability of Industrial Ethernet IP cores.

* Memory Solution for Altera FPGAs                * Power Solution for Altera FPGAs




Specification

The DE2-115 Board

Cyclone® IV EP4CE115

·         114,480 logic elements (LEs)

·         3,888 Embedded memory (Kbits)

·         266 Embedded 18 x 18 multipliers

·         4 General-purpose PLLs

·         528 User I/Os

Configuration Device and USB-Blaster Circuit

·         EPCS64 serial configuration device

·         On-board USB-Blaster circuitry

·         JTAG and AS mode configuration supported

Memory Devices

·         128MB (32Mx32bit) SDRAM

·         2MB (1Mx16) SRAM

·         8MB (4Mx16) Flash with 8-bit mode

·         32Kbit EEPROM

Switches and Indicators

·         18 switches and 4 push-buttons

·         18 red and 9 green LEDs

·         Eight 7-segment displays

Audio

·         24-bit CODEC

·         line-in, line-out, and microphone-in jacks

Display

·         16x2 LCD module

On-Board Clocking Circuitry

·         Three 50MHz oscillator clock inputs

·         SMA connectors (external clock input/output)

SD Card Socket

·         Provides SPI and 4-bit SD mode for SD Card access

Two Gigabit Ethernet Ports

·         Integrated 10/100/1000 Gigabit Ethernet

·         Supports Industrial Ethernet IP cores

DB-9 Serial Connector

·         RS232 port with flow control

PS/2 Connector

·         PS/2 connector for connecting a PS2 mouse or keyboard to the DE2-115

Remote Control

·         Infrared receiver module

TV-in Connector

·         TV decoder (HTSC/PAL/SECAM)

Power

·         Desktop DC input

·         Switching and step-down regulators LM3150MH

ICB-HSMC Board

·         High Speed Mezzanine Card (HSMC) connector for interface conversion

·         Two CAN DB9 connector

·         Two RS-485 DB9 connector

·         RS-232 DB9 connector

·         Two 6-pin SPIO port

·         12-pin SPIO port

·         40-pin expansion port

·         Seven 10-pin headers for supported communication protocols (RS-232, CAN, RS-485) and signal measurement

172-pin High Speed Mezzanine Card (HSMC)

·         Configurable I/O standards (voltage levels: 3.3/2.5/1.8/1.5V)

USB Type A and B

·         Provide host and device controller compliant with USB 2.0

·         Support data transfer at full-speed and low-speed

·         PC driver available

40-pin Expansion Port

·         Configurable I/O standards (voltage levels: 3.3/2.5/1.8/1.5V)

VGA-out Connector

·         VGA DAC (high speed triple DACs)



Layout

Download

Documents

Title Version Size(KB) Date Added Download
DE2-115 User Manual - 8910 2010-08-20
ICB-HSMC User Manual - 2423 2010-08-12

CD-ROM

Title Version Size(KB) Date Added Download
INK System CD-ROM -   2010-09-09

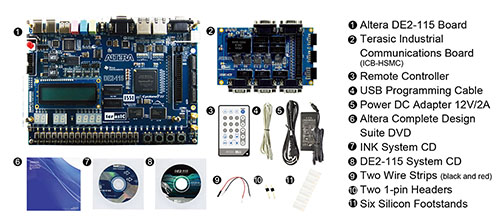

The INK package includes:
