Terasic > FPGA Board > Cyclone 3n4

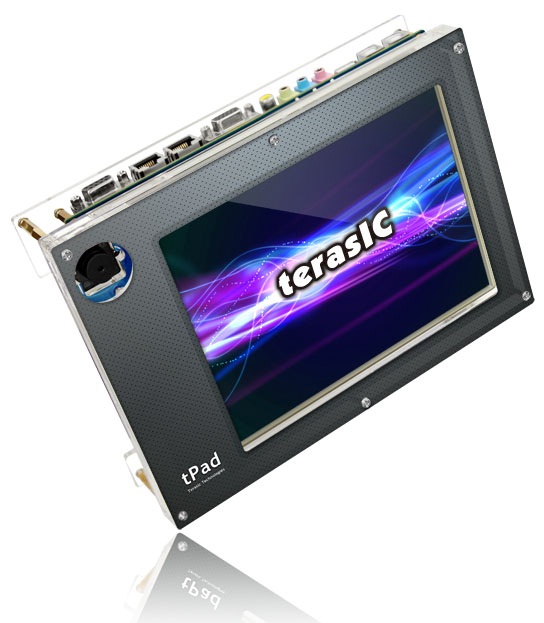

tPad Multimedia Development Kit

°¡    °Ý : °ßÀû¹®ÀÇ
Áß    ·® : 3,000g


The tPad Multimedia Development Kit, with the DE2-115 board targeting the Cyclone IV FPGA, as well as an LCD multimedia touch panel and a 5-Megapixel digital image sensor module being equipped, is a comprehensive design environment with everything embedded developers need to create multimedia-based systems.

The tPad delivers an integrated platform that includes hardware, design tools, intellectual property (IP) and reference designs for developing embedded software and hardware platform in a wide range of applications. With these provided one-stop service resources, users could greatly reduce development threshold and cycle.

 £ª Memory Solution for Altera FPGAs                     £ª Power Solution for Altera FPGAs



DE2-115 Development Board

Cyclone IV EP4CE115 FPGA

  • 114,480 logic elements (LEs)
  • 432 M9K memory blocks
  • 3,888 Embedded memory (Kbits)
  • 266 Embedded 18 x 18 multipliers
  • 4 General-purpose PLLs
  • 528 User I/Os

Configuration

  • EPCS64 serial configuration device
  • On-board USB-Blaster circuitry
  • JTAG and AS mode configuration supported

Memory Devices

  • 128MB SDRAM
  • 2MB SRAM
  • 8MB FLASH with 8-bit mode
  • 32Kbit EEPROM

Switches and Indicators

  • 18 switches and 4 Push-buttons
  • 18 red and 9 green LEDs
  • Eight 7-segment displays

Audio

  • 24-bit encoder/decoder (CODEC)
  • Line-in, line-out, and microphone-in jacks

Display

  • 16x2 LCD module

On-Board Clocking Circuitry

  • Three 50MHz oscillator clock inputs
  • SMA connectors (external clock input/output)

SD Card Socket

  • Provides SPI and 4-bit SD mode for SD Card access

Two Gigabit Ethernet Ports

  • Integrated 10/100/1000 Gigabit Ethernet

172-pin High Speed Mezzanine Card (HSMC)

  • The default I/O standard (2.5V) on HSMC should not be adjusted when the LCD touch screen module is used

DB-9 Serial Connector

  • RS-232 port with flow control

PS/2 Connector

  • PS/2 connector for connecting a PS/2 mouse or keyboard

Remote Control

  • Infrared receiver module

TV-in Connector

  • TV decoder (NTSC/PAL/SECAM)

Power

  • Desktop DC input
  • Switching and step-down regulators LM3150MH

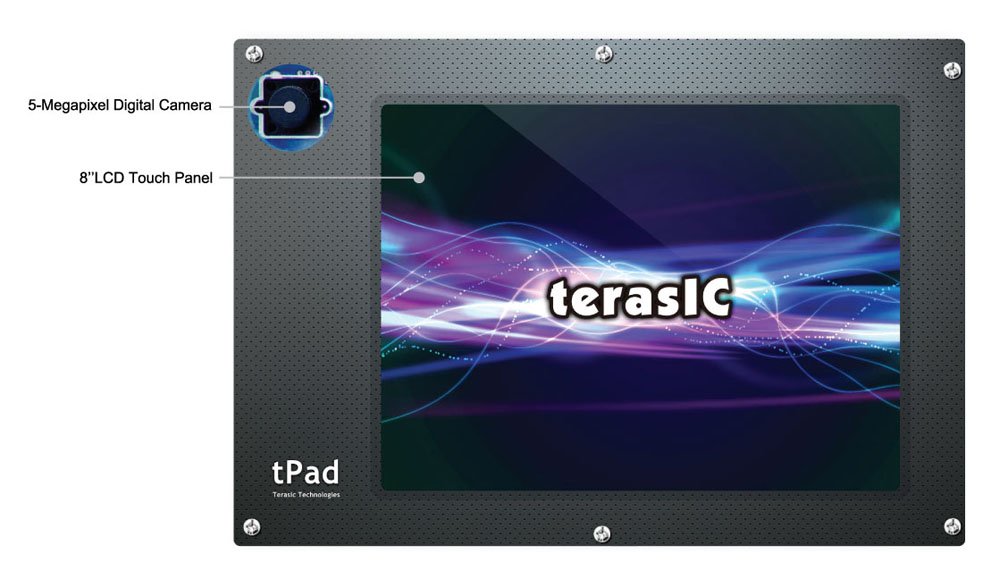

LCD Touch Screen Module

  • 8-inch TFT LCD with pixel resolution of 800*600
  • Totally 262K colors ( R , G , B 6 bit digital each)
  • Integrated LED backlight module and power circuit
  • 4-line resistive touch panel with a 12-bit AD7843 A/D converter

5-Megapixel Digital Image Sensor Module

  • 2,592H x 1,944V active pixels with Bayer color arrangement
  • Programmable frame rate up to 70(VGA mode)
  • Snapshot mode to take frames on demand

Simple two-wire serial control interface

USB Type A and B

  • Provide host and device controller compliant with USB 2.0
  • Support data transfer at full-speed and low-speed
  • PC driver available

40-pin Expansion Port

  • Configurable I/O standards (voltage levels: 3.3/2.5/1.8/1.5V)

VGA-out Connector

  • VGA DAC (high speed triple DACs)

Layout

Download

Documents

Title Version Size(KB) Date Added Download
tPad_User_manual - 3024 2011-03-28
DE2_115_User_manual - 8910 2010-09-17

CD-ROM

Title Version Size(KB) Date Added Download
tPad System CD -   2010-11-16

Demonstrations

  • tPad Camera
  • tPad Picture Viewer
  • tPad VIP
  • tPad Starter
  • tPad_Selector
  • tPad_VIP_Camera
  • PS2 Mouse
  • IR Receiver
  • TV Box
  • SD Card Reader
  • SD Card Music Player
  • A Karaoke Machine
  • Music Synthesizer
  • Audio Recording and Playing
  • USB Paintbrush
  • USB Device
  • Web Server

tPad tools

tPad application selector utility – the Cyclone IV E Version of the Nios II Embedded Evaluation Kit.

DE2-115 Control Panel – allows users to access various components on the DE2-115 platform from a host computer.

DE2-115 System Builder – a powerful tool that comes with the tPad kit (originally developed for DE2-115). This tool allows users to create customizable Quartus II projects depending on their requirements for the tPad board. The top-level design file, pin assignments, and I/O standard settings for the DE2-115 board will be generated automatically from this tool. In addition, through the GPIO and HSMC connectors you can select various daughter cards in conjunction with the tPad using the DE2-115 System Builder(Here, the daughter card connected to HSMC should be LTC in order for the tPad to work properly).

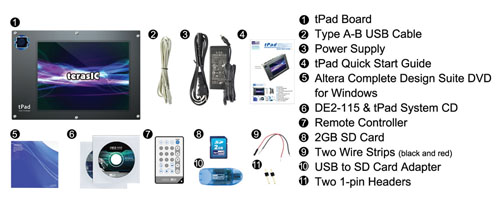

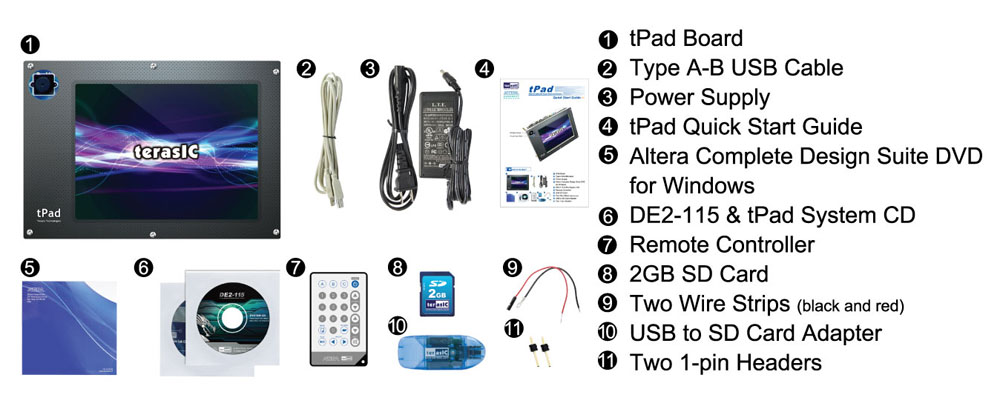

The tPad package includes:
