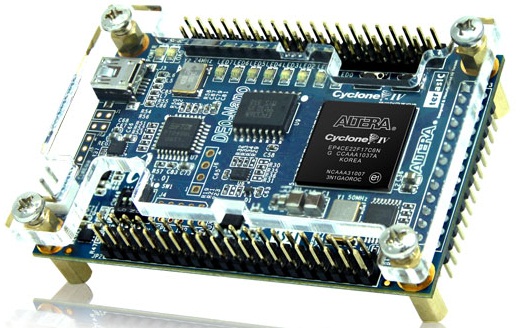

DE0-Nano Development and Education Board

가    격 : 견적문의
중    량 : 500g




*주문시 Academic price 요청하시는 경우

 확인 하여 대학 특가 140,000원(VAT별도)에 공급하여 드립니다.

The DE0-Nano board introduces a compact-sized FPGA development platform suited for prototyping circuit designs such as robots and "portable" projects. The board is designed to be used in the simplest possible implementation targeting the Cyclone IV device up to 22,320 LEs.

The DE0-Nano has a collection of interfaces including two external GPIO headers to extend designs beyond the DE0-Nano board, on-board memory devices including SDRAM and EEPROM for larger data storage and frame buffering, as well as general user peripheral with LEDs and push-buttons.

The advantages of the DE0-Nano board include its size and weight, as well as its ability to be reconfigured without carrying superfluous hardware, setting itself apart from other general purpose development boards. In addition, for mobile designs where portable power is crucial, the DE0-Nano provides designers with three power scheme options including a USB mini-AB port, 2-pin external power header and two DC 5V pins.

* Memory Solution for Altera FPGAs                              * Power Solution for Altera FPGAs






DE0-Nano Development and Education Board

Cyclone® IV EP4CE22F17C6N FPGA

  • 22,320 Logic elements (LEs)
  • 594 Embedded memory (Kbits)
  • 66 Embedded 18 x 18 multipliers
  • 4 General-purpose PLLs
  • 153 Maximum FPGA I/O pins

Configuration Status and Set-Up Elements

  • On-board USB-Blaster circuit for programming
  • Altera serial configuration device – EPCS16

Expansion Header

  • Two 40-pin Headers (GPIOs) provides 72 I/O pins
  • Two 5V power pins, two 3.3V power pins and four ground pins
  • One 26-pin header provides 16 digital I/O pins and 8 analog input pins to connect to analog sensors, etc

Memory Devices

  • 32MB SDRAM
  • 2Kb I2C EEPROM

General User Input/Output

  • 8 green LEDs
  • 2 debounced push-buttons
  • 4 dip switches

G-Sensor

  • ADI ADXL345, 3-axis accelerometer with high resolution (13-bit)

A/D Converter

  • NS ADC128S022, 8-Channel, 12-bit A/D Converter
  • 50 ksps to 200 ksps

Clock System

  • On-board 50MHz clock oscillator

Power Supply

  • USB Type mini-AB port (5V)
  • Two DC 5V pins of the GPIO headers (5V)
  • 2-pin external power header (3.6-5.7V)

Connectivity

  Connect D5M

  • Connect with 5-megapixel CMOS Sensor (D5M)

  Connect LTM

  • Connect with LCD Touch Screen Module (LTM)

  Connect THDB-ADA

  • Connect with Analog to Digital/Digital to Analog Conversion Daughter Card (THDB-ADA)

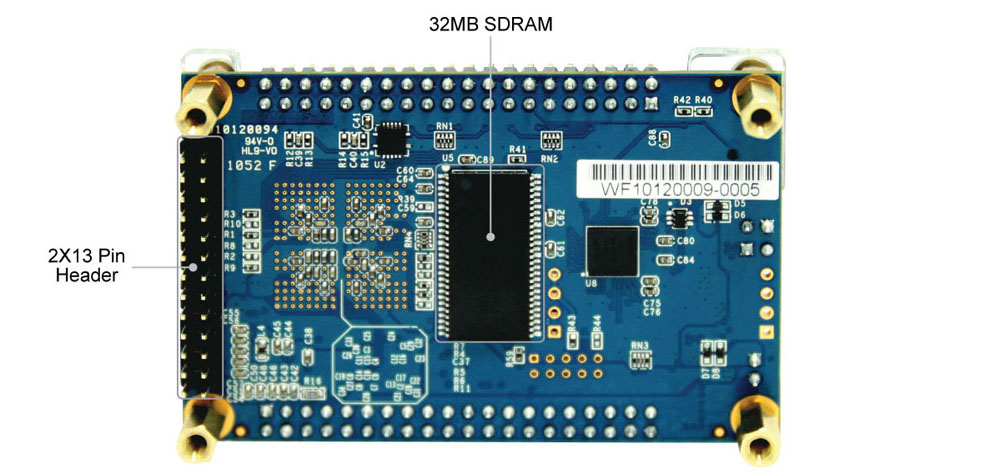

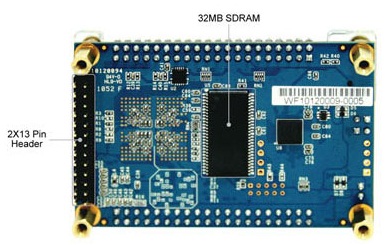

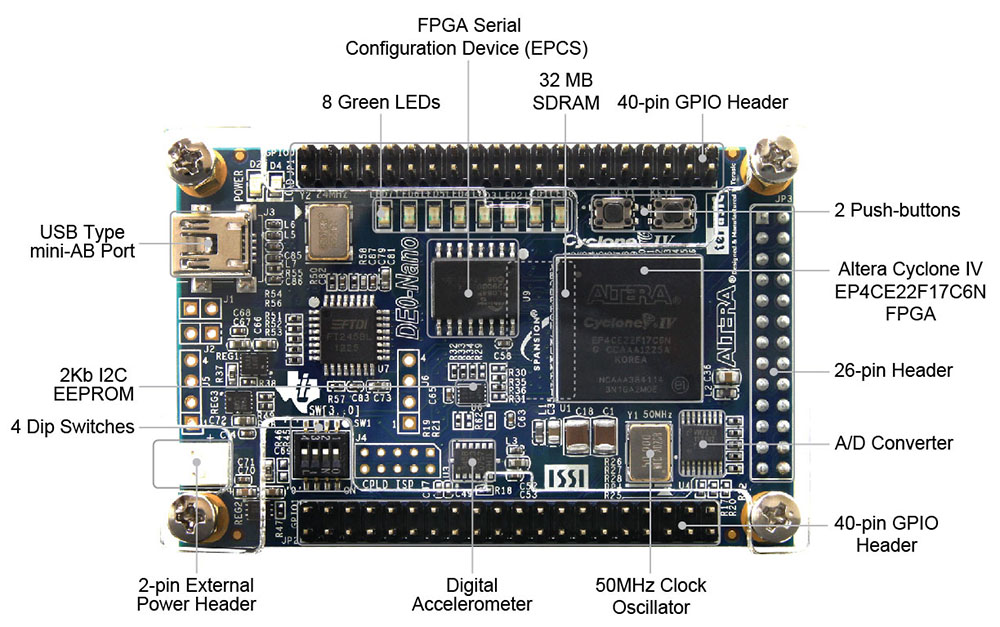

Layout


Download

Documents

Title Version Size(KB) Date Added Download
DE0_Nano_User_manual - 8833 2011-04-08

CD-ROM

Title Version Size(KB) Date Added Download
DE0_Nano -   2011-01-25


Demonstrations

DE0-Nano Control Panel

  • Allows users to access various components on the DE0-Nano board from a host computer.



DE0-Nano System Builder

  • This tool will allow users to create a Quartus II project on their custom design for the DE0-Nano board with the top-level design file, pin assignments, and I/O standard settings automatically generated.

The DE0-Nano package includes:

DE0-Nano Demonstration

*If the film is unavailable, please kindly try another link below:
http://www.youtube.com/watch?v=SPXXpBRVLsE
