Cyclone III Video Development System

가    격 : 견적문의
중    량 : 3,500g

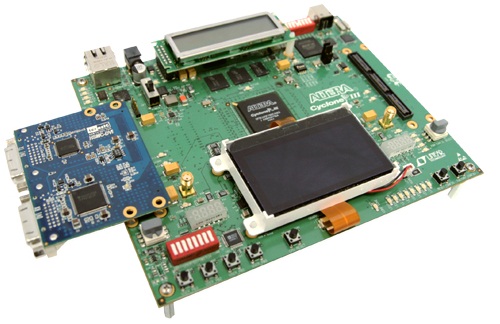

The Cyclone III Video Development System is an ideal video processing platform for high-end video applications (including DVI and HDMI). Terasic recognized for its strong design expertise in high-end video, imaging and multimedia products have made available a video development package that targets video processing development using a Cyclone III device. The package includes a Cyclone III FPGA development kit (DK-DEV-3C120N) featuring an EP3C120 FPGA device with two available HSMC connectors to allow additional functionality and connectivity via HSMC daughter boards.

The DVI-HSMC daughter card part of the bundled package will allow developers to access high quality and high resolution video signals that can support resolution up to 1600x1200. A complete DVI video controller design with source code is provided

The development can also allow users to experience advanced image processing designs incorporating VIP (Altera’s Video and Image Processing Suite MegaCore Functions).

Specification

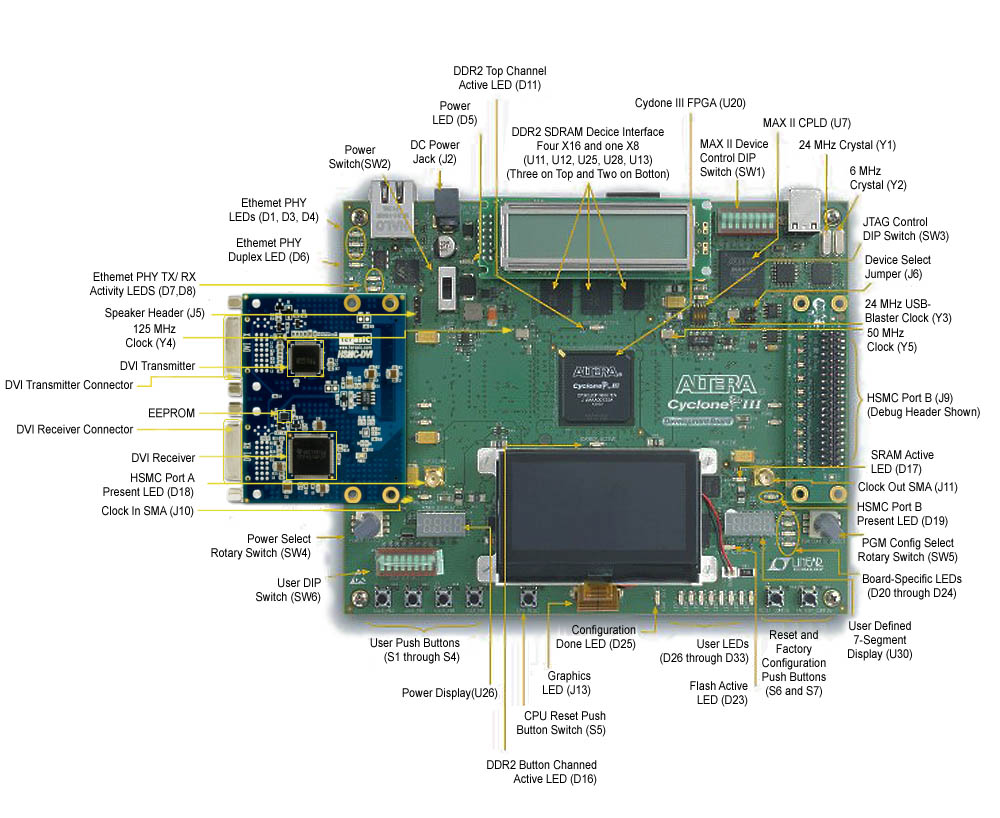

Altera Cyclone III Development Board

  • Cyclone III development board (DK-DEV-3C120N)
    • Cyclone III EP3C120F780 FPGA
    • Embedded USB-Blaster circuitry (includes an Altera MAX II CPLD) - allowing download of FPGA configuration files via the flash device or the host computer
  • Memory
    • 256 Mbytes of dual-channel DDR2 SDRAM with ECC
    • 8 Mbytes of synchronous SRAM
    • 64 Mbytes of flash
  • Communication ports
    • 10/100/1000 Ethernet
    • USB 2.0
  • Power and analog devices
    • Switching power supply
    • Switching and step-down regulators
    • Analog to digital converter
    • LDO regulators
  • Clocking
    • 50-MHz and 125-MHz on-board oscillators
    • SMA inputs/outputs
    • Inputs/outputs for the two HSMC connectors
    • Various buttons, switches, and indicators
  • Display
    • 128 x 64 graphics LCD
    • 2-line x 16-character LCD
  • Connectors
    • Two HSMCs
    • USB type B
  • Debug tools
    • Three HSMC debug cards (two loop-back and a debug header)
  • Cables and power/analog
    • 14-V–20-V DC input
    • On-board power measurement circuitry
    • 19.8 W per HSMC interface
    • Power cord with plug adapters (US, UK, EU)
  • Cyclone III FPGA Development Kit, CD-ROM
    • Design examples for the Cyclone III FPGA development board
    • Complete documentation
      • User guide
      • Reference manual
      • Board schematic and layout
      • Bill of materials
      • Product and partner information
  • Altera Complete Design Suite DVD
    • Quartus® II design software
      • Subscription Edition (optional feature, available for purchase)
      • Web Edition (no charge, Windows only)
    •  ModelSim®-Altera software
      • Altera Edition (optional feature, available for purchase)
      • Web Edition (no charge, Windows only)
    •  MegaCore® IP Library - OpenCore Plus evaluation
      • Includes Nios II processor (evaluation license)
    • Nios II Embedded Design Suite, Evaluation Edition (no charge)
    • DSP Builder (optional feature, available for purchase)
    • Video demos of Quartus II software and Nios II embedded processor

DVI-HSMC Card

  • Digital Transmitter
    • One DVI transmitter with single transmitting port
    • Digital Visual Interface (DVI) Compliant
    • Supports resolutions from VGA to UXGA (25 MHz – 165 MHz Pixel Rates)
    • Universal Graphics Controller Interface
      • 12-Bit, Dual-Edge and 24-Bit, Single-Edge Input Modes
      • Adjustable 1.1 V to 1.8 V and Standard 3.3 V CMOS Input Signal Levels
      • Fully Differential and Single-Ended Input Clocking Modes
      • Standard Intel 12-Bit Digital Video Port Compatible as on Intel™ 81x Chipsets
    • Enhanced PLL Noise Immunity
      • On-Chip Regulators and Bypass Capacitors for Reducing System Costs
    • Enhanced Jitter Performance
      • No HSYNC Jitter Anomaly
      • Negligible Data-Dependent Jitter
        • Programmable Using I²C Serial Interface
        • Single 3.3-V Supply Operation
  • Digital Receiver
    • One DVI receiver with sinle receiving port
    • Supports UXGA Resolution (Output Pixel Rates Up to 165 MHz)
    • Digital Visual Interface (DVI) Specification Compliant
    • True-Color, 24 Bit/Pixel, 16.7M Colors at 1 or 2-Pixels Per Clock
    • Laser Trimmed Internal termination Resistors for Optimum Fixed Impedance Matching
    • 4x Over-Sampling
    • Reduced Ground Bounce Using Time Staggered Pixel Outputs
    • Lowest Noise and Best Power Dissipation Using TI PowerPAD™ Packaging

Layout


Download

Documents

Title Version Size(KB) Date Added Download
Cyclone III FPGA Development Kit User Guide - 1525 2010-04-01
HSMC-DVI User Guide - 1195 2010-04-01

CD-ROM

Title Version Size(KB) Date Added Download
Cyclone III FPGA Development Kit CD-ROM -   2010-05-24
DVI-HSMC board CD-ROM -   2010-05-24

Kit Contents
  • Cyclone III development board (DK-DEV-3C120N)
  • DVI-HSMC board
  • Loopback and Breakout board
  • Cables and 16-V power supply
  • Cyclone III FPGA Development Kit, CD
  • DVI-HSMC board CD
