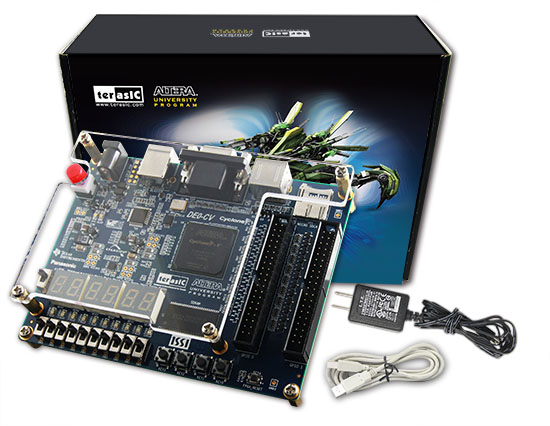

DE0-CV Board

가    격 : 견적문의
중    량 : 1g



The optimized DE0-CV is a robust hardware design platform which uses the Altera Cyclone V FPGA device as the center control for its peripherals such as the on-board USB Blaster, video capabilities and much more. With this amazing platform, you will get the power and the performance you need for high-volume applications, including prototyping bridging, motor control drives, capture cards and handheld devices at the lowest costs. The DE0-CV is the perfect showcasing and evaluation solution which we’ve kept all the prototyping features on a small 128x99mm development board.



The DE0-CV contains all components needed to use the board in conjunction with a computer that runs the Microsoft Windows XP or later.











This board has many features that allow users to implement a wide range of designed circuits, from simple circuits to various multimedia projects.

The following hardware is provided on the board:

FPGA Device

  • Cyclone V 5CEBA4F23C7N Device
  • 49K Programmable Logic Elements
  • 3080 Kbits embedded memory
  • 4 Fractional PLLs
  • 1 Hard Memory Controllers

Configuration and Debug

  • Serial Configuration device – EPCS64 on FPGA
  • On-Board USB Blaster (Normal type B USB connector)
  • JTAG and AS mode configuration supported

Memory Device

  • 64MB SDRAM, x16 bits data bus

Communication

  • PS/2 mouse/keyboard
  •

Connectors

  • Two 2x20 GPIO Header

Display

  • 4-bit Resistor VGA

Micro SD Card Socket

  • Provides SPI and 4-bit SD mode for Micro SD Card access

Switches/Buttons/LEDs

  • 10 LEDs
  • 10 Slide Switches
  • 4 Debounced Push Buttons
  • 1 CPU reset Push Buttons
  • Six 7-Segments

Power

  • 5V DC input


CD-ROM

TitleVersionSize(KB)Date AddedDownload
Quartus Download  2015-03-17
DE0-CV CD-ROM1.2.0 2015-06-03
DE0-CV Control Panel1.0.1 2015-05-04





Other course resources you might interested:

School: Cornell UniversitySenior Lecturer: Bruce Land
Course 1: - ECE5760 Advanced Microcontroller Design and system-on-chip [DE2]
Course 2: - ECE 5760 Simplified Floating Point for DSP [DE2]



Documents

TitleVersionSize(KB)Date AddedDownload
DE0-CV User Manual1.1.247382015-05-08

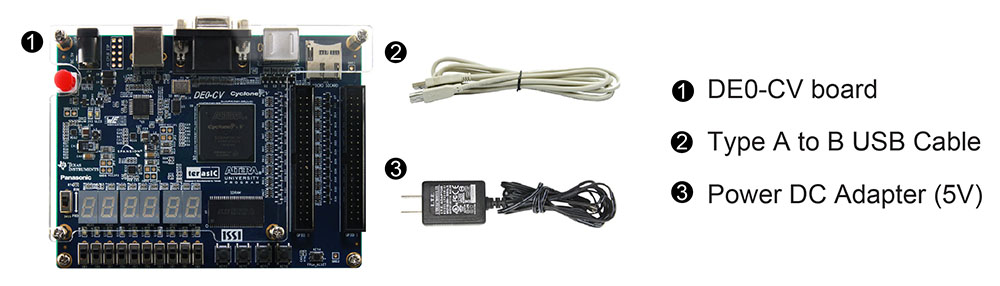

  • The DE0-CV board
  • 5V DC Power Supply
  • Type A Male to Type B Male USB Cable
