Arria II GX Video Development System

°¡    °Ý : °ßÀû¹®ÀÇ
Áß    ·® : 2,800g


The Arria II GX Video Development System is an ideal video processing platform for high-end video applications. Terasic recognized for its strong design expertise in high-end video, imaging and multimedia products have made available a video development package that targets video processing development using an Arria II GX device. The package includes an Arria II GX FPGA development kit (DK-DEV-2AGX125N) featuring an EP2AGX FPGA device with HSMC connectors to allow additional functionality and connectivity via HSMC daughter boards. The Arria II GX FPGA development kit delivers a complete PCI Express-based development platform. This interface uses the Arria II GX device¡¯s PCI Express hard IP to accelerate development time for high-volume PCI Express applications including add-in cards, host bus adapters, graphics cards, and high-end servers. Furthermore, the board includes an abundant amount of memory including on-board DDR3 device and DDR2 SODIMM, creating a complete integrated memory interface solution for memory-intensive applications.

The DVI-HSMC daughter card part of the bundled package will allow developers to access high quality and high resolution video signals that can support resolution up to 1600x1200. A complete DVI video controller design with source code is provided.

The development can also allow users to experience advanced image processing designs incorporating VIP (Altera¡¯s Video and Image Processing Suite MegaCore Functions).

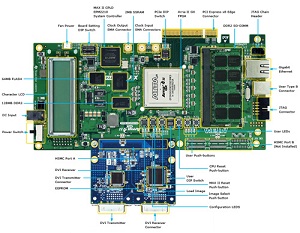

Arria II GX Development Board:

Arria II GX EP2AGX125EF35 FPGA

¡¤         124,100 logic elements (LEs)

¡¤         49,640 adaptive logic modules (ALMs)

¡¤         8,121 Kb on-chip memory

¡¤         12 high-speed transceivers

¡¤         6 phase-locked loops (PLLs)

¡¤         576 18x18 multipliers

¡¤         0.9V core power

Max¢ç II EPM2210F256 CPLD

¡¤         2.5V core power

On-board ports

¡¤         One HSMC expansion port

¡¤         One gigabit Ethernet port

PCI Express x8 Edge Connector

¡¤         Support connection speed of Gen1 at 2.5Gbps/lane

¡¤         Connection established with PC motherboard with x8 PCI Express slot

On-board Memory

¡¤         128MB 16bit DDR3 device

¡¤         1GB 64bit DDR2 SO-DIMM

¡¤         2MB SSRAM

¡¤         64MB FLASH

FPGA Configuration Circuitry

¡¤         MAX II CPLD and flash fast passive parallel configuration

¡¤         On-board USB-Blaster¢â circuitry using the Quartus II Programmer

On-board Clocking Circuitry

¡¤         Four on-board oscillators

o    100MHz

o    Programmable oscillator, default frequency 125MHz

o    Programmable oscillator, default frequency 100MHz

o    155.52MHz

¡¤         SMA connectors for external LVPECL clock input

¡¤         SMA connector for clock output

General User I/O

¡¤         LEDs/displays

o    Four user LEDs

o    Two-line character LCD display

o    One configuration-done LED

o    One HSMC interface transmit/receive LED (Tx/Rx)

o    Three PCI Express LEDs

o    Five Ethernet LEDs

Push-buttons

¡¤         One user reset (CPU reset)

¡¤         One MAX II CPLD reset

¡¤         One load image (program FPGA from flash)

¡¤         One image select (select image to load from flash)

¡¤         Two general user push-buttons

 DIP Switches

¡¤         Four user DIP switches

¡¤         Eight MAX II device control DIP switches



Power Supply

¡¤         14V to 20V DC input

¡¤         PCI Express edge connector power

¡¤         On-board power measurement circuitry

Arria II GX FPGA Development Kit CD-ROM

¡¤         Design examples

o    Board Update Portal, featuring the Nios¢ç II processor web server and remote system update

o    Board test system

Altera's Complete Design Suite DVD

¡¤         Quartus II Software Development Kit Edition, includes support for Arria II GX FPGAs

o    Quartus II software license is not included as part of this kit

¡¤         Nios II Embedded Design Suite

¡¤         MegaCore¢ç IP Library includes PCI Express, Triple Speed Ethernet, SDI, and DDR3 High-Performance Controller IP cores

IP evaluation available through OpenCore Plus

DVI-HSMC Card:

Digital Transmitter

¡¤         One DVI transmitter with single transmitting port

¡¤         Digital Visual Interface (DVI) Compliant

¡¤         Supports resolutions from VGA to UXGA (25 MHz – 165 MHz Pixel Rates)

¡¤         Universal Graphics Controller Interface

o    12-Bit, Dual-Edge and 24-Bit, Single-Edge Input Modes

o    Adjustable 1.1 V to 1.8 V and Standard 3.3 V CMOS Input Signal Levels

o    Fully Differential and Single-Ended Input Clocking Modes

o    Standard Intel 12-Bit Digital Video Port Compatible as on Intel¢â 81x Chipsets

¡¤         Enhanced PLL Noise Immunity

o    On-Chip Regulators and Bypass Capacitors for Reducing System Costs

¡¤         Enhanced Jitter Performance
