DE5a-Net Arria 10 FPGA Development Kit

°¡    °Ý : °ßÀû¹®ÀÇ
Áß    ·® : 1g

The Terasic DE5a-Net Arria 10 GX FPGA Development Kit provides the ideal hardware solution for designs that demand high capacity and bandwidth memory interfacing, ultra-low latency communication, and power efficiency. With a full-height, 3/4-length form-factor package, the DE5a-Net is designed for the most demanding high-end applications, empowered with the top-of-the-line Altera Arria 10 GX, delivering the best system-level integration and flexibility in the industry.

The Arria¢ç 10 GX FPGA features integrated transceivers that transfer at a maximum of 12.5 Gbps, allowing the DE5a-Net to be fully compliant with version 3.0 of the PCI Express standard, as well as allowing an ultra low-latency, straight connections to four external 40G QSFP+ modules. Not relying on an external PHY will accelerate mainstream development of network applications enabling customers to deploy designs for a broad range of high-speed connectivity applications. For designs that demand high capacity and high speed for memory and storage, the DE5a-Net delivers with two independent banks of DDR3 SO-DIMM RAM, four independent banks of QDRII+ SRAM, high-speed parallel flash memory. The feature-set of the DE5a-Net fully supports all high-intensity applications such as low-latency trading, cloud computing, high-performance computing, data acquisition, network processing, and signal processing.


(Music source: Marine North  ; Background animation: AA VFX  , Nick Avloshenko  ,Tommy Video  )



(Music source: Marine North   ; Background animation: AA VFX   , Nick Avloshenko   ,Tommy Video   )



 panasonic  ¡¸Micon logo¡¹îÜÓñø¸â¤ãüÌ¿Íý
SRAM Memory Solution    Capacitive Component Solution  Flash Solution

   johansondielectrics
Power Solution  Inductive Component Solution  X2Y Power Decoupling Solution













 Clock Solution






FPGA

  • Altera Arria 10 GX FPGA (10AX115N3F45E2SG)

£ª FPGAs in Higher speed grade or with less LEs are also available. Please contact Terasic sales team.

FPGA Configuration

  • On-Board USB Blaster II or JTAG header for FPGA programming
  • Fast passive parallel (FPPx32) configuration via MAX II CPLD and flash memory

Memory

  • 256MB FLASH
  • 2 Independent DDR3 SODIMM Sockets, up to 8 GB 933 MHz or 4GB 1066MHz
  • 4 Independent 550 MHz QDRII+SRAMs, 18-bits data bus and 72Mbit for each ( * )

* The performance of QDRII+ depends on the memory IP and the speed grade of Arria 10 device.
   For E1 speed grade, the QDRII+ is capable of running at 550MHz with Altera QDRII+ IP.
   For I2 speed grade, the max. frequency of QDRII+ is 467MHz.

Communication and Expansion

  • Four QSFP+ connectors
  • PCI Express (PCIe) x8 edge connector (includes Windows PCIe drivers)
  • One RS422 expansion header

Others

  • General user input / output:
    • 2 LEDs
    • 1 Bracket LED Array
    • 4 push-buttons
    • 2 slide switches
    • SMA clock input / output
  • On-Board Clock
    • 50MHz Oscillator
    • Programmable Clock Generator
  • System Monitor and Control

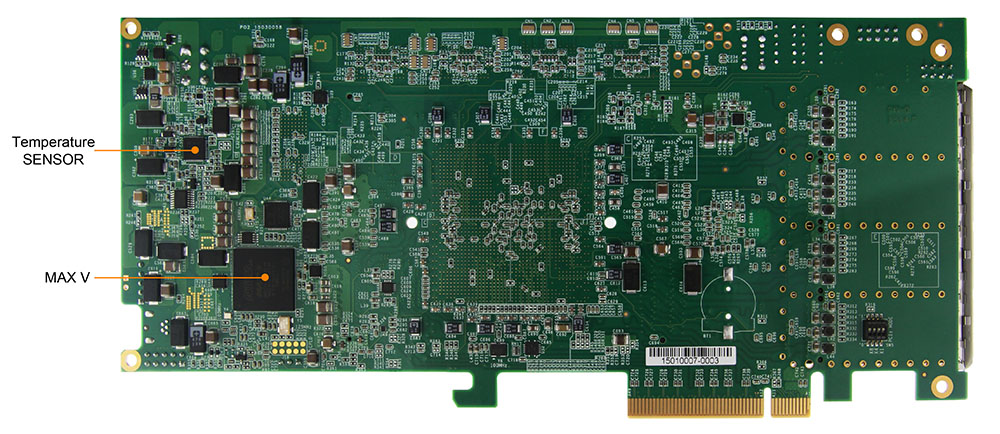

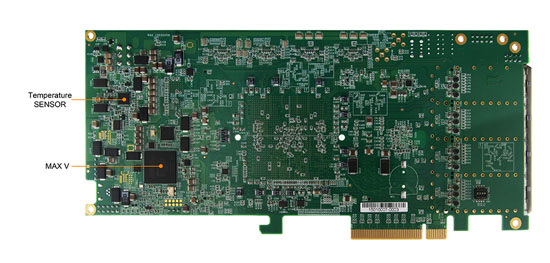

    • Temperature sensor
    • Power Monitor
    • Fan control
  • Power
    • PCI Express 6-pin power connector, 12V DC Input
    • PCI Express edge connector power
  • Mechanical Specification
    • PCI Express standard height and 3/4-length

  • Size£º240*106.65 mm




Documents

TitleVersionSize(KB)Date AddedDownload
DE5a-Net User Manual 1.3 101142016-07-19

CD-ROM

TitleVersionSize(KB)Date AddedDownload
DE5a-Net (10AX115N3F45I2SG) CD-ROM 1.0.2  2016-09-02
DE5a-Net (10AX115N2F45E1SG) CD-ROM 1.0.1  2016-09-02

  1. DE5a-Net Development Board
  2. USB to USB Mini Cable
  3. DDR3 2133 4GB SO-DIMM x2
  4. Screw & Copper Pillar Package
  5. AC Power Cord (Type B North American Plug)
  6. PCIe Bracket (Installed)
  7. Power Supply & Power Cable
  8. Fan (installed)
  9. DE5a-Net Quick Start Guide
  • Quartus design software license is not included in this kit.
