Altera DSP Development Kit, Stratix V Edition

가    격 : 견적문의
중    량 : 100g

Altera Stratix V GX FPGA Development Kit

The DSP Development Kit, Stratix® V Edition provides a complete design environment that includes all the hardware and software you need to begin developing DSP-intensive FPGA designs immediately. The development kit is RoHS compliant. You can use this development kit to do the following:

  • Develop and test PCI Express® (PCIe® ) designs at data rates up to Gen3 using the PCIe short card form factor-compliant development board
  • Develop and test memory subsystems for DDR3 or QDR II memories
  • Use the high-speed mezzanine card (HSMC) connectors to interface to one of over 35 different HSMCs provided by Altera partners, supporting protocols such as Serial RapidIO® , 10-Gbps Ethernet, SONET, CPRI, OBSAI, and others

Featured device:

  • Stratix V GS FPGA: 5SGSMD5K2F40C2N

Configuration, status, and setup elements

  • JTAG
  • On-board USB-BlasterTM II cable
  • Fast passive parallel (FPP) configuration via MAX® V device and flash memory
  • One reset config push button
  • One CPU reset push button
  • Two configuration push buttons

Clocks

  • 50-MHz and 125-MHz programmable oscillators
  • SMA input (LVPECL)

General user input and output

  • 10/100/1000Mbps Ethernet PHY (SGMII) with RJ-45 (copper) connector
  • 16x2 character LCD
  • One 8-position dual in-line package (DIP) switch
  • Sixteen user LEDs
  • Three user push buttons

Memory devices

  • DDR3 SDRAM (1,152 MB, x72-bit wide)
  • QDR II+ SRAM (4.5 MB, 2-Mb x18-bit wide)
    • Footprint compatible to QDR II 4-Mb x18-bit wide
  • RLDRAM II (72-Mbyte CIO RLDRAM II with an 18-bit data bus)

Component and interfaces

  • PCIe x8 edge connector
  • Two HSMC connectors
  • SMB for serial digital interface (SDI) input and output
  • QSFP optical cage
  • 10/100/1000Mbps Ethernet PHY (SGMII) with RJ-45 (copper) connector

Power

  • Laptop DC input
  • PCIe edge connector
  • Nios® II processor web server and remote system update

Stratix V GX FPGA Development Board Block Diagram

block diagram

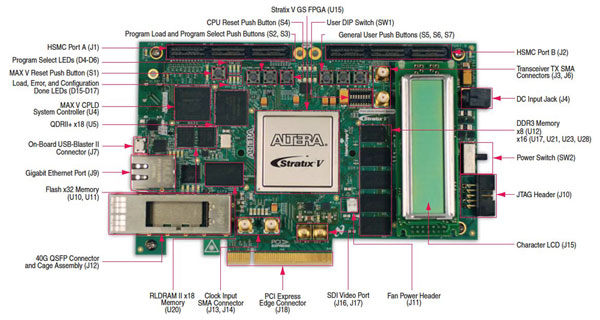

layout

Documents

TitleVersionSize(KB)Date AddedDownload
DSP Development Kit, Stratix V Edition FPGA Development Board Reference Manual (PDF) 2012-12-10
DSP Development Kit, Stratix V Edition User Guide (PDF) 2012-12-10

CD-ROM

TitleVersionSize(KB)Date AddedDownload
Kit installation 2012-12-10

Please note that all the source codes are provided "as is". For further support or modification, please contactTerasic Support and your request will be transferred to Terasic Design Service.
More resources about IP and Dev. Kit are available on Altera User Forums.

  • Loopback and debug HSMC cards
  • Power adapter and cables
  • Complete documentation
    • User guide
    • Reference manual
    • Board schematics and layout design files
  • GUI-based Board Test System
    • Includes complete Quartus II software projects with open source RTL
  • Board Update Portal
    • Includes complete Quartus II software projects with open source RTL
  • Quartus II design software, Development Kit Edition (DKE)
    • License to use full version of Quartus II software for one year
