Altera Stratix V Advanced Systems Development Kit

가    격 : 견적문의
중    량 : 100g

Altera Stratix V Advanced Systems Development Kit

The Stratix® V Advanced Systems Development Kit is a complete systems design environment that includes both the hardware and software needed to begin architecture development and system design using Stratix V FPGAs. The PCI Express® (PCIe® )-based form-factor board combined with a one-year license for the Quartus® II software provide all that is needed to begin architecture development for a variety of applications. You can use this development kit to:

  • Prototype and breadboard designs that take advantage of the widest bandwidth PCIe Gen3, x16 lane interfaces
  • Develop and test memory subsystems consisting of DDR3, QDR II+, and MoSys® High Density serial interface memory
  • Take advantage of the modular and scalable design by using the high-speed mezzanine card (HSMC) connectors to interface to one of over 40 different HSMCs provided by Altera partners and supporting protocols such as Serial RapidIO®, 10-Gbps Ethernet (10GbE), SONET, Common Public Radio Interface (CPRI), OBSAI, and many others
  • Utilize many third-party FMC modules to further expand connectivity to additional standard high-rate protocol modules like SFP+, QSFP, multi-rate SDI, DVB, and Ethernet AVB
  • Combine all of these capabilities to prototype and demonstrate a full multi-FPGA complex processing system

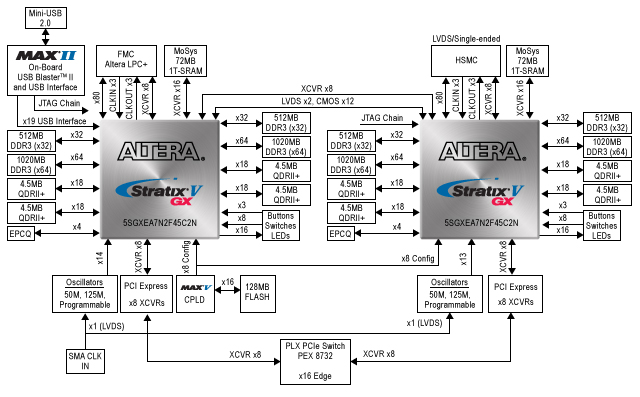

block diagram

Documents

TitleVersionSize(KB)Date AddedDownload
Stratix V Advanced Systems Development Board Reference Manual 2013-01-04
Stratix V Advanced Systems Development Board User Guide (PDF) 2013-01-04

CD-ROM

TitleVersionSize(KB)Date AddedDownload
Kit installation 2013-01-04

Please note that all the source codes are provided "as is". For further support or modification, please contactTerasic Support and your request will be transferred to Terasic Design Service.
More resources about IP and Dev. Kit are available on Altera User Forums.

  • Power adapter and cables
  • Stratix V Advanced Systems Development Kit software content
    • Complete documentation
      • User guide
      • Reference manual
      • Board schematics and layout design files
    • GUI-based Board Test System
      • Includes complete Quartus II projects with open source RTL
    • Quartus II design software, Development Kit Edition (DKE)
      • License to use full version of Quartus II software for one year
