Altera Transceiver Signal Integrity Development Kit, Stratix V GX Edition

가    격 : 견적문의
중    량 : 100g

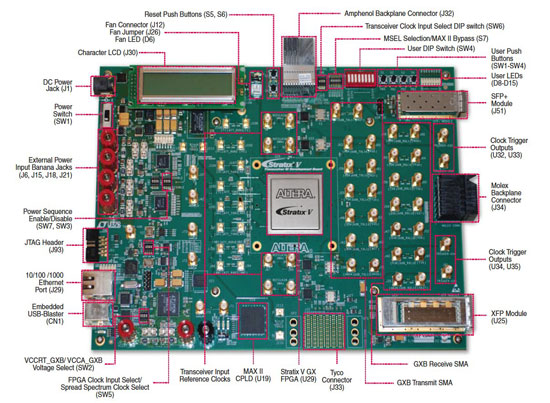

Altera® Stratix® V GX Transceiver Signal Integrity (SI) Development Kit

The Altera® Stratix® V GX Transceiver Signal Integrity (SI) Development Kit provides a platform for electrical compliance testing and interoperability analysis. The accessibility to multiple channels allows for real-world analysis as implemented in the system with transceiver channels available through SMA and popular backplane connectors. You can use this development kit to perform the following tasks:

  • Evaluate transceiver link performance from 600 Mbps to 12.5 Gbps
  • Generate and check pseudo-random binary sequence (PRBS) patterns via a simple to use GUI (does not require the Quartus® II software)
  • Access advanced equalization to fine tune link settings for optimal bit error ratio (BER)
  • Perform jitter analysis
  • Verify physical medium attachment (PMA) compliance to 10GbE, 10GBASE-KR, PCI Express® (PCIe®)(Gen1, Gen2, and Gen3), Serial RapidIO®, Gigabit Ethernet, 10-Gigabit Ethernet XAUI, Common Electrical I/O (CEI) 6G, CEI-11G, high-definition serial digital interface (HD-SDI), Interlaken, and other major standards
  • Use the built-in high speed backplane connectors to evaluate custom backplane performance and evaluate link BER

Featured device

  • 5SGXEA7N2F40C2N

Configuration status and set-up elements

  • JTAG
  • On-board USB-BlasterTM
  • Fast passive parallel (FPP) configuration via MAX® II device and flash memory
  • Two configuration file storage
  • Temperature measurement circuitry (die and ambient temperature)

Clocks

  • 50 MHz, 125 MHz, programmable oscillators (preset values: 624 MHz, 644.5 MHz, 706.25 MHz, and 875 MHz)
  • SMA connectors for supplying an external differential clock to transceiver reference clock
  • SMA connectors for supplying an external differential clock to the FPGA fabric
  • SMA connectors to output a differential clock from the FPGA's phase-locked loop (PLL) output pin

General user input/output

  • 10-/100-/1000-Mbps Ethernet PHY (RGMII) with RJ-45 (copper) connector
  • 16x2 character LCD
  • One 8-postion dipswitch
  • Eight user LEDs
  • Four user pushbuttons

Memory devices

  • 128-megabyte (MB) sync flash memory (primarily to store FPGA configurations)

High speed serial interfaces

  • Seven full-duplex transceiver channels routed to SMA connectors
    • Short trace routed on a micro-strip
    • Six strip-line channels from the with all the trace lengths are matched across channels
  • 21 full-duplex transceiver channels routed to backplane connector
    • Seven channels to Molex® Impact® connector
    • Seven channels to Amphenol® XCede®
    • Seven channels to footprint of Tyco Strada® Whisper® (connector is not populated)

Power

  • Laptop DC input
  • Voltage margining

Stratix V GX Transceiver Signal Integrity Development Board Block Diagram


Documents

TitleVersionSize(KB)Date AddedDownload
Signal Integrity Development Kit, Stratix V GX Edition User Guide (PDF)11.0.2 2013-01-03
Transceiver Signal Integrity Development Kit, Stratix V GX Edition Reference Manual11.0.2 2013-01-03

CD-ROM

TitleVersionSize(KB)Date AddedDownload
Kit installation (for boards with ES silicon)11.1.2 2013-01-03
Kit installation12.0 2013-01-03

Please note that all the source codes are provided "as is". For further support or modification, please contactTerasic Support and your request will be transferred to Terasic Design Service.
More resources about IP and Dev. Kit are available on Altera User Forums.

  • Altera's Complete Design Suite (download from Altera download center )
    • Quartus II software includes support for Stratix V FPGAs
    • 1-year license included
    • Nios® II Embedded Design Suite
    • MegaCore® intellectual property (IP) library includes PCIe, Triple-Speed Ethernet, Serial Digital Interface (SDI), and DDR3 SDRAM High-Performance Controller MegaCore IP cores
    • IP evaluation available through OpenCore Plus
  • Board Update Portal
    • Featuring Nios II web server and remote system update
  • GUI-based Board Test System
    • Interfaces to PC via JTAG
    • User controllable PMA settings (pre-emphasis, equalization, and so on)
    • Status indication (errors, BER, and so on)
  • Complete documentation
  • User guide
  • Reference manual
  • Board schematics and layout design files

Video: Optimizing 10-Gbps Backplane Performance on Stratix V FPGAs
Watch this video to see how you can use the Transceiver SI Development Kit, Stratix V GX Edition and Transceiver Toolkit in the Quartus II software to evaluate Stratix V FPGA transceiver performance. You'll see a 10GBASE-KR backplane demo, Transceiver Toolkit in action, and the eye opening after the receiver equalization.
