HAN Pilot Platform

°¡    °Ý : °ßÀû¹®ÀÇ
Áß    ·® : 500g

Terasic¡¯s HAN Pilot Platform is a high-performance flagship development kit based on Intel Arria 10 SoC FPGAs. With the goal of ¡°being the pilot platform for HPC, Automotive, and Networking applications (HAN),¡± the board is purpose built for performance-demanding industrial embedded applications.

The Arria 10 SoC on the board features a dual-core ARM Cortex-A9 MPCore Hard Processor System and up to 660K of low-power FPGA logic elements, while providing the reconfigurability and performance of an FPGA and flexibility and ease of development of a CPU. The board itself combines a number of high-end hardware interfaces such as high-capacity and high-bandwidth DDR4 SDRAM (up to 8GB), 10GbE SFP+ and PCIe x4 ports for communication, and USB Type-C and HDMI interfaces for video and data processing, FMC connectors for I/O expansion.

With the rich hardware resource, HAN is the perfect platform for applications such as HPC & Analytics, Intelligent vision & Video processing, Automotive, Test & Measurement and Medical applications.

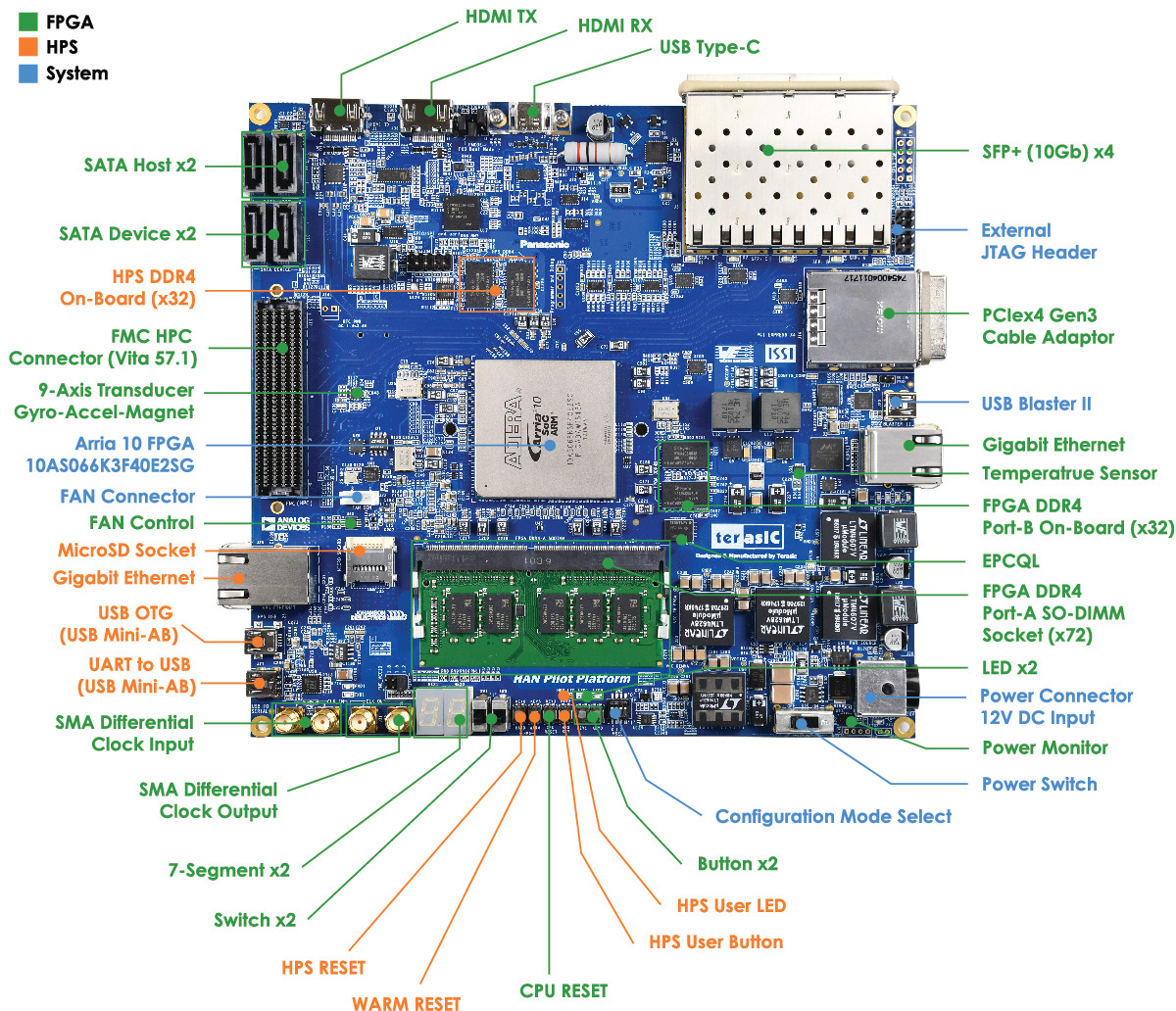

The HAN Pilot Platform has many features that allow users to implement a wide range of high performance designed circuits.The following hardware is provided on the board:

FPGA Device

  • Intel ¢ç Arria10¢ç SoC 10AS066K3F40E2SG device (660K LEs)
  • USB-Blaster II onboard for programming; JTAG Mode
  • Serial configuration device – EPCQL1024
  • One DDR4 SO-DIMM Socket, support ECC
  • On-board 1GB DDR4-2400, 32-bit data width
  • USB Type-C Interface
    • Power Delivery
    • DisplayPort TX/RX with 4 lanes
    • USB 3.0/2.0
  • HDMI TX/RX 2.0 for 4K2K@60- FPGA Transceiver
  • PCIe Cabling Socket at Gen3 x4
  • SFP+ Socket x4, 40Gbps
  • SATA 3.0 Host and SATA Device x2 (SATA Connector x4)
  • One Gigabit Ethernet Port
  • SMA Clock-In and Clock-Out
  • High Pin Count FMC Connector. Support VADJ 1.2V/1.5V/1.8V.
  • Accelerometer, Gyroscope and Magnetometer
  • Temperature Sensor
  • Fan Control
  • LED x2, KEY x2, Switch x2, 7-Segment x2

HPS (Hard Processor System)

  • 1.5GHz Dual-core ARM Cortex-A9 processor
  • Boost Flash Slot:
    • 1024 Mb QSPI Flash
    • Nand Flash
    • MicroSD Socket
  • On-board 1GB DDR4-2400, 32-bit data width
  • 1 Gigabit Ethernet PHY with RJ45 connector
  • USB OTG Port, USB mini-AB connector
  • UART to USB, USB Mini-B connector

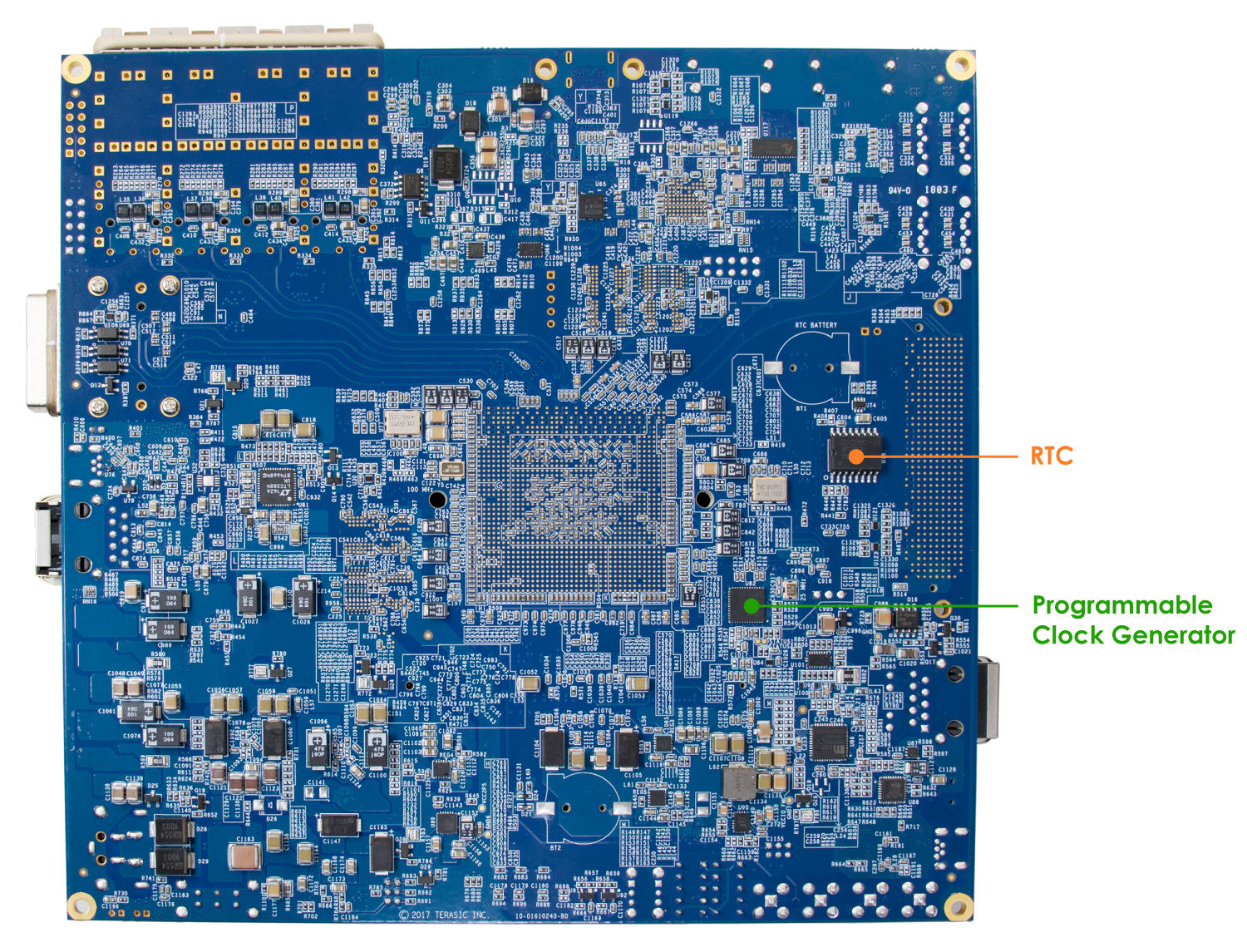

  • RTC
  • One user button and one user LED
  • Warm reset button and cold reset button

Block Diagram:

Memory Sockets

In addition to DDR4 Sodimm, it also compatible with Terasic QDRII+ Memory Module.

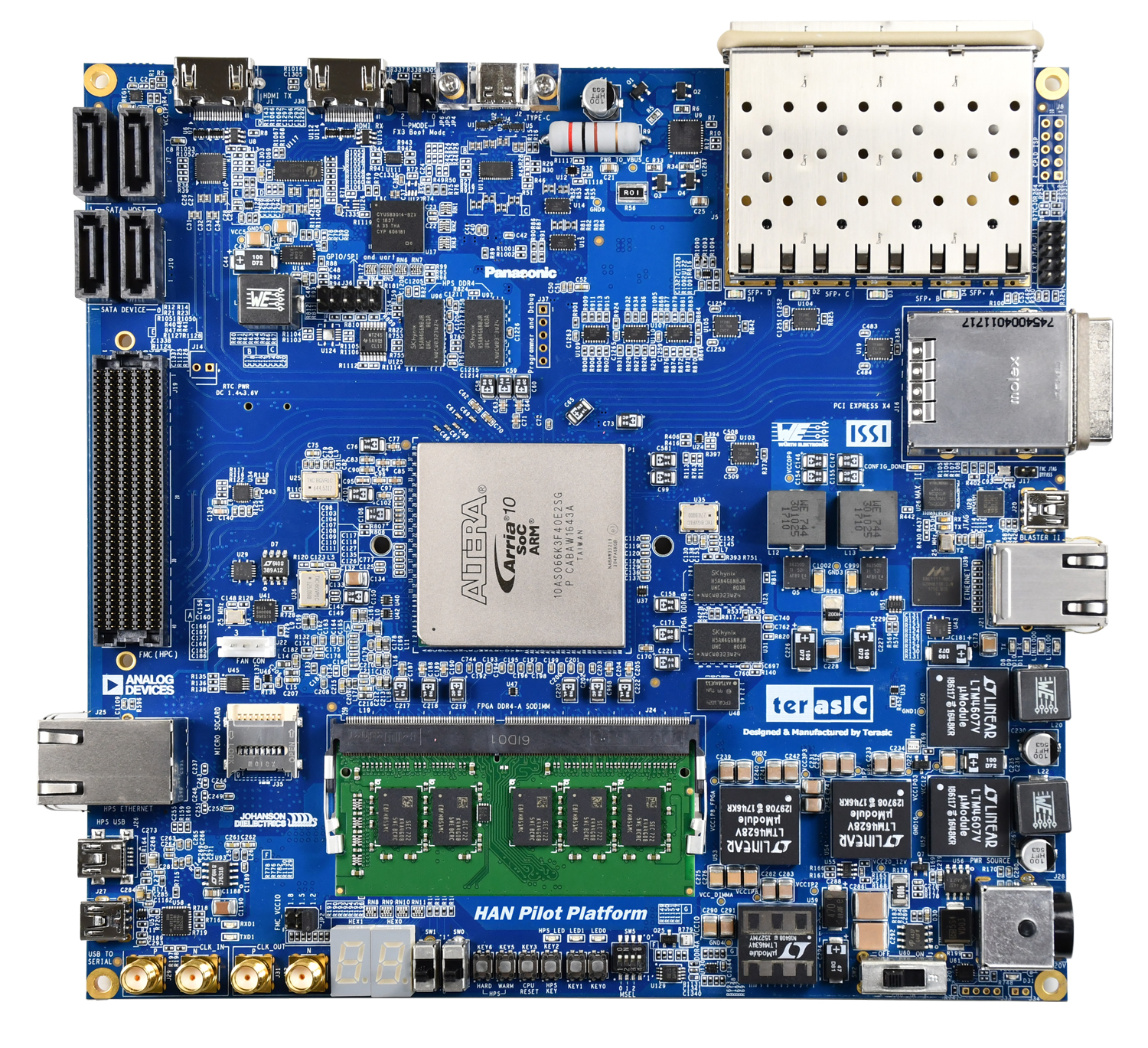

  • DDR4 Sodimm Memory Module Installed



  • QDRII+ Memory Module Installed

FMC Connectivity

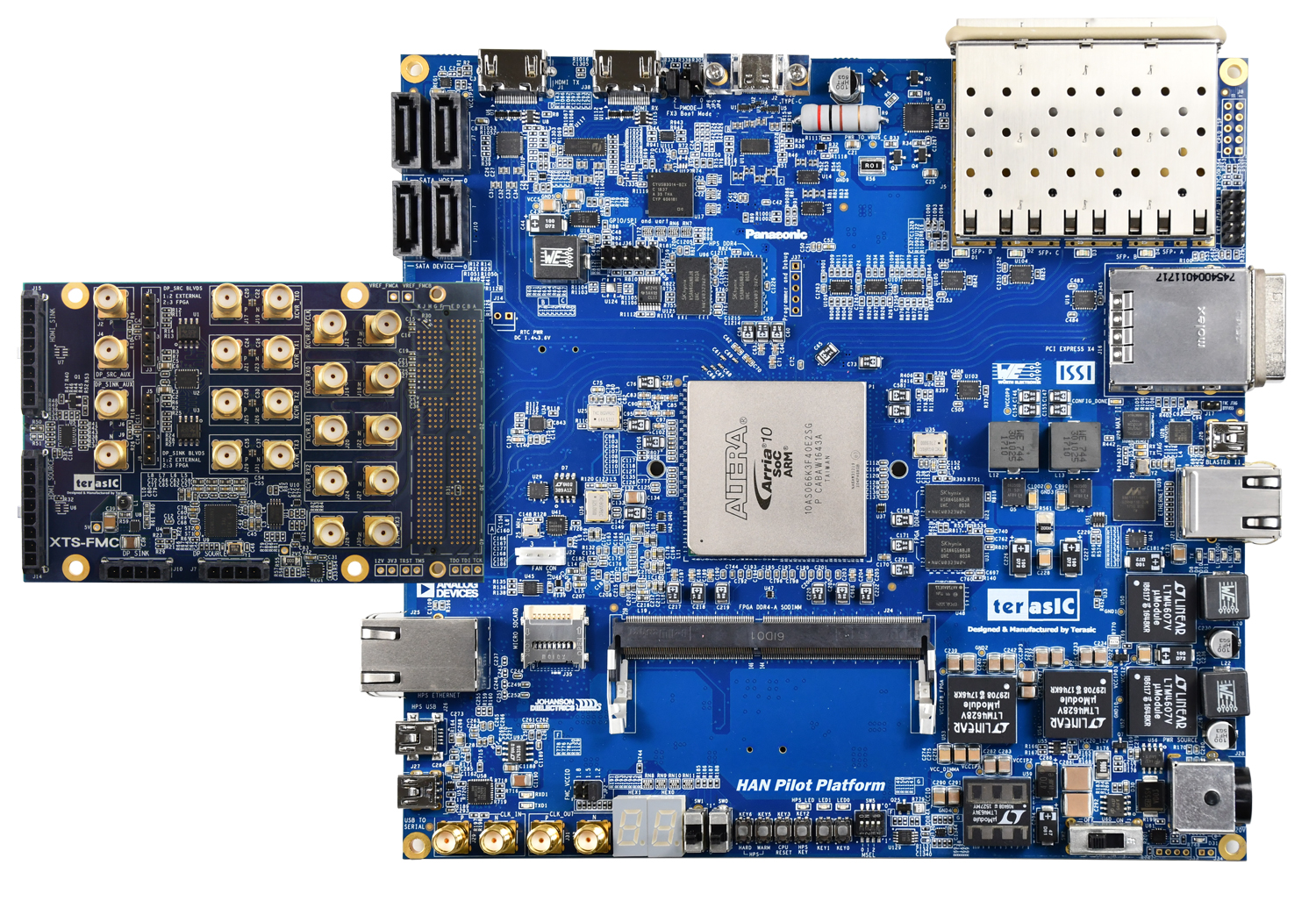

  • Connect XTS-FMC

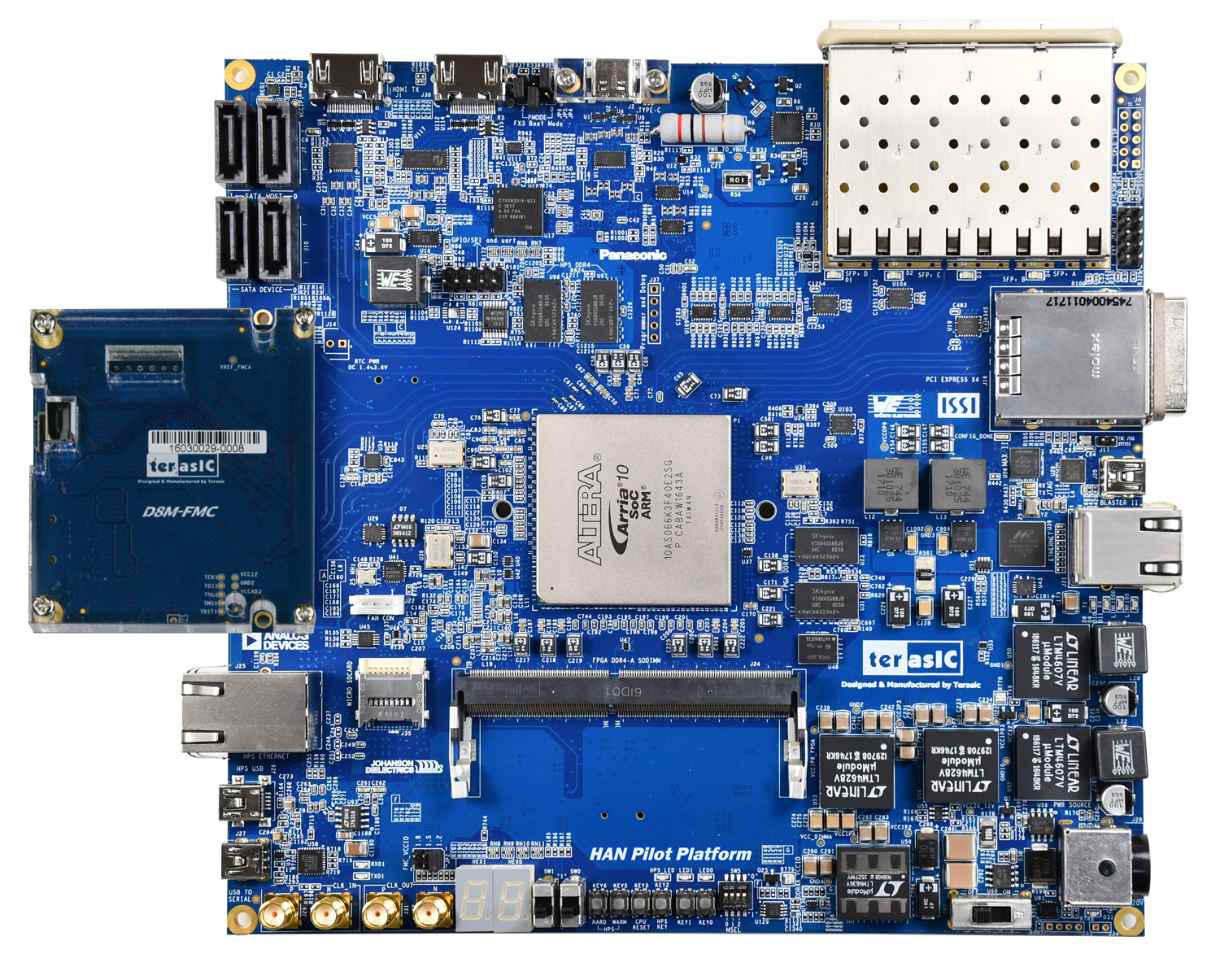

  • Connect D8M-FMC

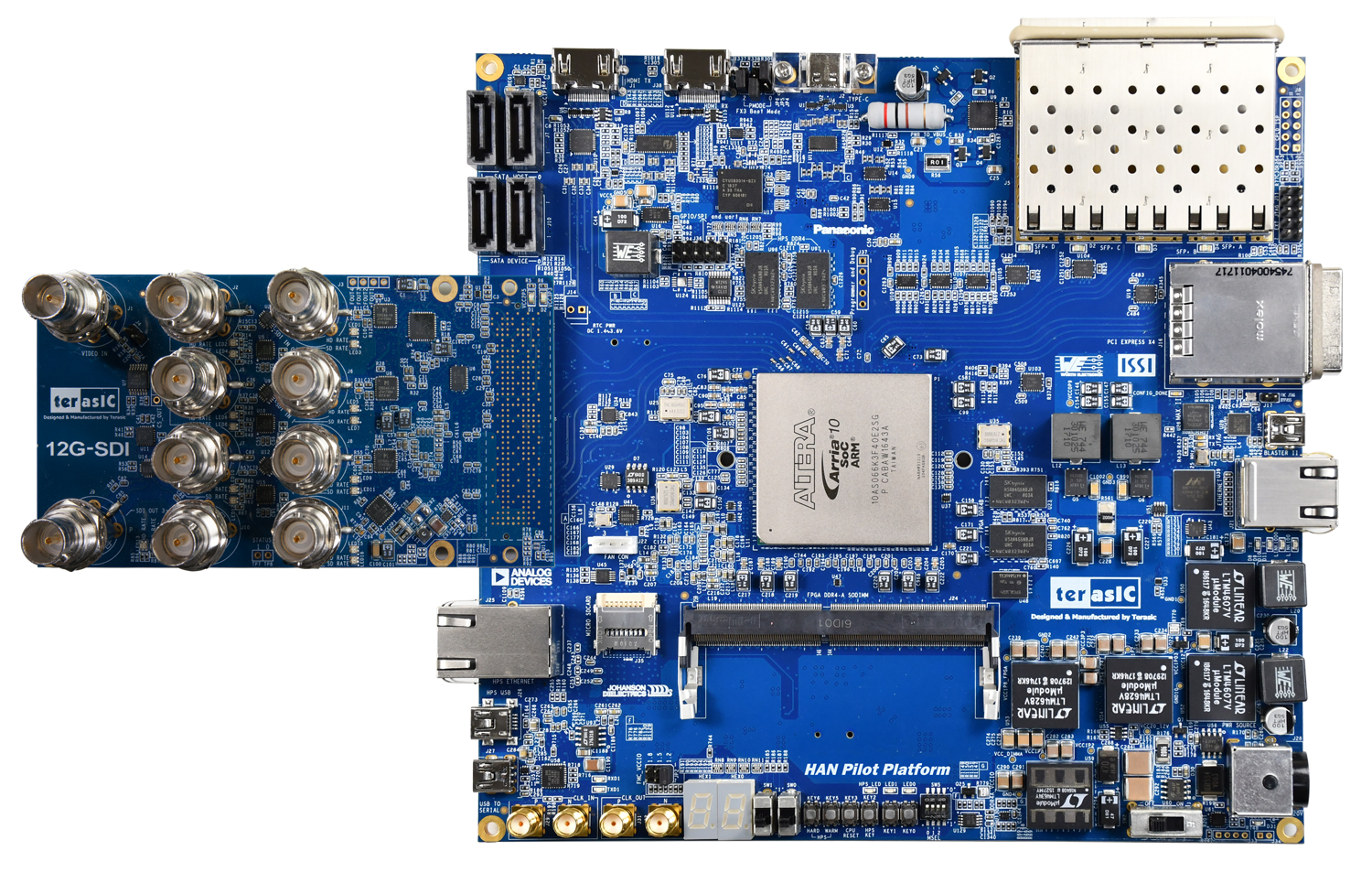

  • Connect 12G SDI-FMC

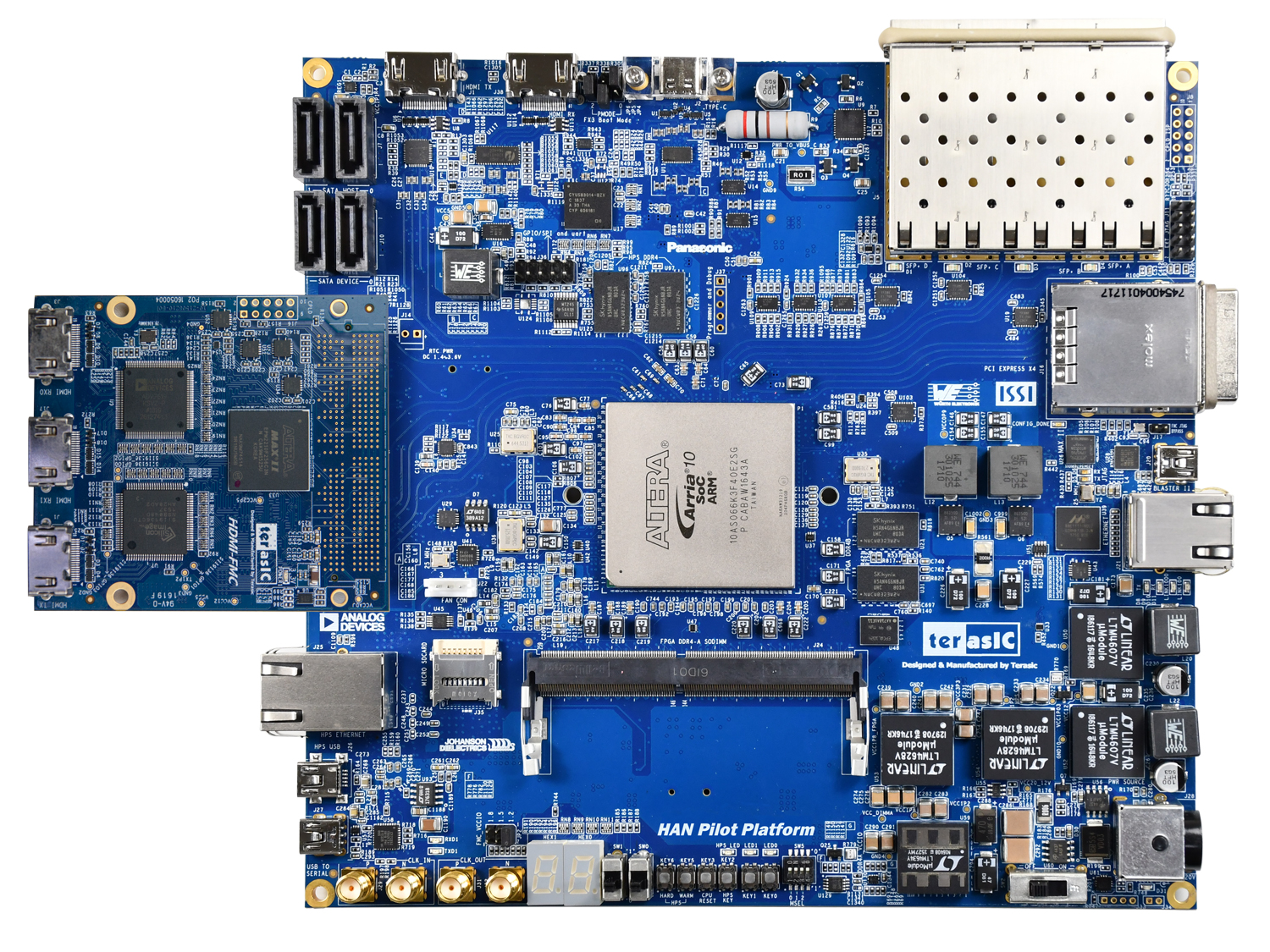

  • Connect HDMI-FMC



  • Connect TI JESD Board







Documents

TitleVersionSize(KB)Date AddedDownload
HAN Pilot Platform Hardware Manual (revD) 1.1 57842019-07-09
HAN Pilot Platform Demonstration Manual (revD) 1.1 67952019-07-09
HAN Pilot Platform Demonstration Manual (revE) 1.0 64622019-07-09
HAN Pilot Platform Hardware Manual (revE) 1.1 57842019-07-09
Differences in HAN Revisions V2 1792019-07-03

CD-ROM

TitleVersionSize(KB)Date AddedDownload
HAN Pilot Platform CD-ROM (revD) 1.0.1  2019-07-09
HAN Pilot Platform CD-ROM (revE) 1.0.2  2019-07-09

Linux BSP (Board Support Package): MicroSD Card Image (revD)

TitleVersionSize(KB)Date AddedDownload
Linux Console (Kernel 4.5) 1.0  2018-12-26
Linux LXDE Desktop (Kernel 4.9.78-ltsi) 1.0  2018-12-26

Linux BSP (Board Support Package): MicroSD Card Image (revE)

TitleVersionSize(KB)Date AddedDownload
Linux Console (Kernel 4.5) 1.0  2019-05-27
Linux LXDE Desktop (Kernel 4.9.78-ltsi) 1.0  2019-05-27

HAN SoC OpenCL BSP 19.1

TitleVersionSize(KB)Date AddedDownload
OpenCL User Manual 1.0 23732019-07-05
OpenCL BSP for Windows 1.0  2019-07-05
OpenCL BSP for Linux 1.0  2019-07-05



  1. HAN Pilot Platform
  2. MicroSD Card (Installed) and Card Reader
  3. Fan (Installed)
  4. Two Type A to Mini-B USB Cables
  5. 12V DC Power Supply (Installed)
  6. AC Power Cord (USA)
  7. One 4GB DDR4 ECC SO-DIMM Module (Installed)
  8. Screws, Copper Stands, and Silicon Footstands
