DE10-Nano Kit

가    격 : 견적문의
중    량 : 200g





The DE10-Nano Development Kit presents a robust hardware design platform built around the Intel System-on-Chip (SoC) FPGA, which combines the latest dual-core Cortex-A9 embedded cores with industry-leading programmable logic for ultimate design flexibility. Users can now leverage the power of tremendous re-configurability paired with a high-performance, low-power processor system. Altera’s SoC integrates an ARM-based hard processor system (HPS) consisting of processor, peripherals and memory interfaces tied seamlessly with the FPGA fabric using a high-bandwidth interconnect backbone. The DE10-Nano development board is equipped with high-speed DDR3 memory, analog to digital capabilities, Ethernet networking, and much more that promise many exciting applications.

The DE10-Nano Development Kit contains all the tools needed to use the board in conjunction with a computer that runs the Microsoft Windows XP or later.



The DE10-Nano board has many features that allow users to implement a wide range of designed circuits, from simple circuits to various multimedia projects.

The following hardware is provided on the board:

FPGA Device

  • Intel Cyclone® V SE 5CSEBA6U23I7 device (110K LEs)
  • Serial configuration device – EPCS128
  • USB-Blaster II onboard for programming; JTAG Mode
  • HDMI TX, compatible with DVI 1.0 and HDCP v1.4
  • 2 push-buttons
  • 4 slide switches
  • 8 green user LEDs
  • Three 50MHz clock sources from the clock generator
  • Two 40-pin expansion headers
  • One Arduino expansion header (Uno R3 compatibility), can be connected with Arduino shields
  • One 10-pin Analog input expansion header (shared with Arduino Analog input)
  • A/D converter, 4-pin SPI interface with FPGA

HPS (Hard Processor System)

  • 800MHz Dual-core ARM Cortex-A9 processor
  • 1GB DDR3 SDRAM (32-bit data bus)
  • 1 Gigabit Ethernet PHY with RJ45 connector
  • USB OTG Port, USB Micro-AB connector
  • Micro SD card socket
  • Accelerometer (I2C interface + interrupt)
  • UART to USB, USB Mini-B connector
  • Warm reset button and cold reset button
  • One user button and one user LED
  • LTC 2x7 expansion header

Block Diagram of the DE10-Nano Board



Connectivity

  • Connect Arduino





  • Connect LTC2607 (AD/DA Daugher Card)

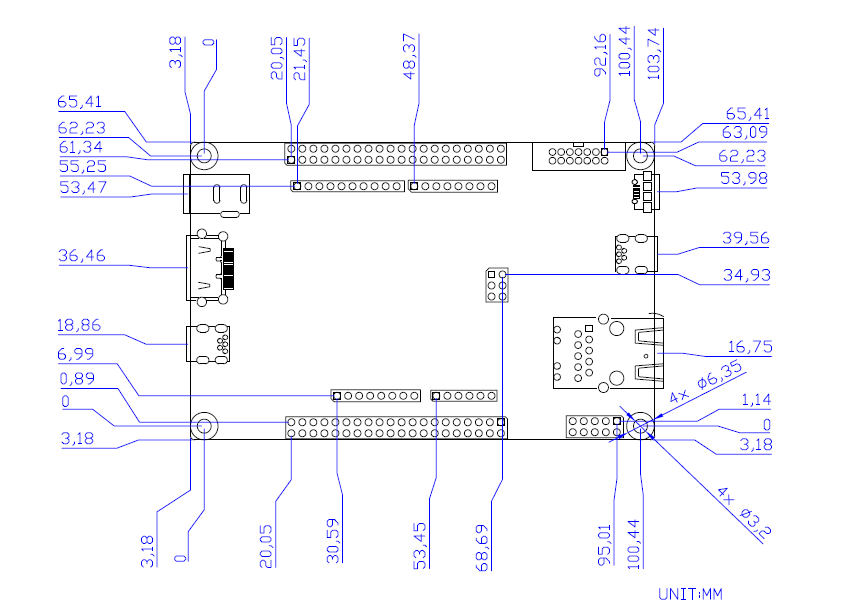

  • Size:68.6x107mm (below picuture will updated later)








Documents

TitleVersionSize(KB)Date AddedDownload
DE10-Nano User Manual 1.5 81862017-06-01
Learning Roadmap 1.0 6352017-03-23

CD-ROM

TitleVersionSize(KB)Date AddedDownload
DE10-Nano CD-ROM 1.2.0  2017-06-01
Quartus Download 16.0  2016-12-22

Daughtger Card Demonstrations

TitleVersionSize(KB)Date AddedDownload
RFS 1.0.0  2017-06-22
D8M 2017-06-01
SMK 2017-02-24
Arduino Shield 2017-02-23
LT24 2017-02-23
MTL2 2017-02-23

Linux BSP (Board Support Package): MicroSD Card Image

TitleVersionSize(KB)Date AddedDownload
Linux Console (kernel 4.5) 1.2  2017-06-26
Linux Xfce Desktop (kernel 4.1.33-ltsi-altera) 1.0  2017-04-11
Linux LXDE Desktop (kernel 4.5) 1.1  2017-04-10

BSP(Board Support Package) for Intel FPGA SDK OpenCL 16.1

TitleVersionSize(KB)Date AddedDownload
DE10-Nano OpenCL BSP (.zip) 1.0  2017-05-05
DE10-Nano OpenCL BSP (.tar.gz) 1.0  2017-05-05
DE10-Nano OpenCL User Manual 1.0 21712017-05-04

3D-Printer-Case

TitleVersionSize(KB)Date AddedDownload
DE10_Nano_Case1172017-05-05












DE10TM -Nano Kit: Traning Materials and Support Packages



DE10-Nano Kit: Linux BSP Demo


DE10TM -Nano Kit: Expansion Card




DE10-Nano Kit: openCL






DE10-Nano 3D-Printer-Case

File format:Stl
